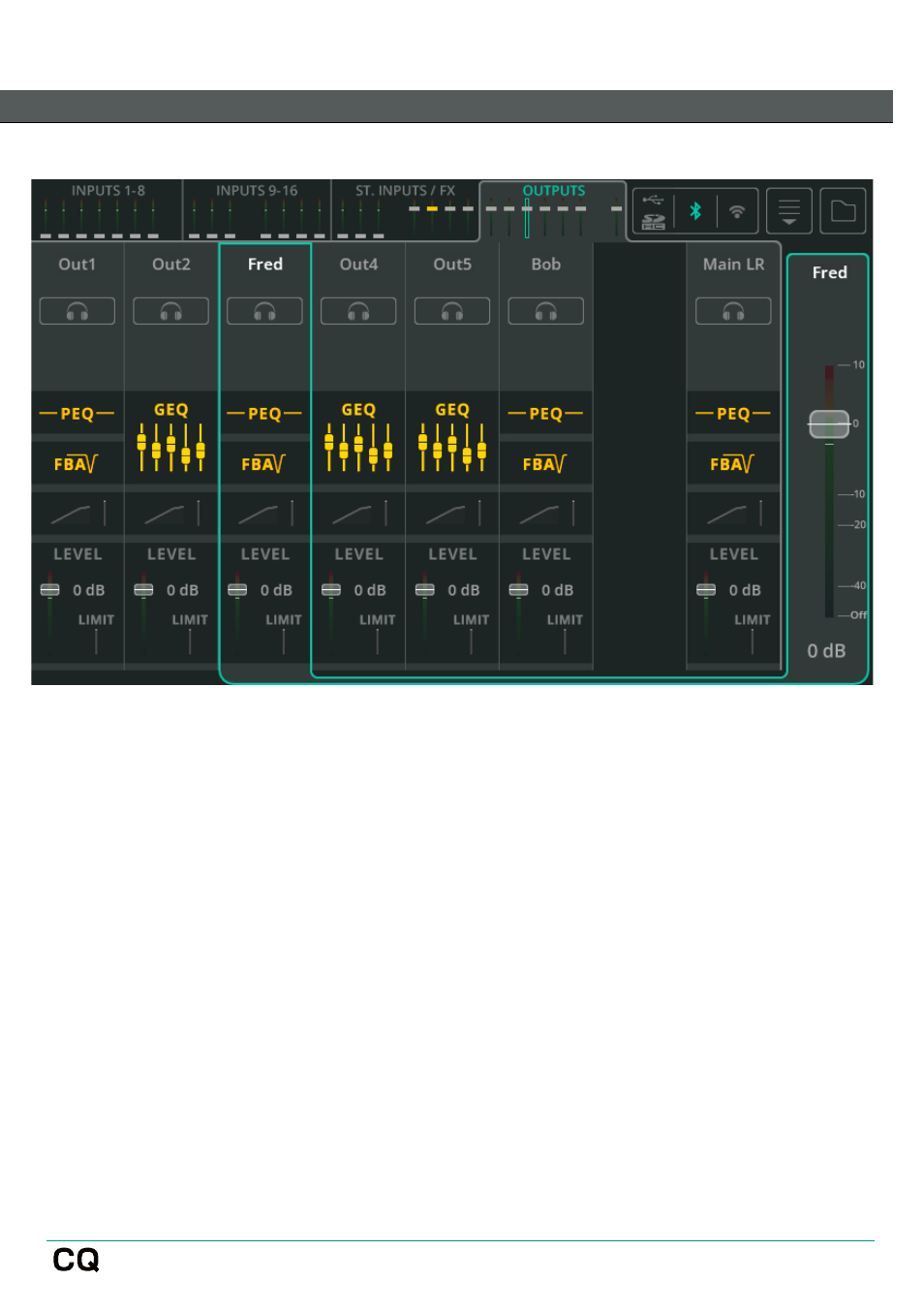

OUTPUTS (bank view)
The Outputs bank includes the six Outputs and Main LR processing channels.
Output processing is slightly different to input processing and also depends on the
EQ Type set per output in the
CONFIG / OUTPUTS screen.
As with Input processing, signal flow runs from top to bottom and touching any
output will select it and show its main fader (Output level) on the right-hand side.
