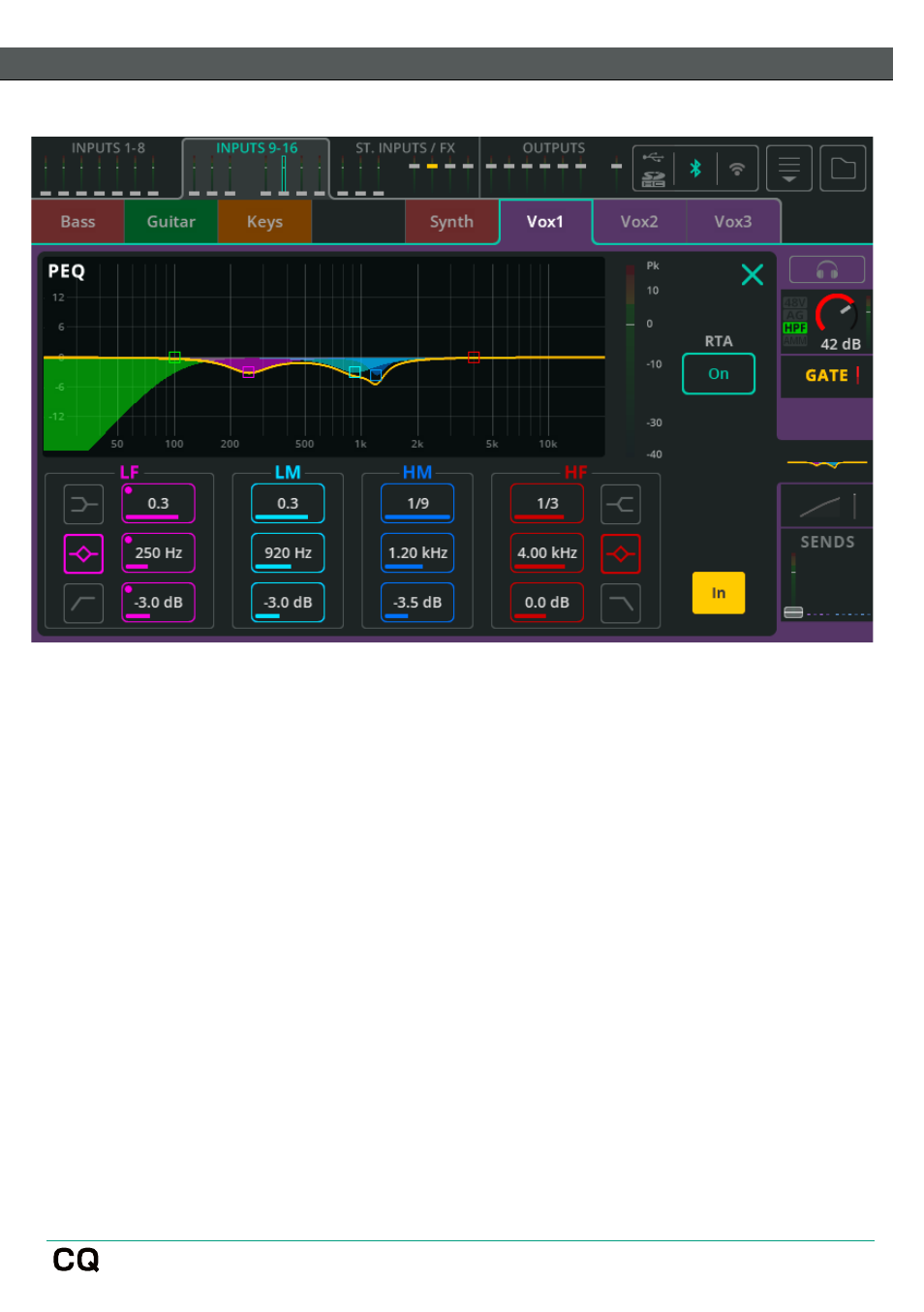

INPUT / PEQ
The 4-band Parametric Equaliser enables adjustments to the tone of the signal by
cutting or boosting around different frequencies.
Type – LF and HF bands include options for Shelf, Bell or HPF/LPF.
Width – Adjust the amount that frequencies around the centre frequency are
affected.
Frequency – Select the centre frequency for adjustment.
Gain – Cut or boost the selected centre frequency by up to +/- 15dB.
RTA – Display Real Time Analyser behind PEQ.
In/Out – Enable or disable the PEQ.
