CONTROL & NETWORK /

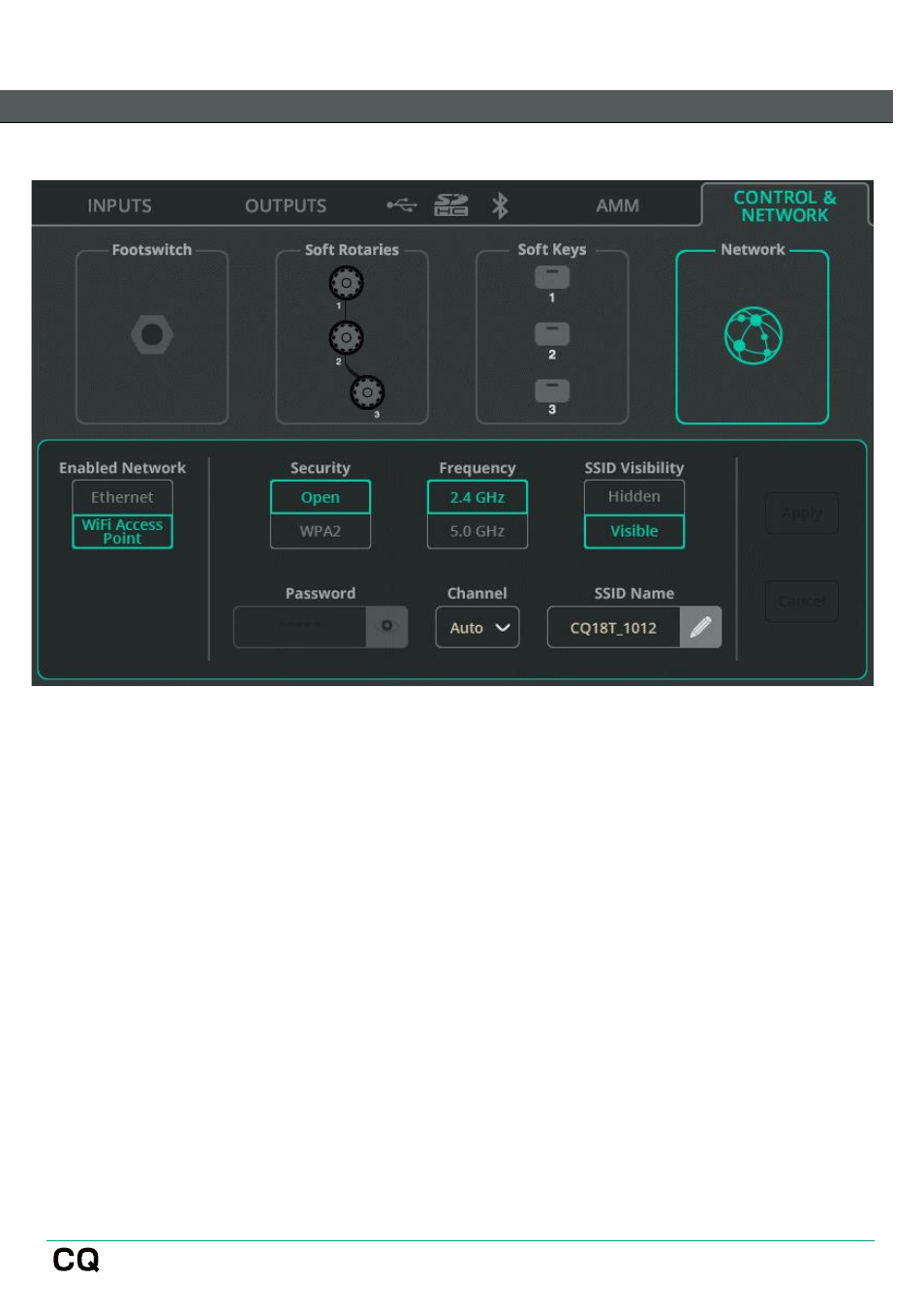

Network (WiFi) (CQ-18T, CQ_20B)
Enabled Network
–
Select
Ethernet
for wired connection through the Network
port. Select
Wi-Fi Access Point
for wireless connection using the integrated
access point of the unit (CQ-18T, CQ-20B).
Security
–
Select between an open access point or a WPA2 password protected
network.
Password
–
When WPA2 is selected, set a password here. The default password is
‘DefaultPassword’
Frequency
–
Choose between use of 2.4GHz or 5GHz frequency bands.
Channel
–
Select a channel (it is recommended to leave Auto set).
SSID Visibility
–
Choose whether the network name is broadcast openly.
SSID Name
–
Assign a custom name for the network. The default name is the CQ
model followed by the last 4 digits of the serial number.
