10. FADER
Sends to Main LR

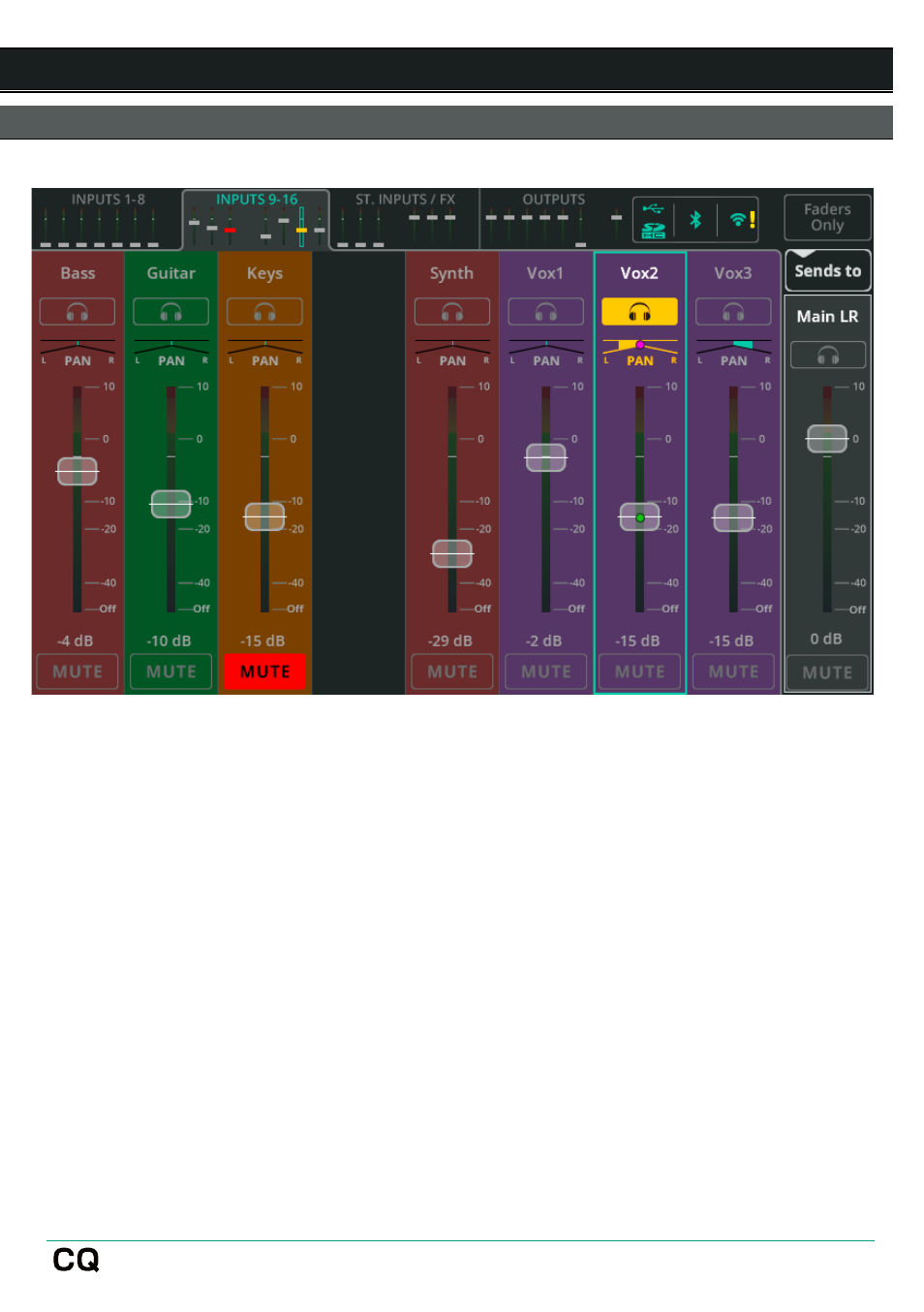

The Fader screen displays up to eight channels at a time. Use the mini fader tabs
at the top (touchscreen) or bottom left (CQ-MixPad) to switch between the 4 banks
of channels. Use the
Faders Only button at the top right to either show channel
Listen, Pan and Mute controls, or longer faders with no controls.
Pan – Position the signal in the stereo image from left to right.
Level – Touch and drag (multiple) faders to adjust signal level or select a fader and
use the Touchscreen rotary to adjust (CQ-12T, CQ-18T).
 Only FX units in shared mode can be ‘Sent to’ MainLR, an Output or another FX Unit.
 Outputs cannot be sent to other Outputs, so their fader always controls their output
level.
Mute – Touch Mute to prevent flow of signal from the channel to any output or FX
unit.
 Muted channels are indicated with a red fader cap on the mini faders at the top
(touchscreen) or bottom left (CQ-MixPad).
