107 User Guide
V1.1.0 Issue 1

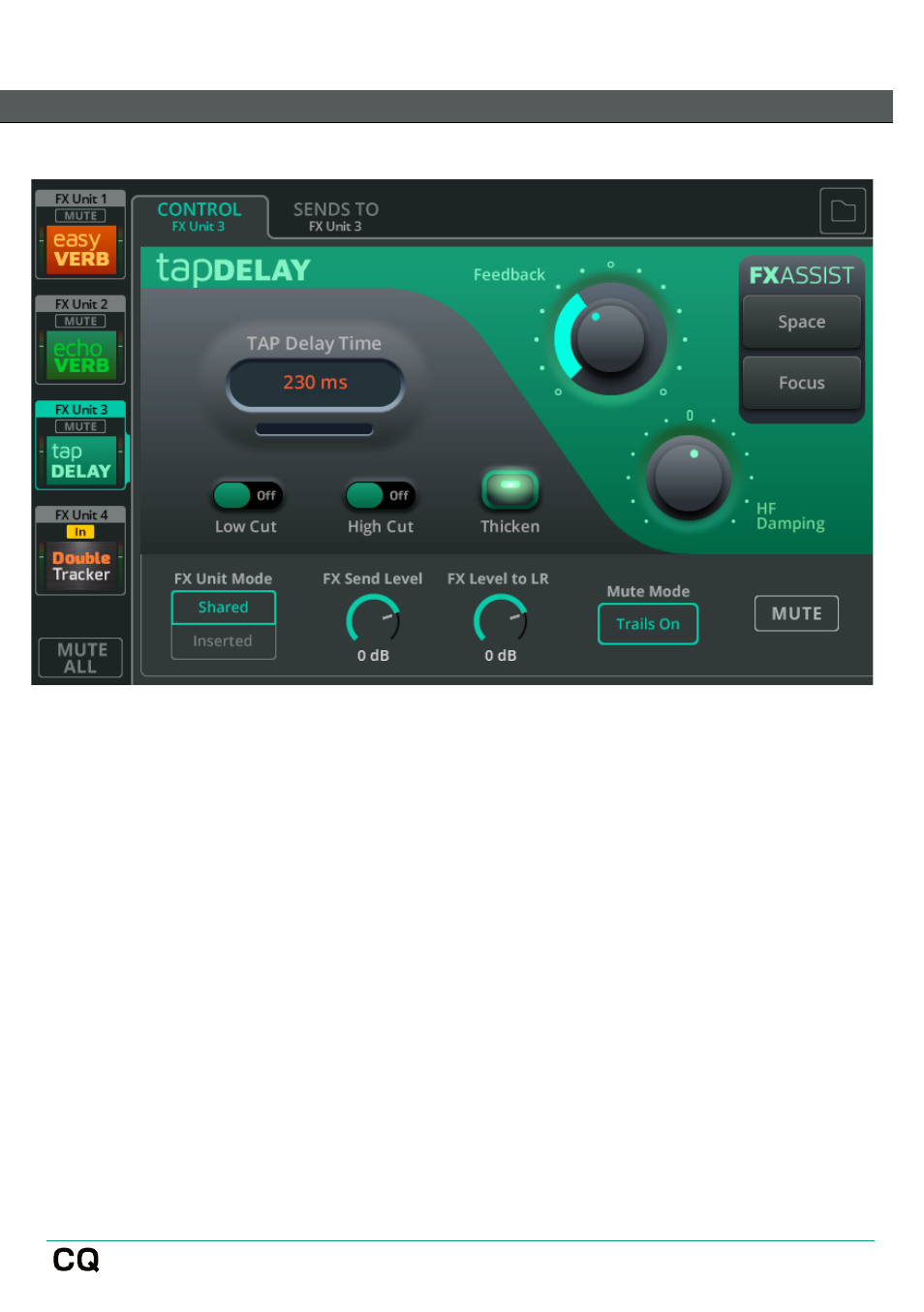

FX Model - Tap Delay
Tap Delay is a single delay which allows the speed of the repeats can be set using
taps on screen or using a Soft Key.
Tap Delay Time – Tap multiple times on the ms value box to set delay time or
select and adjust with the touchscreen rotary (CQ-12T, CQ-18T) or touch and drag
(CQ-MixPad).
Low/High Cut – Cut Low or High frequencies from the sound being repeated.
Thicken – Turn On to make the repeats sound thicker.
Feedback – Adjust the level of the repeats feeding back into the delay.
HF Damping – Adjust the amount of damping on the high frequencies for either a
more digital or more analogue sounding delay.
FX ASSIST - FX Assist looks at the signal passing through the FX Unit and then
makes dynamic adjustments to enhance or improve the sound of the FX. One
option can be selected at any time, or touch/click the selected option to turn FX
Assist Off.
