Page 119: Multitrack
119
User Guide
V1.1.0
Issue 1

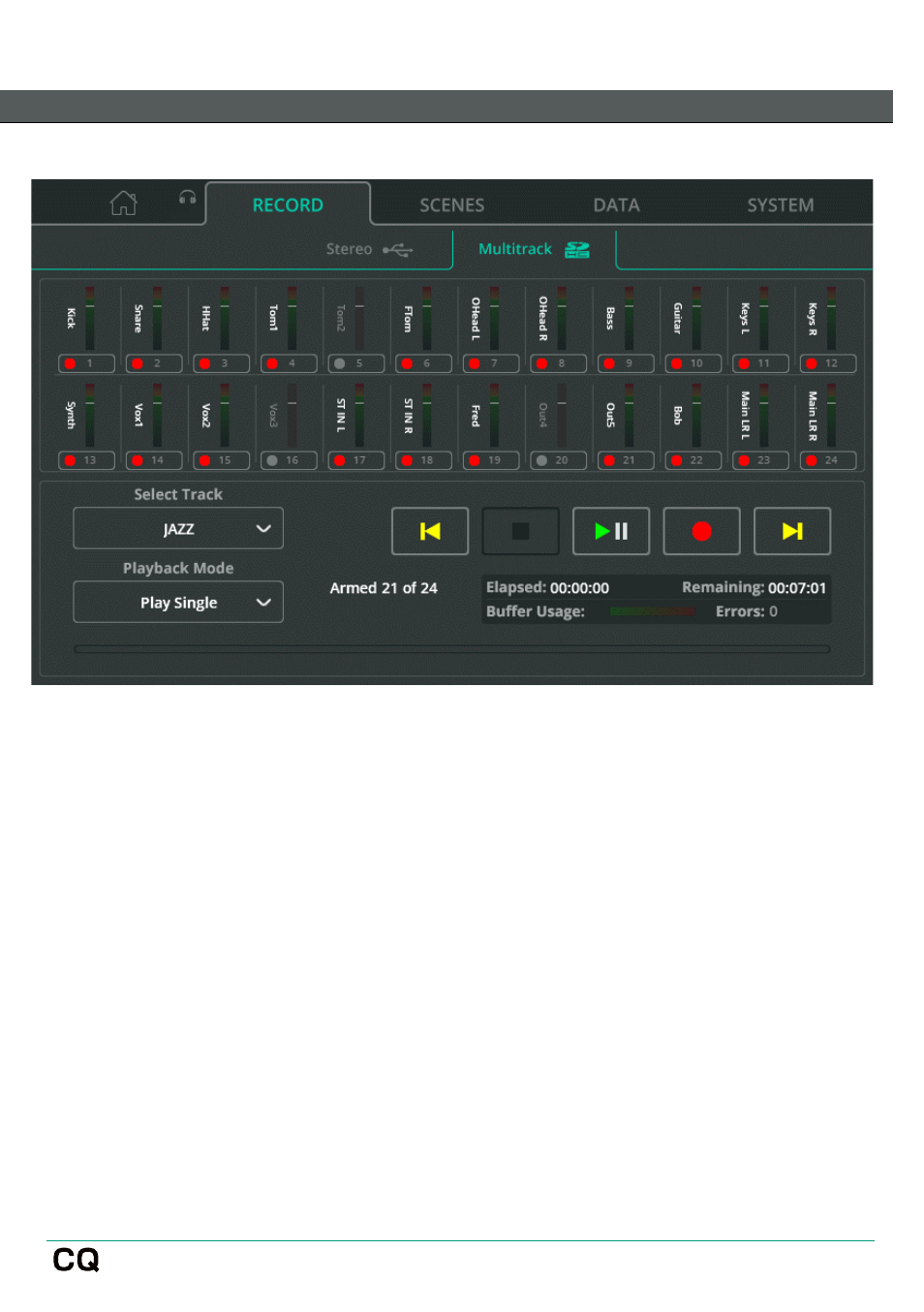

RECORD /
Multitrack
Record or Playback individual signals to and from individual channels using an
SDHC card.
USB-A audio/data and SD recording/playback features utilise the same system
resources and cannot be used at the same time.
Meters switch automatically to show either signal being recorded or played.
Set where input channel signal is recorded from (the tap-off point) and assign the
last pairs of channels to be recorded in the
CONFIG
/
USB/SD/BT
/
USB/SD
screen.
Arm
–
Use the button under each channel meter to choose whether the channel
will be recorded. Armed channels are indicated with a red record symbol. If a
channel is armed but cannot be recorded with the current settings or connected SD
card, this is indicated with an exclamation mark.
Select Track
- Select a multitrack to be played back.
