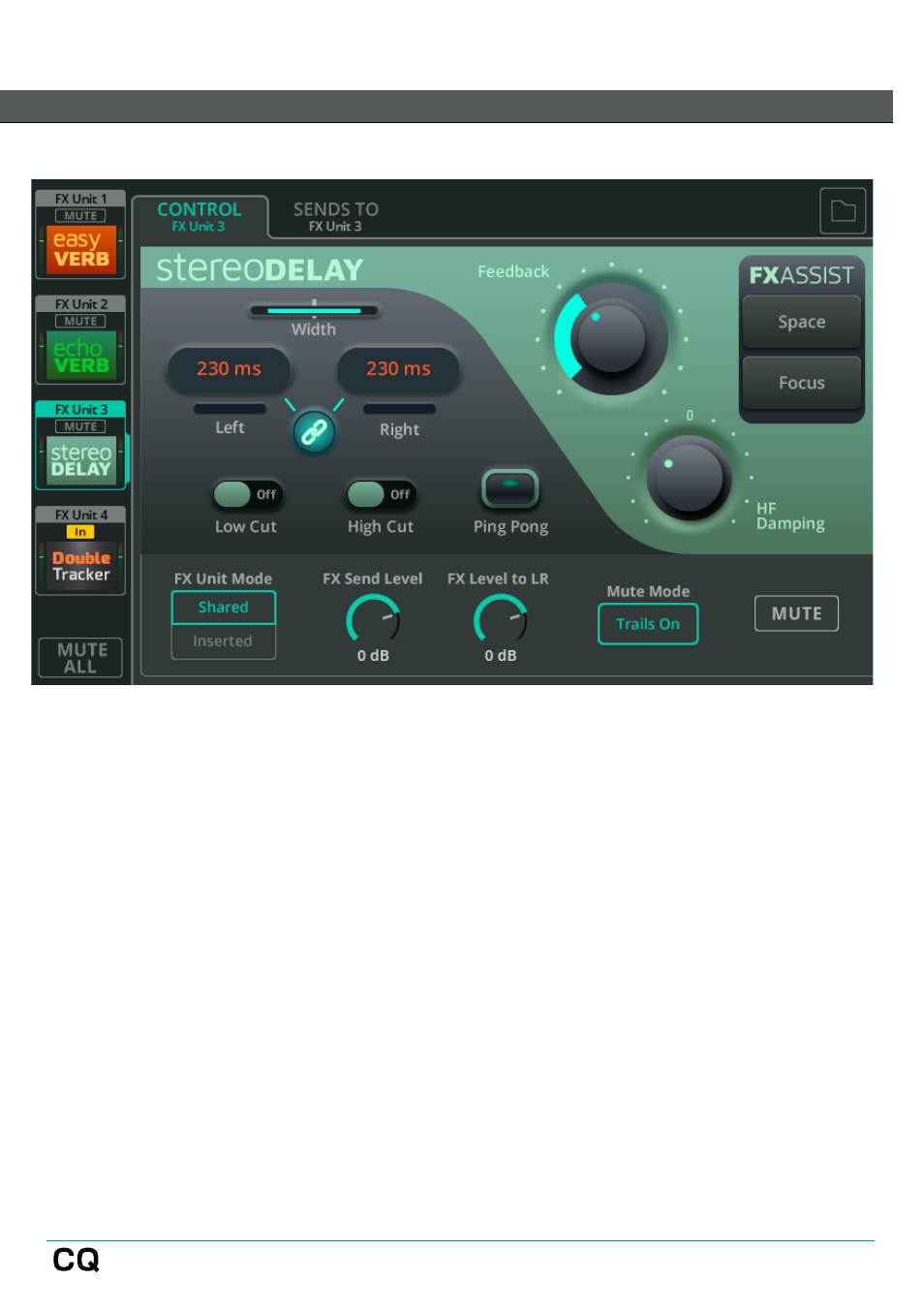

FX Model - Stereo Delay
Stereo Delay includes two tap delays (left and right) where the speed of repeats
can be set independently for each.
Width – Adjust from centre (both delays are heard in the centre) to full width (left
is only heard in the left output and right is only heard in the right output).
 Width has no effect if Stereo Delay is inserted into a mono channel.
Left/Right – Tap multiple times on the ms value box to set delay time or select
and adjust with the touchscreen rotary (CQ-12T, CQ-18T) or touch and drag (CQ-
MixPad).
Link – Link the Left and Right delay times.
Low/High Cut – Cut Low or High frequencies from the sound being repeated.
Ping Pong – Turn On to have the repeats alternate Left/Right.
Feedback – Adjust the level of the repeats feeding back into the delay.
