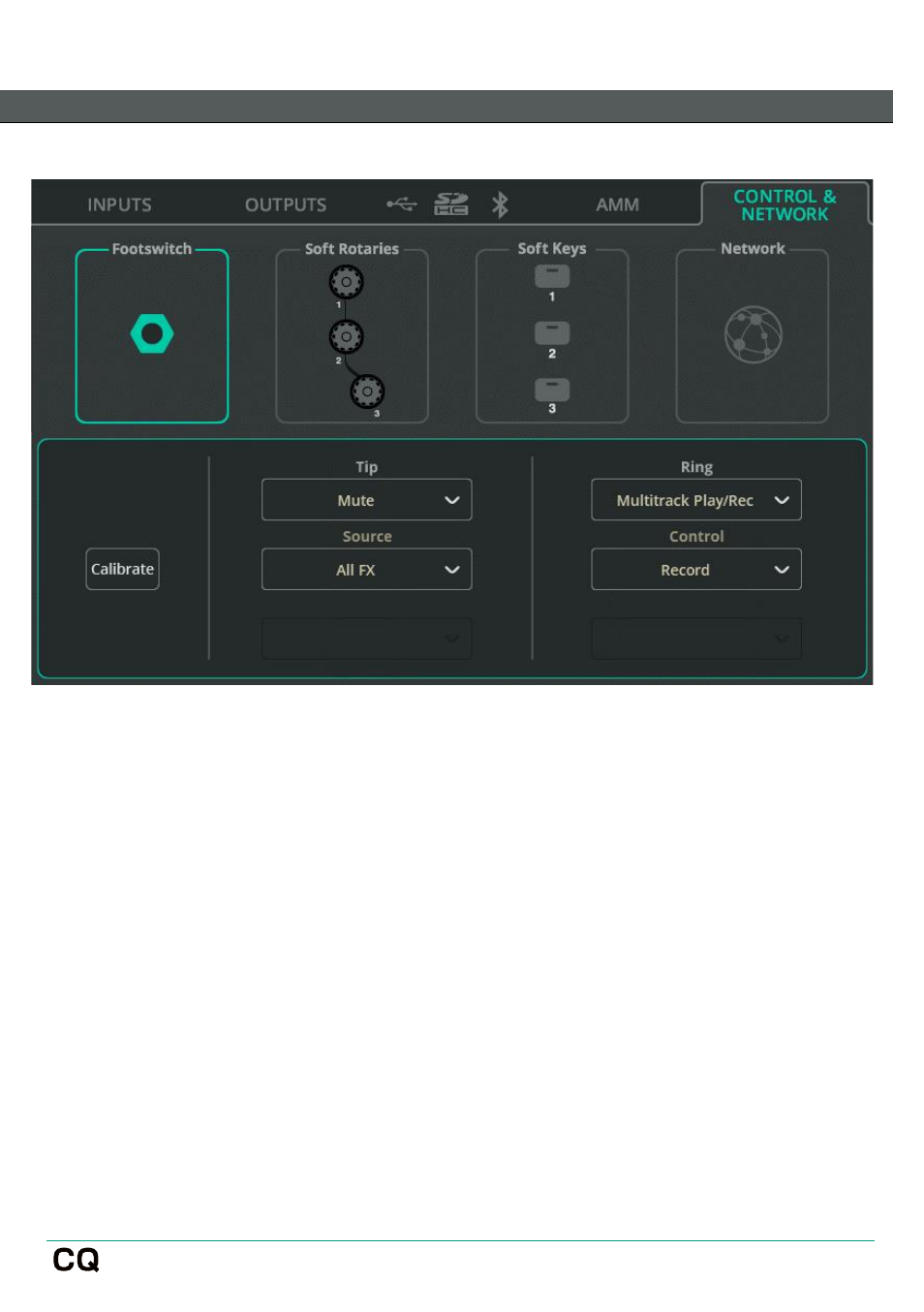

CONTROL & NETWORK / Footswitch
A single footswitch using a TS (Tip, Sleeve) connection or a dual footswitch using a
TRS (Tip, Ring, Sleeve) connection can be used with CQ.
Each switch can be set for independently for Latching, Momentary or Soft Latch
(momentary acting as latching) operation.
Calibrate – Follow steps to detect and set up a connected footswitch.
Tip/Ring – Assign the function to be performed by each footswitch. If using a
single TS footswitch, assign only Tip.
