110 User Guide
V1.1.0 Issue 1

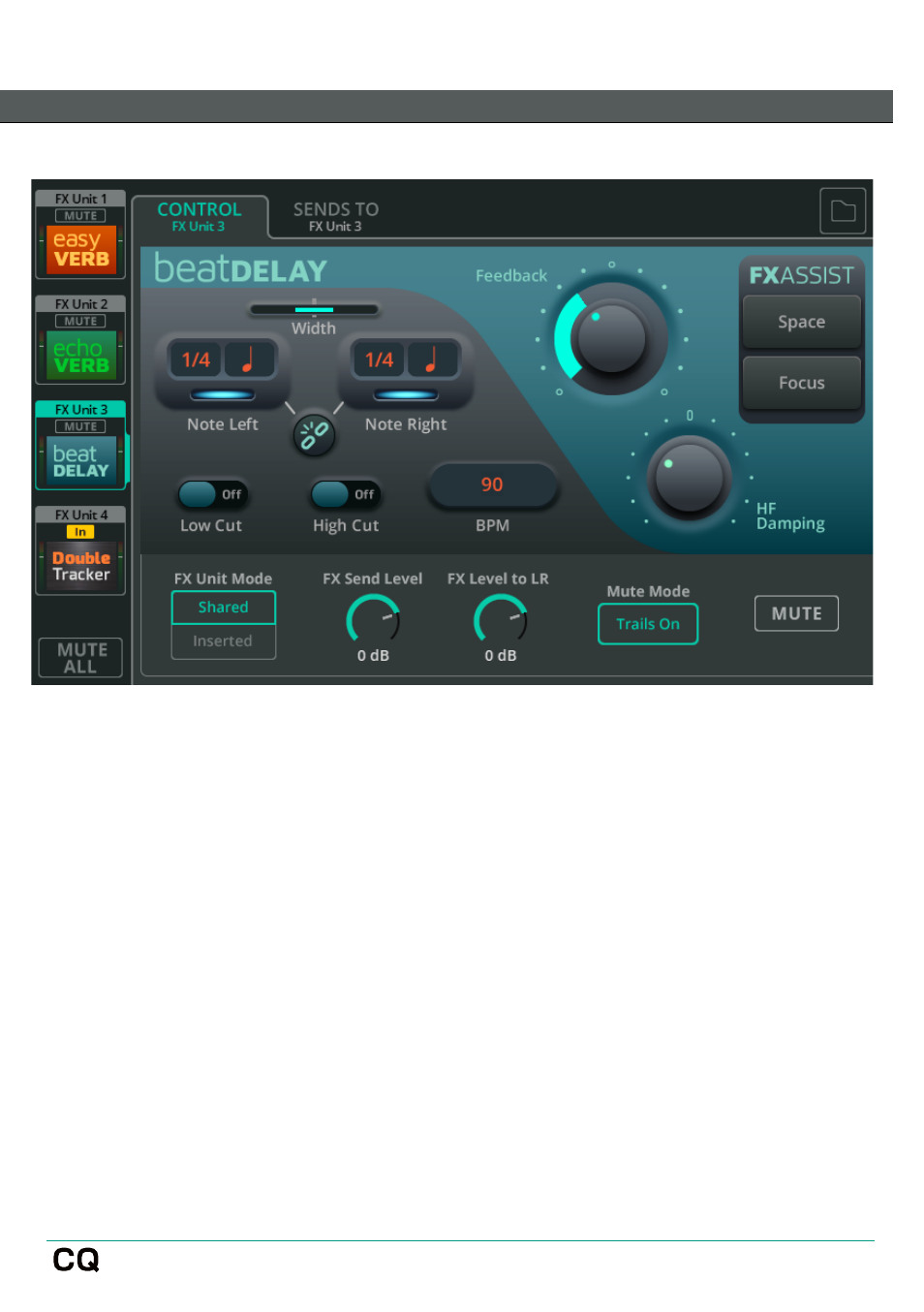

FX Model - Beat Delay
Beat Delay includes two delays (left and right) where the speed of the repeats is
set as a musical division or note value of a BPM value.
Width – Adjust from centre (both delays are heard in the centre) to full width (left
is only heard in the left output and right is only heard in the right output).
 Width has no effect if Beat Delay is inserted into a mono channel.
Note Left/Right – Select and adjust with the touchscreen rotary (CQ-12T, CQ-18T)
or touch and drag (CQ-MixPad) to set division or note value.
Link – Link the Note Left/Right values.
Low/High Cut – Cut Low or High frequencies from the sound being repeated.
BPM – Tap multiple times on the BPM value to set, or select and adjust with the
touchscreen rotary (CQ-12T, CQ-18T) or touch and drag (CQ-MixPad).
Feedback – Adjust the level of the repeats feeding back into the delay.
