CONTROL (Inserted)

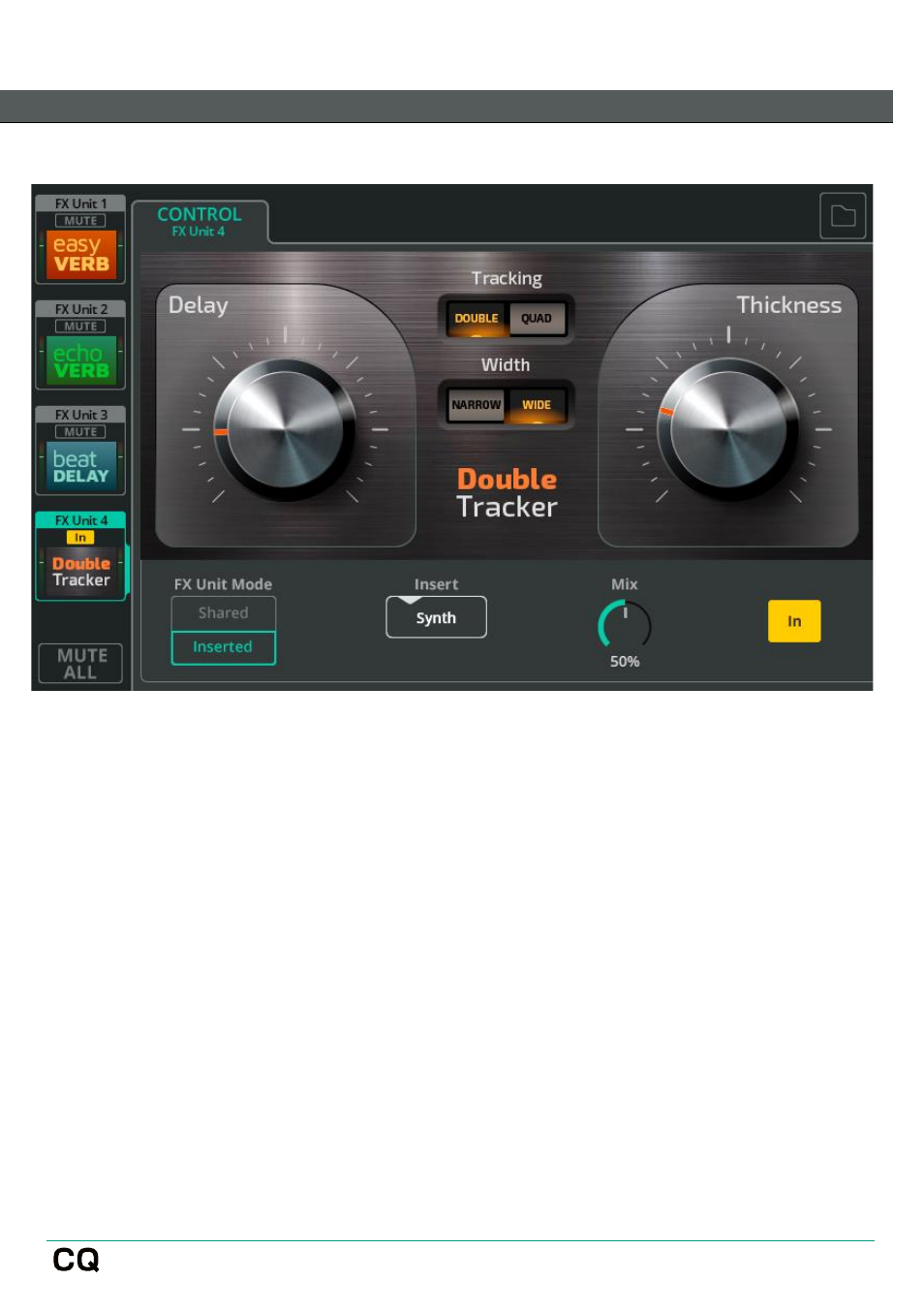

FX Unit Mode – ‘Shared’ allows mult iple channels to send signal to the FX Unit
simultaneously, and for the output of the FX Unit to be sent to Main LR, Outputs or
other FX Units at different levels from either the PROCESSING / SENDS screen, or
in the FADER screen. Shared mode is generally used for reverbs and delays.
‘Inserted’ allows the FX Unit to be used in a single input or output channel, to use a
Chorus on a violin for example.
Insert – Select which channel this FX Unit is being used on.
Mix – Adjust the mix from 0% (Dry signal only, no FX audible) to 100% (Wet signal
only, only FX audible)
In/Out – Enable or disable the insert. Note that signal from the channel will still
arrive at the FX unit input when the FX is switched out, but this is not sent back to
the channel so no FX signal will be heard.
