Galaxy Power System Verification Procedures
Issue 3 January 2008
Galaxy SC Controller Performance Verification Procedures 2 - 3
Illustrations, continued

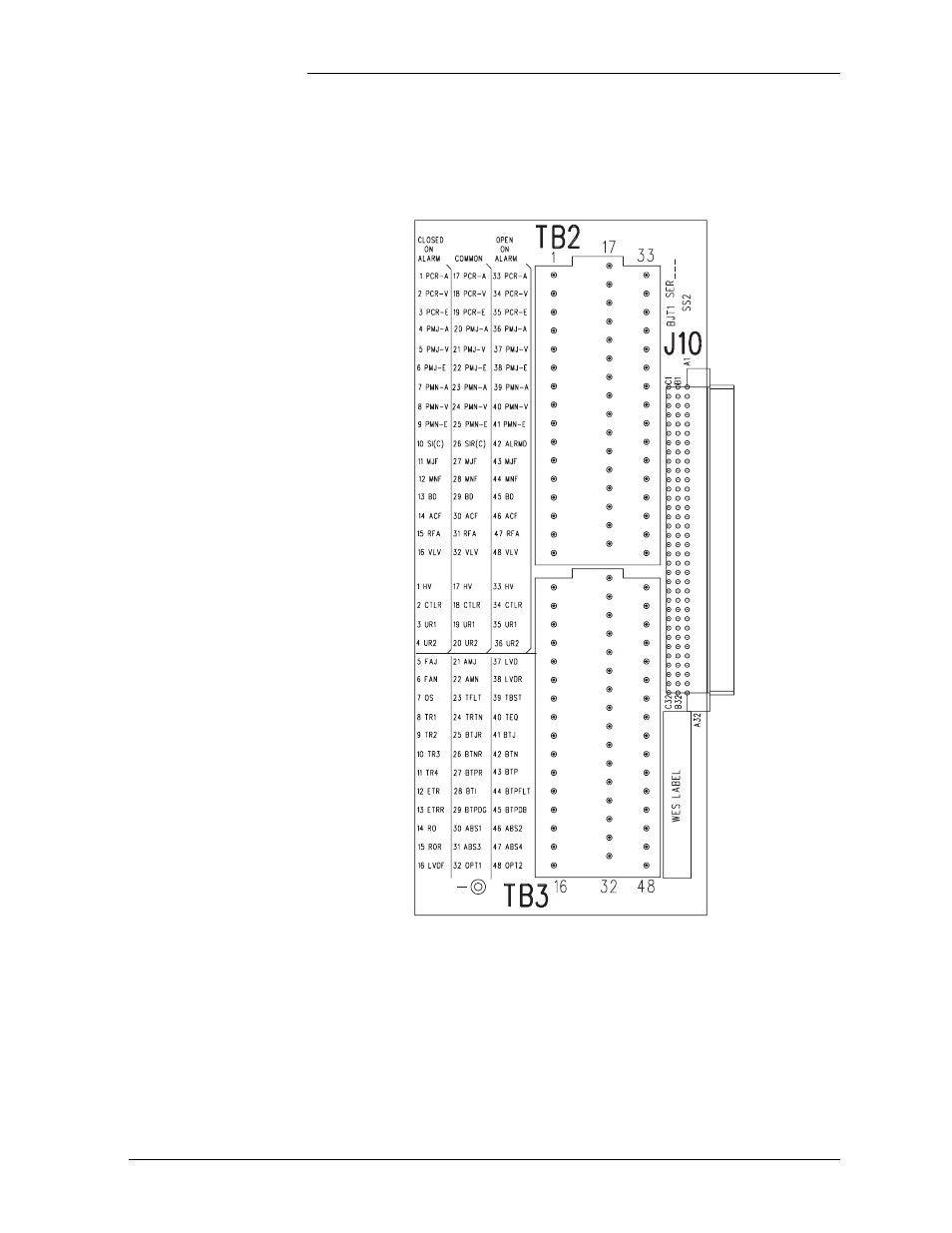

Figure 2-2: TB2 and TB3 of Galaxy SC Controller
1
33
17
16
32 48
FG
BJT Board
(Galaxy SC Controller)
