153

5 Appendix

5.1

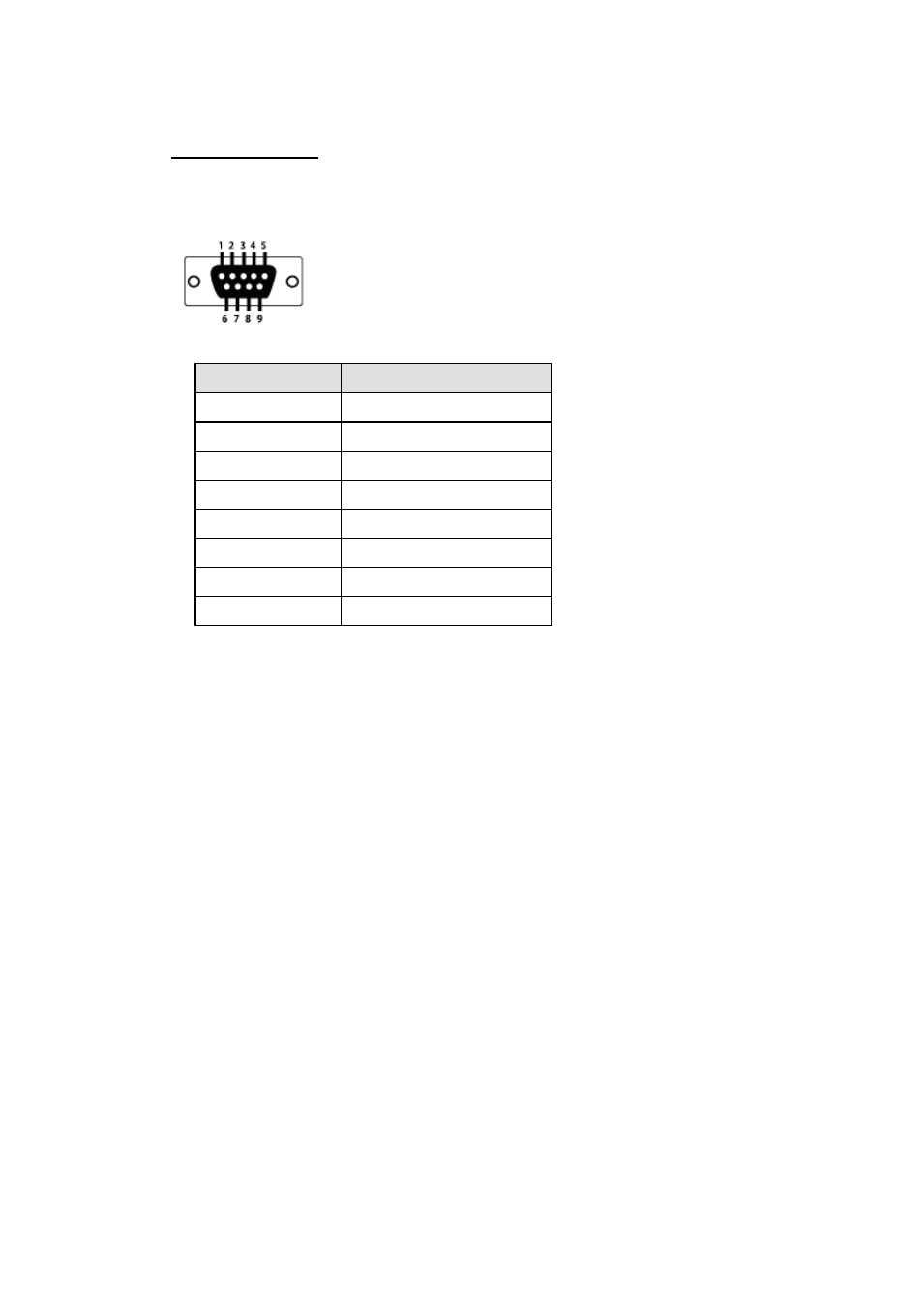

Pin Assignment of the RS-232 Console Cable

The total cable length is 150cm.

RJ45 Pin

DB9 Pin

1

7

2

9

3

4

4

5

5

1

6

3

7

2

8

8
