93
Table 10 Requirements for the user groups of each service
Requirements (right)
Number of groups IP assignment
Service type (below)
VoIP service 2 10.1.1.X, 10.1.2.X
VoD service 3 20.1.1.X, 20.1.2.X, 20.1.3.X
VPN 5
30.1.1.X, 30.1.2.X, 30.1.3.X, 30.1.4.X,
30.1.5.X
Internet 5
40.1.1.X, 40.1.2.X, 40.1.3.X, 40.1.4.X,
40.1.5.X

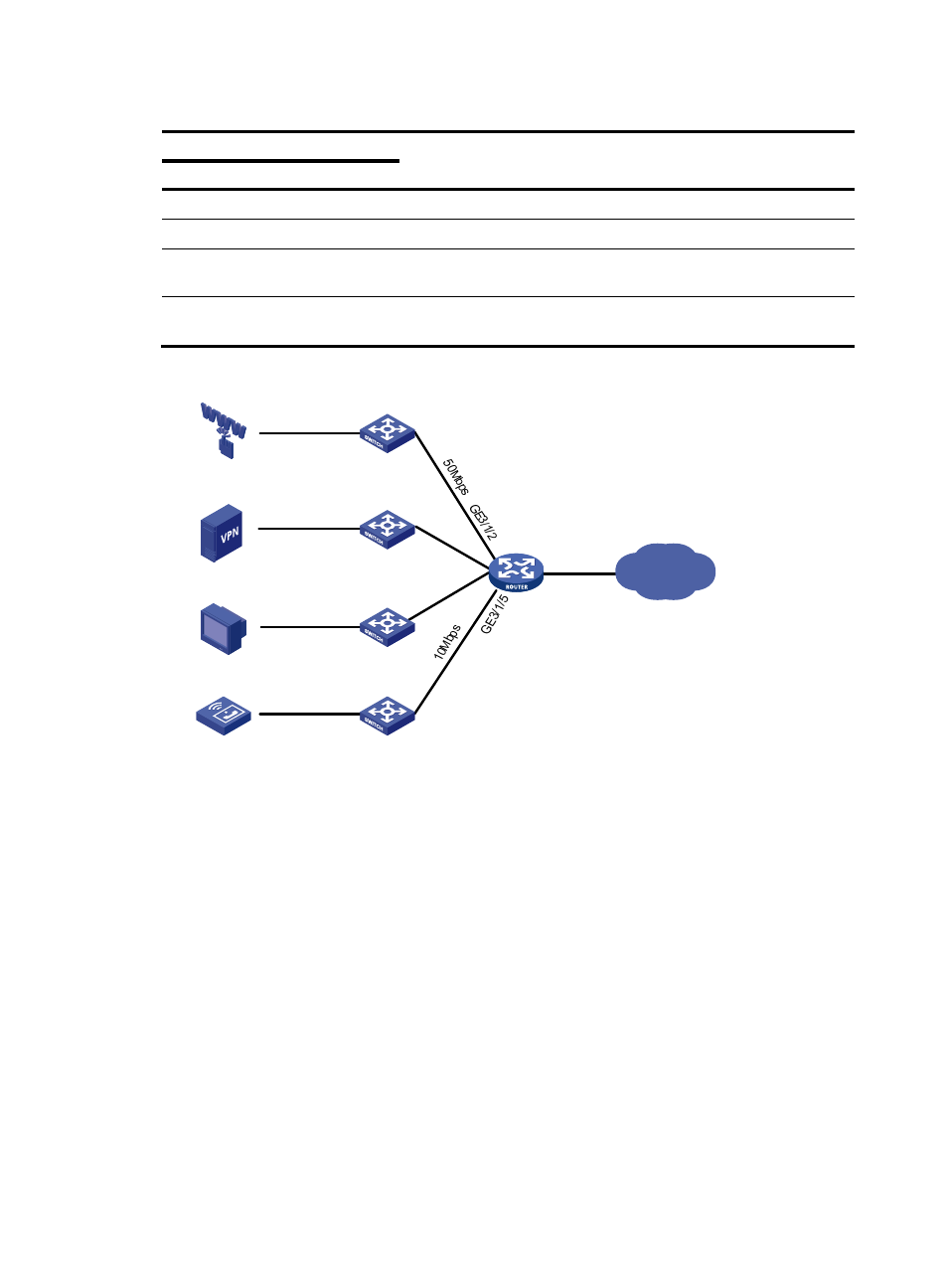

Figure 29 Network diagram
Configuration considerations
• Map VoIP traffic with IP precedence 6 or 7 to the pre-defined forwarding class NC, VoD traffic with
IP precedence 4 or 5 to the pre-defined forwarding class EF, VPN traffic with IP precedence 2 or 3
to the pre-defined forwarding class AF, and Internet traffic with IP precedence 0 or 1 to the
pre-defined forwarding class BE.
• Mark VoIP traffic, VoD traffic, VPN traffic, and Internet traffic with a QoS-local ID by source IP
address, and then map VoIP traffic, VoD traffic, VPN traffic, and Internet traffic each to a forwarding
group by QoS-local ID.
• The user groups of the VoIP, VoD, VPN, and Internet services are each assigned to a distinct
forwarding group by instantiation.
Configuration procedure
1. Map different classes of traffic to forwarding classes.
As all traffic is differentiated by IP precedence, you can use the default UP-to-forwarding class
mapping table for mapping different classes of traffic to the pre-defined forwarding classes. To this
end, you must use the qos trust auto command on the incoming ports to specify the trusted priority
type.
<Router> system-view
WAN
Internet
VPN
VoD
VoIP
Router
Switch
Switch
Switch
Switch
16Mbps
30 Mbps
qos-local-id
301 to 305
qos-local-id
201 to 205
qos- local-id
101 to 103
qos- local-id
1 to 2
20 Mbps
GE
3/1/
3
GE
3/1
/4 Mp-group 2/1/1
