InstallatIon
HyIntensity Fiber Laser Instruction Manual – 807090 Revision 3 2-53
Initial setup
The gas console should be delivered with the proper settings from the factory. However, since a minimum air pressure is
required for several functions, the setting of the air inlet regulator should be checked at initial install.
1. After connecting the air hose, turn on the compressed air supply (see System gas requirements in Section 1 for
pressure and flow rate requirements).
2. Read the set pressure of the air supplied by the regulator to the gas console on the gauge embedded in the
body of the regulator; it should read 0.5 ± 0.05 MPa (75 ± 7.5 psi). If necessary, use the knob on the regulator
to set the regulator outlet pressure to the correct value. Be sure to unlock the knob before adjusting the
pressure and lock it after setting the pressure. Failure to follow this procedure can cause damage to the knob
and the outlet pressure may fluctuate.

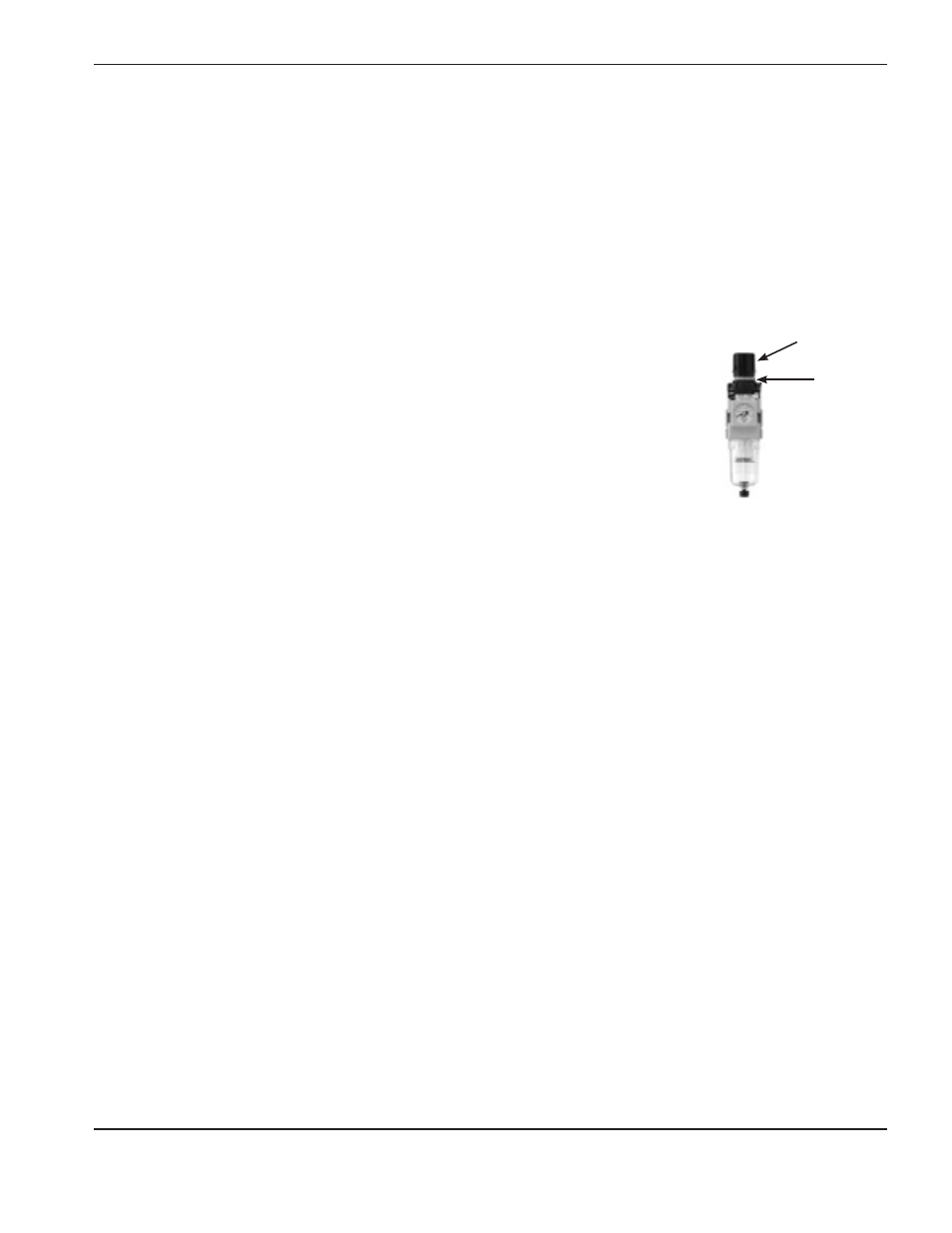

• Pull the pressure regulator knob to unlock it. You can visually verify this by the
“orange mark” that appears in the gap.
• Push the pressure regulator knob to lock it. When the knob is not easily locked,
turn it left and right a little and then push it (when the knob is locked, the “orange
mark” disappears as the gap is closed).
Orange mark
Knob
