InstallatIon
2-54 HyIntensity Fiber Laser Instruction Manual – 807090 Revision 3
CNC setups
This manual will cover the details of connecting a Hypertherm CNC to a HyIntensity fiber laser supply. The details of
connecting a Hypertherm CNC to other components such as I/O modules and drive amplifiers are covered in the CNC
manual and will not be duplicated here. Please refer to the CNC manual for this information.
Note: The HFL030 requires Phoenix software version 9.73 or higher for proper functionality
Communications between the CNC and the fiber laser supply can be established with a Hypernet digital link.
A separate operator panel, provided by the user and located where the operator can access it easily, is required to
provide the functionality of enabling the fiber laser supply. The required components are a keyed interlock, emergency
stop pushbutton (with 2 normally open contacts), a momentary pushbutton (with optional light to indicate that the safety
circuit is activated), and a manual enable to clear laser faults, such as interlock or status faults. See Electrical diagram
for external safety switches earlier in this section.
Hypertherm CNC setup

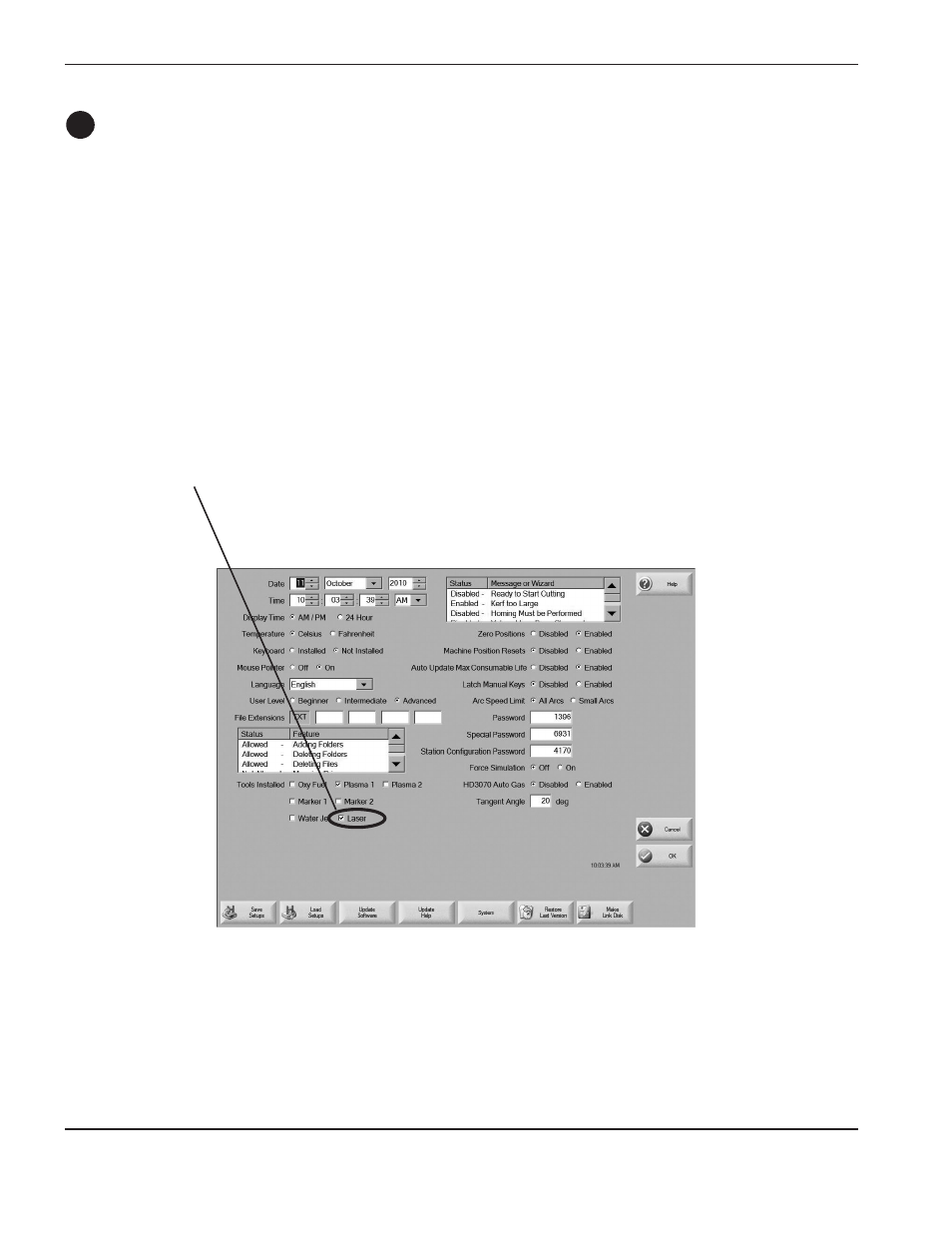

1. Select Laser as one of the Tools Installed on the Special Setups screen and click the OK button.
2. Click on the Machine Setup button on the next screen.
