InstallatIon
2-56
HyIntensity Fiber Laser
Instruction Manual – 807090 Revision 3

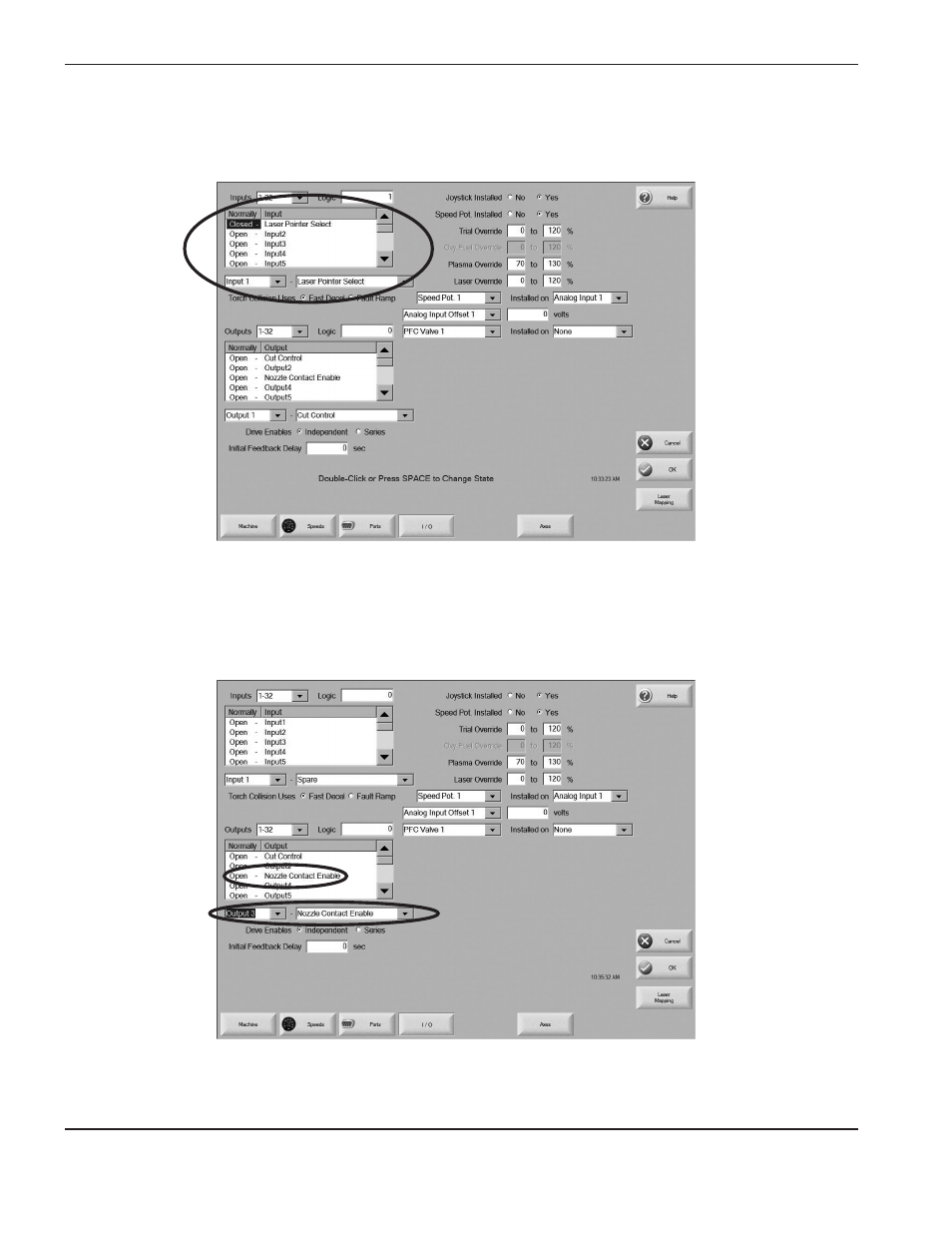

5. On the I/O screen, select the Laser Pointer Select input and set it to Normally Closed. This will turn on the
pointing laser in the HFL. If a customer wants the ability to turn on and off the pointing laser they will need to
wire a switch to the input the Laser Pointer Select is mapped to.
6. On the I/O screen, select the Nozzle Contact Enable output and set it to Normally Open. This is required for the
initial height sense (IHS) to work properly.
Note: If you have more than one tool installed (for example: Laser and Plasma) all of the Nozzle Contact Sense
inputs must be set to Normally Open.
