InstallatIon
2-36 HyIntensity Fiber Laser Instruction Manual – 807090 Revision 3
Coolant hose connections
The color coded water cooling hoses need to run from the back of the fiber laser supply enclosure to the laser head
manifold. Excessive bends or kinks need to be avoided to allow proper cooling water flow. The manifold fittings are
push-to-connect fittings to allow easy installation of the hoses. Make sure the ends of the hoses are cut cleanly to
avoid damaging the o-ring seals inside the fittings. To install the hoses, push them firmly into the fittings and test the
installation with a gentle pull on the hose to make sure it is secured.

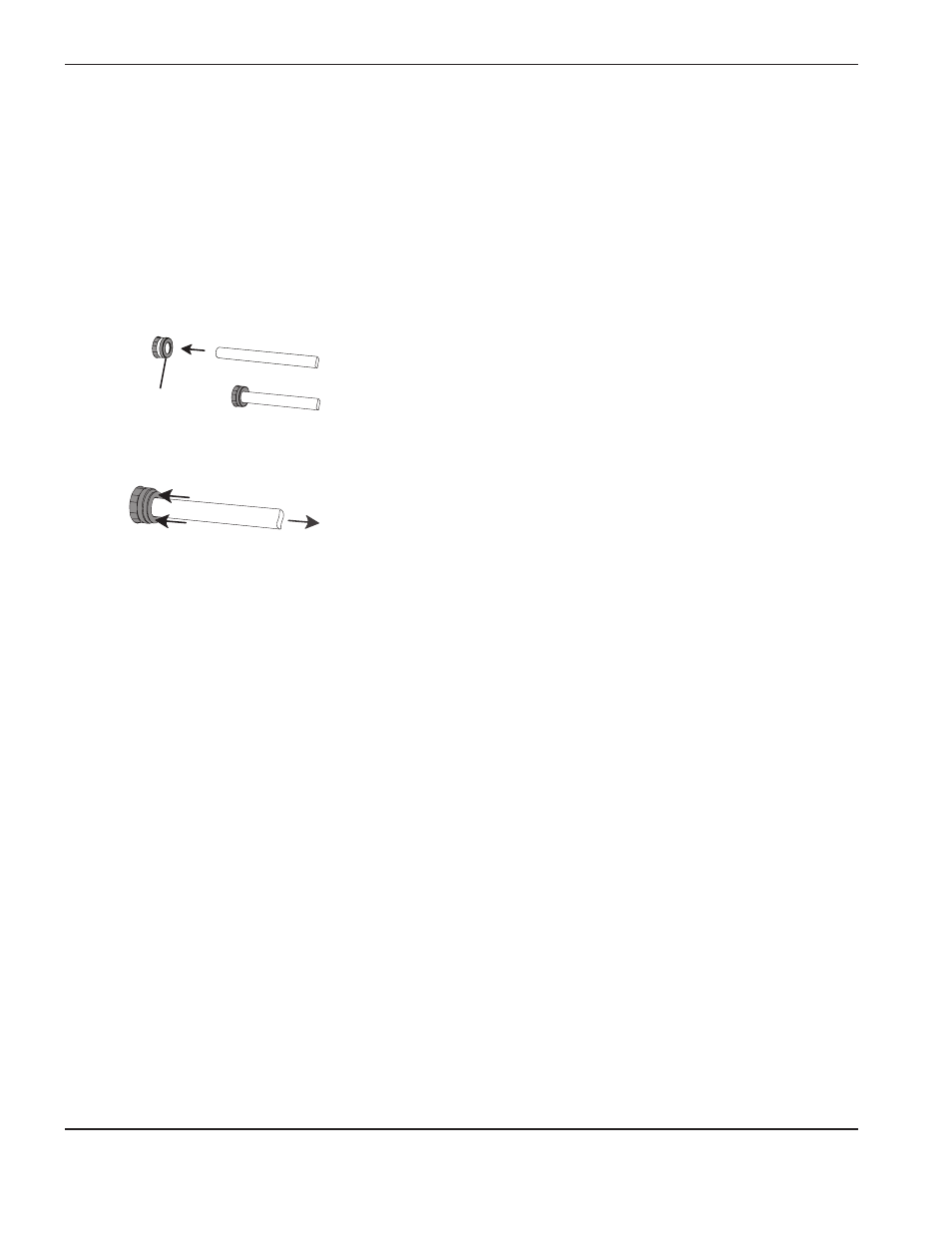

Note: The connectors for the gas and coolant lines are push-to-connect fittings.
To make a connection, push the hose fitting into the appropriate connector until it stops, 12 mm (0.472 in).
To disconnect a fitting, push the connector-collar toward the torch, and pull the hose away from the torch.
Connector-collar
