setup and OperatiOn
3-20 Hypertherm Fiber Laser Instruction Manual – 807090 Revision 3
Setups field value
Combiner Parameters Combiner Quad
Combiner Slope
Combiner Offset
Values are set at
the factory
Hypernet ON when using a Hypertherm CNC
OFF when using any other CNC
The user selects
the value
Comb Test ON = Combiner Stray light Sensor is active
OFF = Combiner Stray light Sensor is not active
The user selects the
value (Default = ON)
MPA Display ON = Gas pressure value is converted to MPA
OFF = Gas pressure value is shown in PSI
The user selects
the value
PWM Display ON = PWM Duty displayed on main screen
OFF = PWM Duty is not displayed
The user selects
the value
+ =

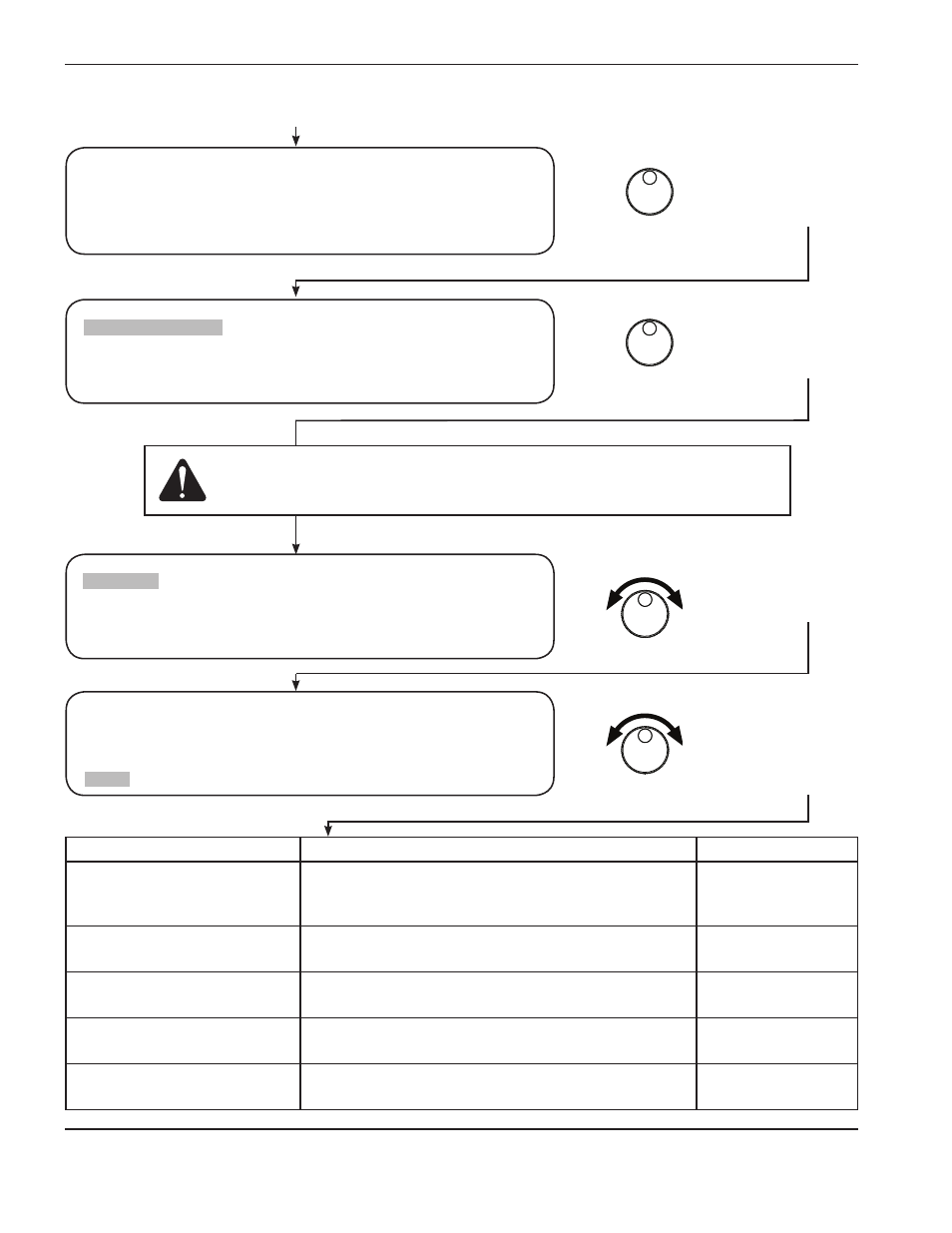

Setups
screen
Continued from the previous page
Push to Select
+ = Combiner
Parameter
screen
Push to Select
Caution: the values on the <Combiner Parameter> screen are set at the
factory and should not be changed without instructions from
the factory or from a Hypertherm technician.
+ =
<Back>
+ = Navigate to other
setup fields and set
parameters to the
values in the table
<Combiner Parameters>
Hypernet
OFF MPA Display OFF
Comb Test ON PWM Display OFF
<back>
Comb Quad x.x
Comb Slope x.x
Comb Offset x.x
<back>
<Combiner Parameters>
Hypernet
OFF MPA Display OFF
Comb Test ON PWM Display OFF
<back>
Password 15
Press Select to accept new values
Timeout in 5 seconds
