setup and OperatiOn
3-30 Hypertherm Fiber Laser Instruction Manual – 807090 Revision 3
2 seconds
2 seconds
minimum
Pulse laser enable (CNC input)
2 seconds
Pulse laser enabled (CNC
output)
Pulse laser (input)
Hypertherm CNC interface

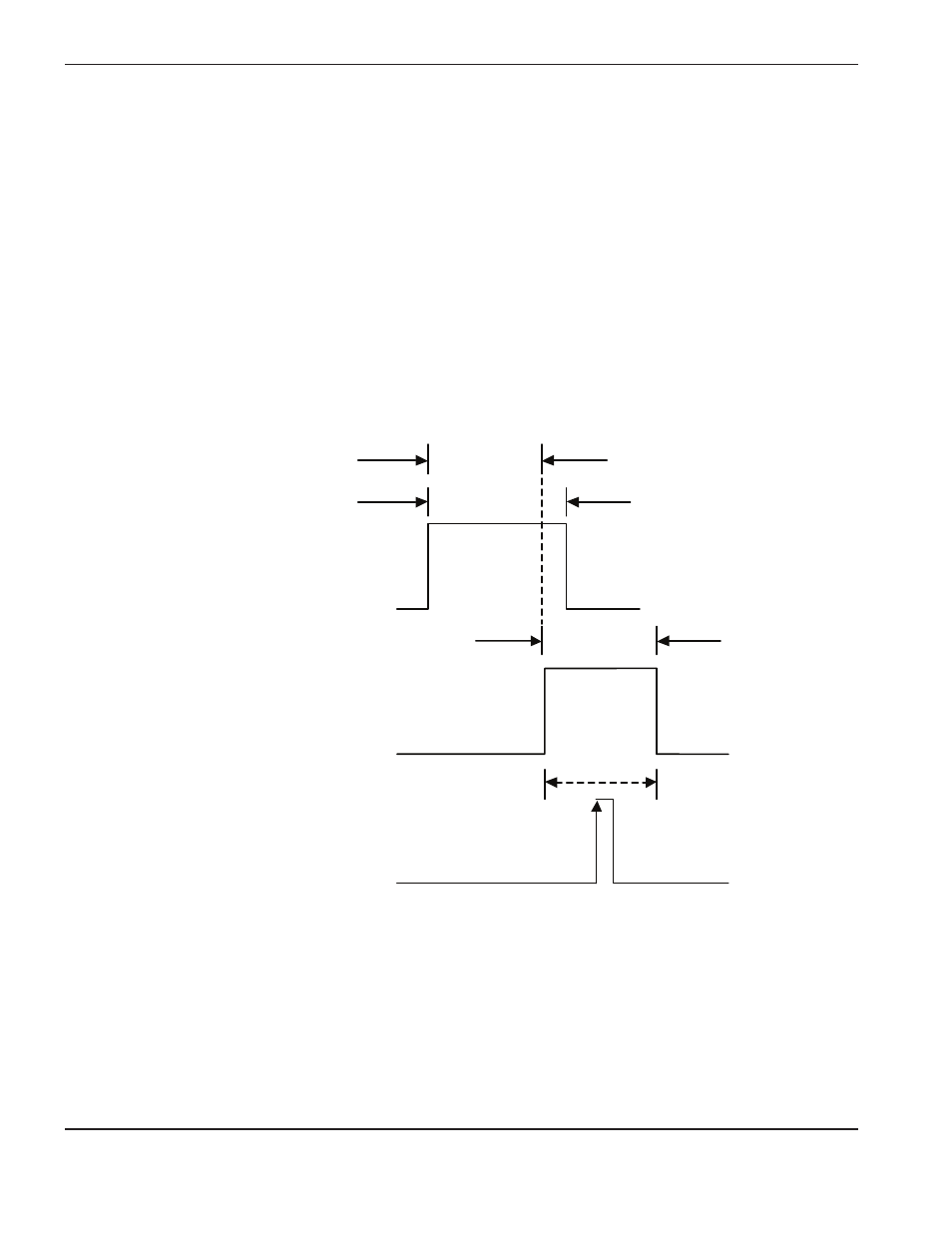

The Hypertherm CNC provides a built in interface for generating single laser pulses. This process uses the following
digital inputs and outputs:
• Pulse Laser Enable (input) – Set active for 2 seconds to enable pulsing.
• Pulse Laser Enabled (output) – this output becomes active once pulsing is enabled. This may be used to
activate an indicator LED as an example.
• Pulse Laser (input) – Once pulse is enabled, an inactive-active transition on this input will pulse the laser.
A momentary push-button may be used to generate this transition. The transition must appear within two
seconds after pulsing is enabled or pulsing becomes disabled and will need to be enabled again.
