9. Output of labeling data
After entering all labeling data, the labeled tags can be printed or engraved. When you
began working, you selected the printing or engraving device you wanted to use.
If you click on the Print icon, the relevant printing output window opens for the output
device being used.
9.1 Output on plotter
The settings and information are entered or are displayed on the tabs.
Plot options – Support plates

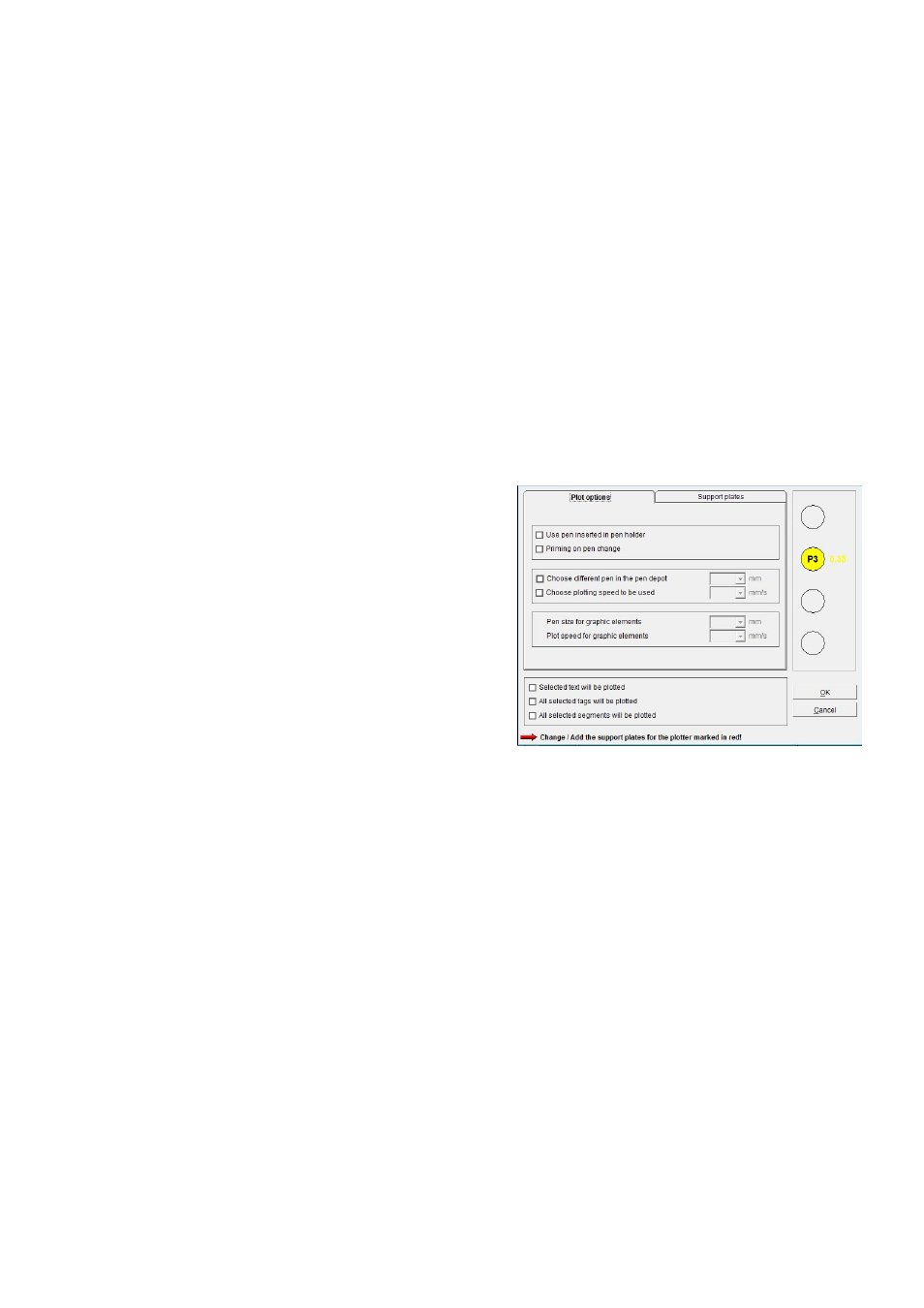

Plot options tab
This tab enables you to set the following parameters:
- Only use pen inserted in pen holder
If you check this box, no pen is taken
out of the pen depot. Only the pen
inserted directly in the pen holder will be
used. This option is therefore always
required if you need to use pens that
are not suitable for the plotter’s pen
depot.
- Priming on pen change
If you select priming on pen change,
prior to labeling, the pen is taken to the
respective priming disk next to the pen
depot and is primed so that labeling is clear right from the first tag.
- Choose different pen in the pen depot
Two or more pens are displayed that should be used for this print instruction. If you
just want to use one plotter pen thickness, click on this option and choose the pen
to be used from the selection that subsequently appears.
- Choose plotting speed to be used
You can set different speeds for individual labeling sequences. If you just want to use
one speed, click on this option and set your required plotting speed from the selection
that subsequently appears.
