9.2 Output on engraver
The settings and information are entered or are displayed on the tabs.
Engraving options – Tag contours – Support plates

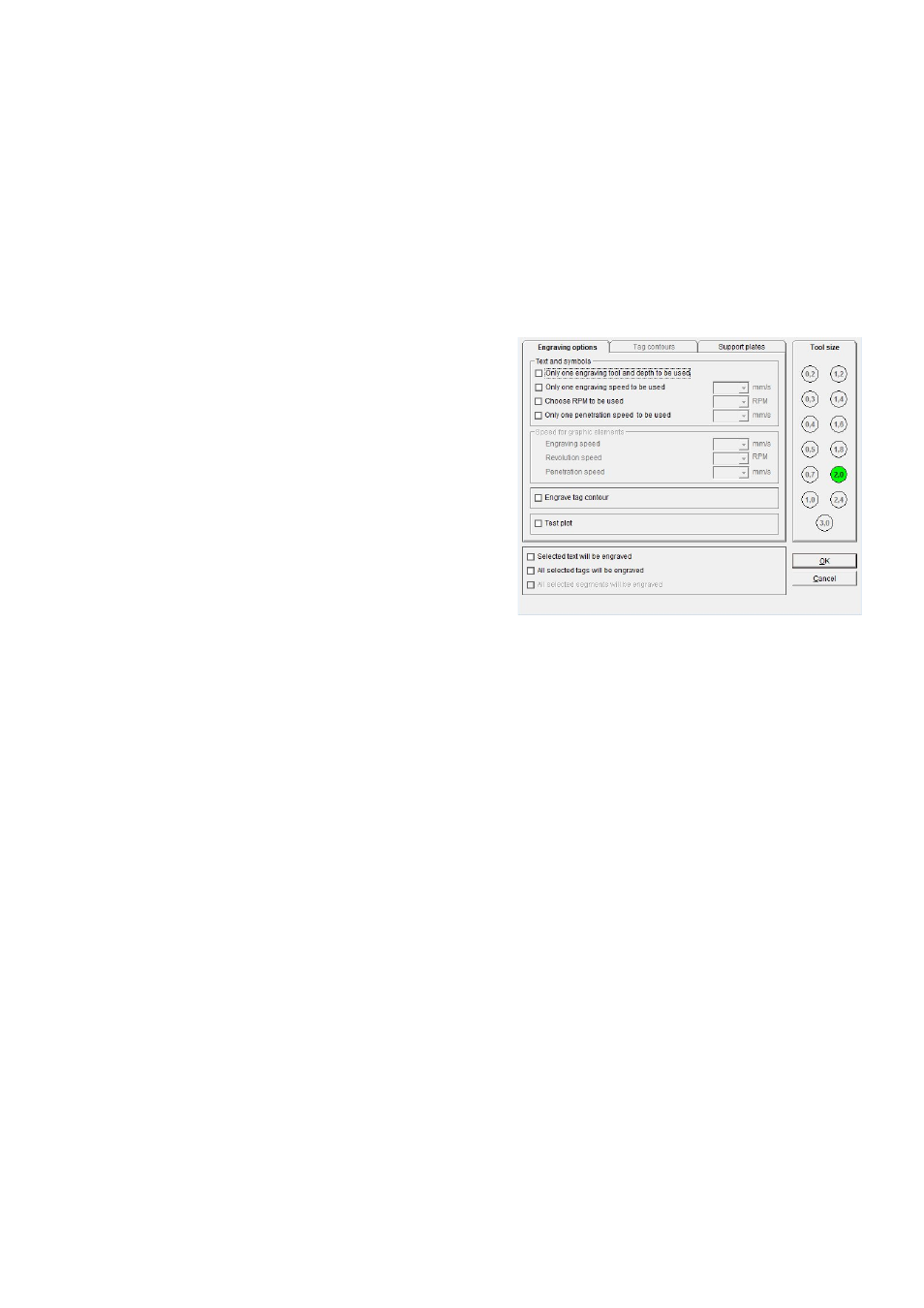

Engraving options tab
Within the upper part of the window under text and symbols you can enter couple of
settings.
When entering labeling data, various
engraving parameter will be pre-set
depending on the font size and
material. The labeling window displays
the depth of the engraving tool, the
engraving speed, the RPM for the
engraving spindle and penetration speed
used for each labeling task. If
necessary, you can change
the various settings as detailed below.
- Only one engraving tool and depth to be used
By entering the engraving data various engraving needle sizes will be assigned by the
program, depending on the font size. In the right side of the window the proposed
needle sizes are displayed. When executing the job, the system stops after the first
part with the first needle is finished, asking for exchanging the needle to the proposed
second size.
Click this option if you only want to use one tool size and depth of penetration.
- Only one engraving speed to be used
Different engraving speeds can be set for individual labeling tasks. If you just want to
use one speed, click on this option and set your required engraving speed from the
selection that subsequently appears.
- Choose RPM to be used
You can set different RPMs for the engraving spindle for individual labeling tasks. If
you just want to use one spindle speed, click on this option and set the spindle
speed required (RPM) from the selection that subsequently appears.
