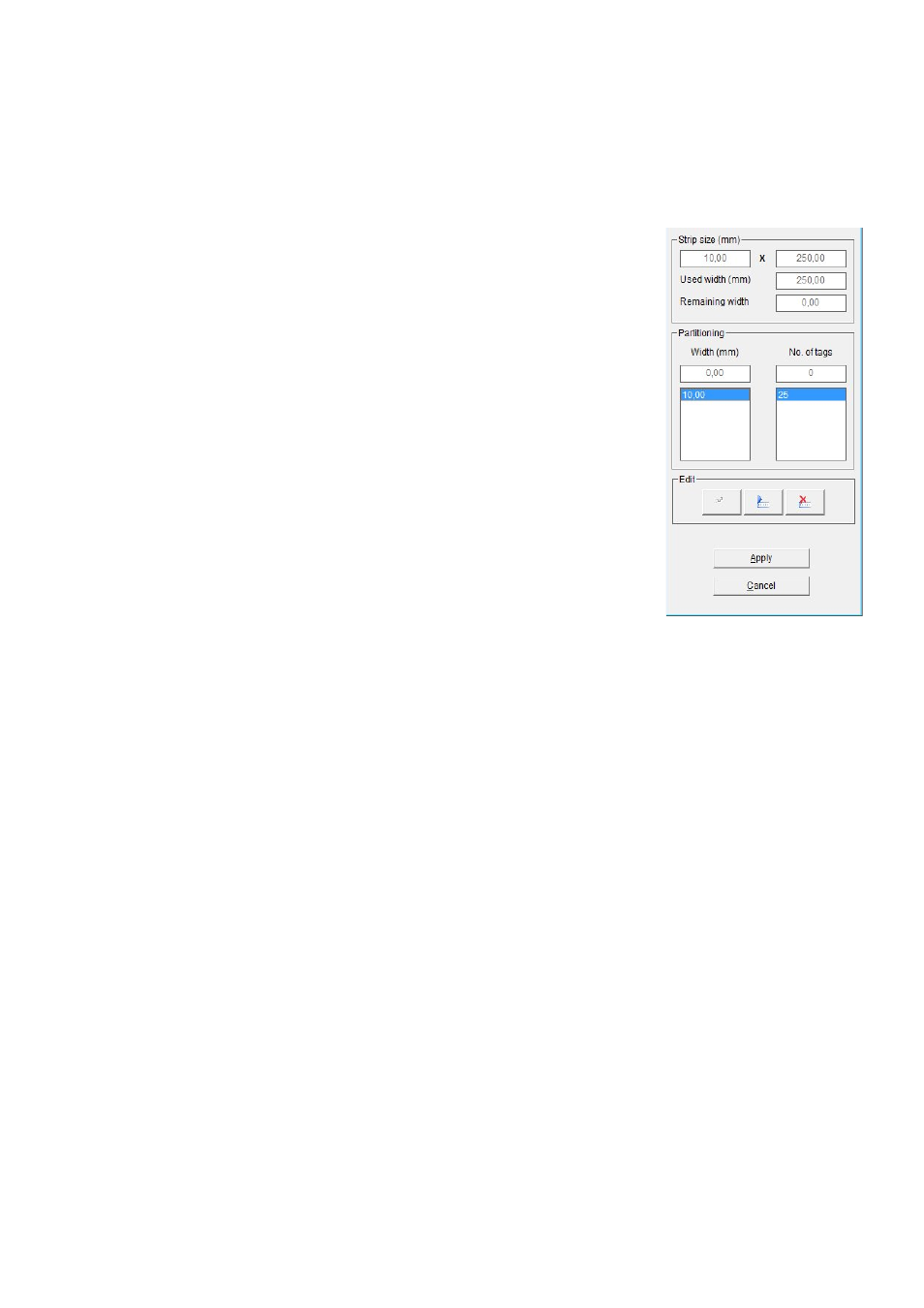

Then the following window opens up:
To enter the required subdivision of the strip, proceed as
follows:
First enter the width and then the number of tags.
By clicking on the Add button, the data are transferred to the
field below. If the strip is not yet fully divided up, you will be
shown the length of strip that is still available. Now you can
specify other tag widths.
When you click on Apply, the program takes you back to the
previous window and displays the subdivision that you have
specified.
In this way you can subdivide the individual sections using
different tag widths in succession as required.
When you have finished all the subdivisions, close the
Designer.
You can select the labeling element you have created in the
folder
> User defined under > Manufacturer and call it up for labeling.
Note:
If you have created the labeling data for a strip and are producing the engraving data
on the engraver, the horizontal and vertical separating lines will be engraved.
