To make a correction, proceed as follows:
Turn on the plotter and select a tag on the segment and then follow the menu path
> Extras > Shift of start point and correction of scale factor.

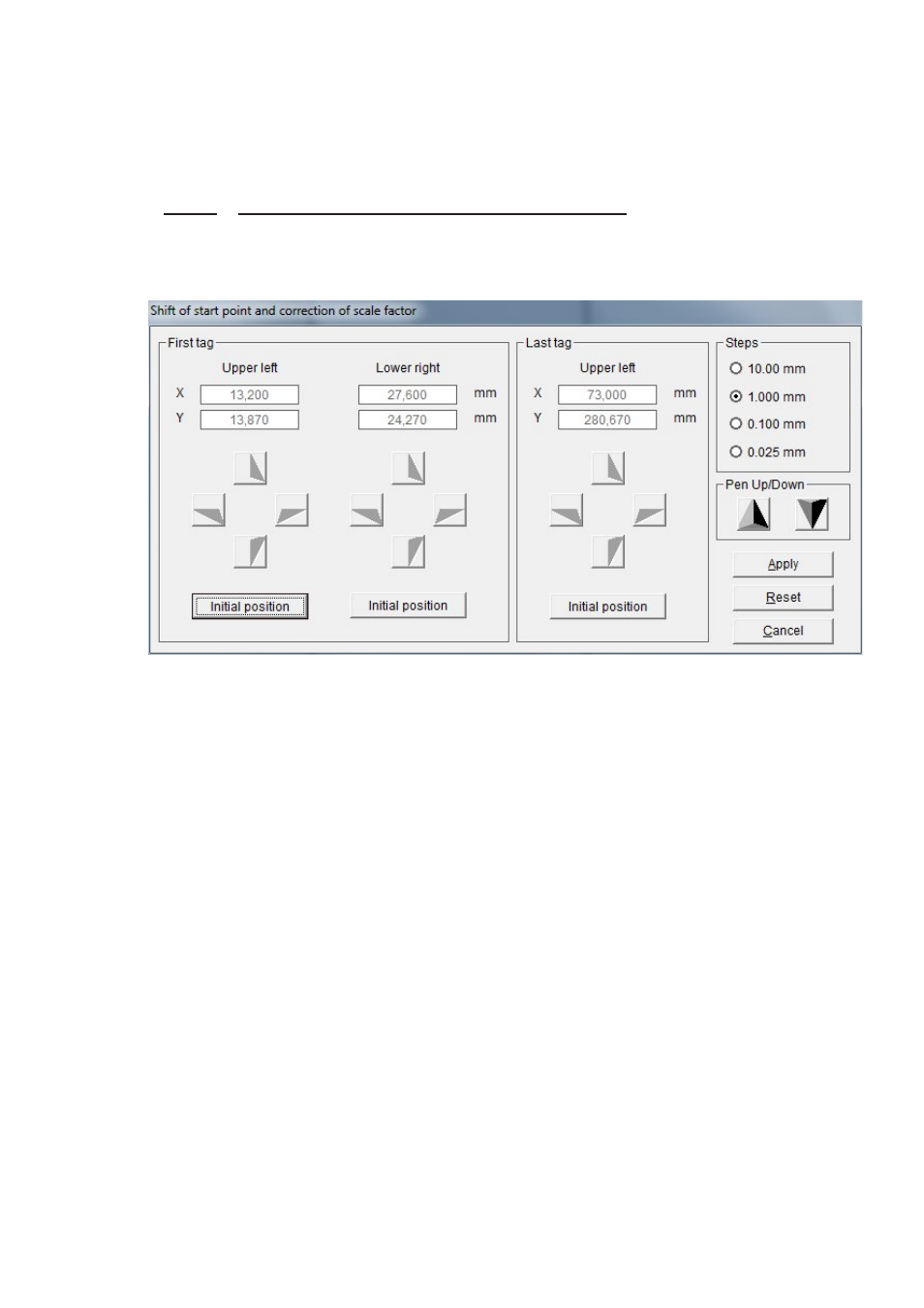

The tags are now all colored red and the following window appears:
Insert a plotter pen into the pen holder or the optical measurement tool with hairline
cross into the engraving head (spindle location) and click on the button
Initial Position in the far left field.
The plotter moves to the upper left corner of the first tag. The peak of the
pen or hairline cross needs to match with the corner point.
In order to find the exact corner point you can move the plotter with the four cursor
buttons to the exact position; you can set the steps to be between .025 mm to 10 mm;
the default step value is .1 mm.
Then after click on the button Initial Position for the lower right corner of the first tag
and proceed the same way to match the peak of the plotter pen or hairline cross with
the lower right corner of the tag.
In order to find the exact corner point, you can move the plotter to the exact position
with the four cursor buttons.
