MOCET IP3072 Smart Office IP Desk Phone Administrator Guide

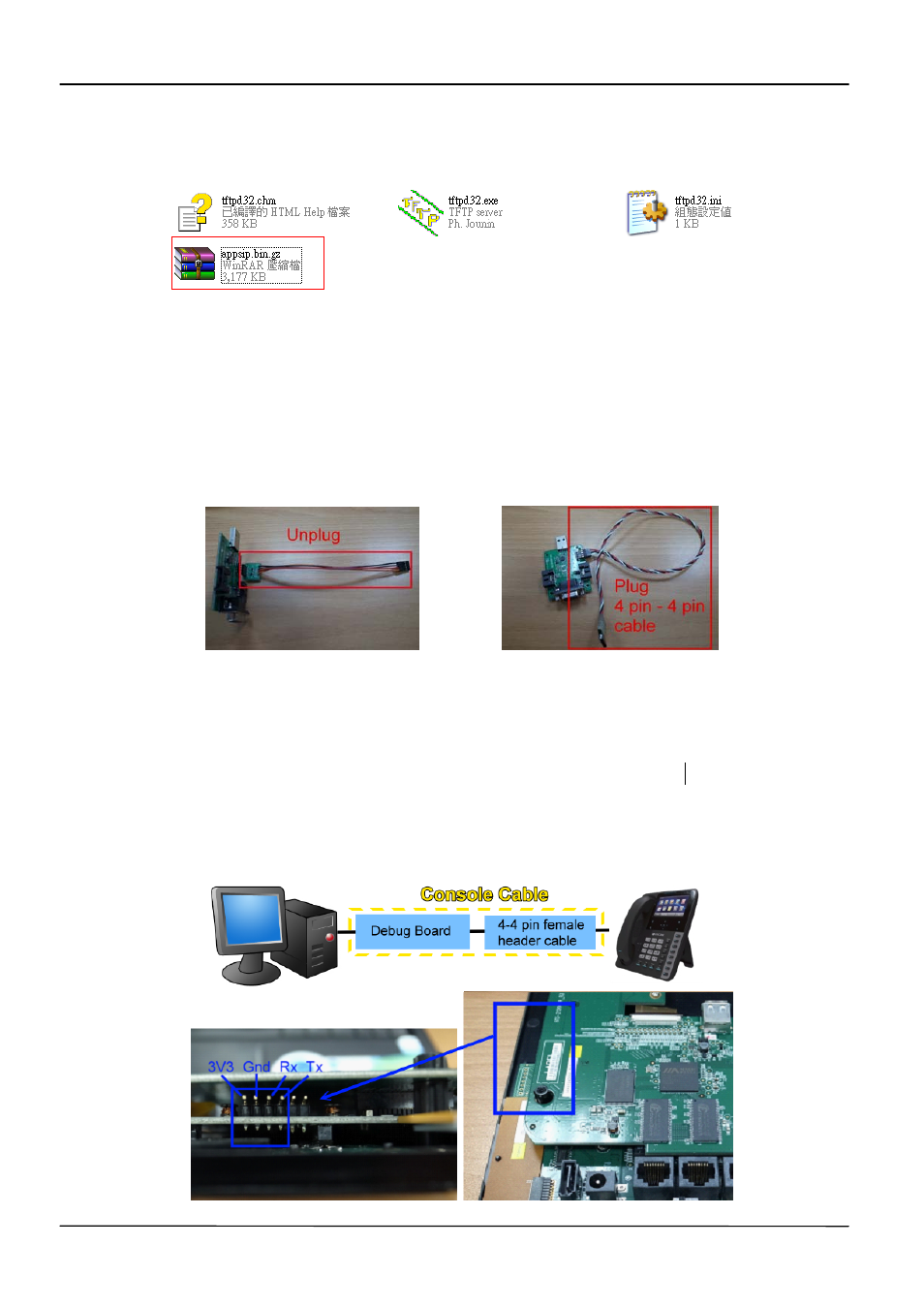

3. Put “appsip.bin.gz” in the file of tftpd32.328.
4.
Hardware Environment Setup
Make Sure You Use the Correct Console Cable
The console cable for IP3072 phone is a little bit different from IP3032/62/62D/92 series. If
your console cable looks like the LEFT picture below, then you will need to unplug the little
tail board, and plug a 4-4 pin female header cable instead.
Connecting the Console Cable with PC/Notebook And the IP3072
1. Take apart IP3072 phone housing.
2. Insert USB plug of the console cable into USB port of PC/Notebook.
3. Insert 4 pin connector of the console cable into the 4 pin header on the main board of
IP3072 phone. Please note the direction of the connector.
