Replacing a transceiver module
NOTE:
When replacing a transceiver module, make sure that the two transceiver modules connected by the same
optical fiber have the same wavelength.
To replace a transceiver module:
1. Remove the optical fibers from the transceiver module.
2. Pivot the clasp down to the horizontal position.
3. Holding the handle of the transceiver module, gently pull the transceiver module out. See Figure
58 .
4. Insert the plastic plug to the removed transceiver module, and put the transceiver module into its
original shipping materials.
5. If you do not install a new transceiver module in the interface, install a dust-proof plug in the
interface. To install a transceiver module, see “
Connecting a fiber cable .”

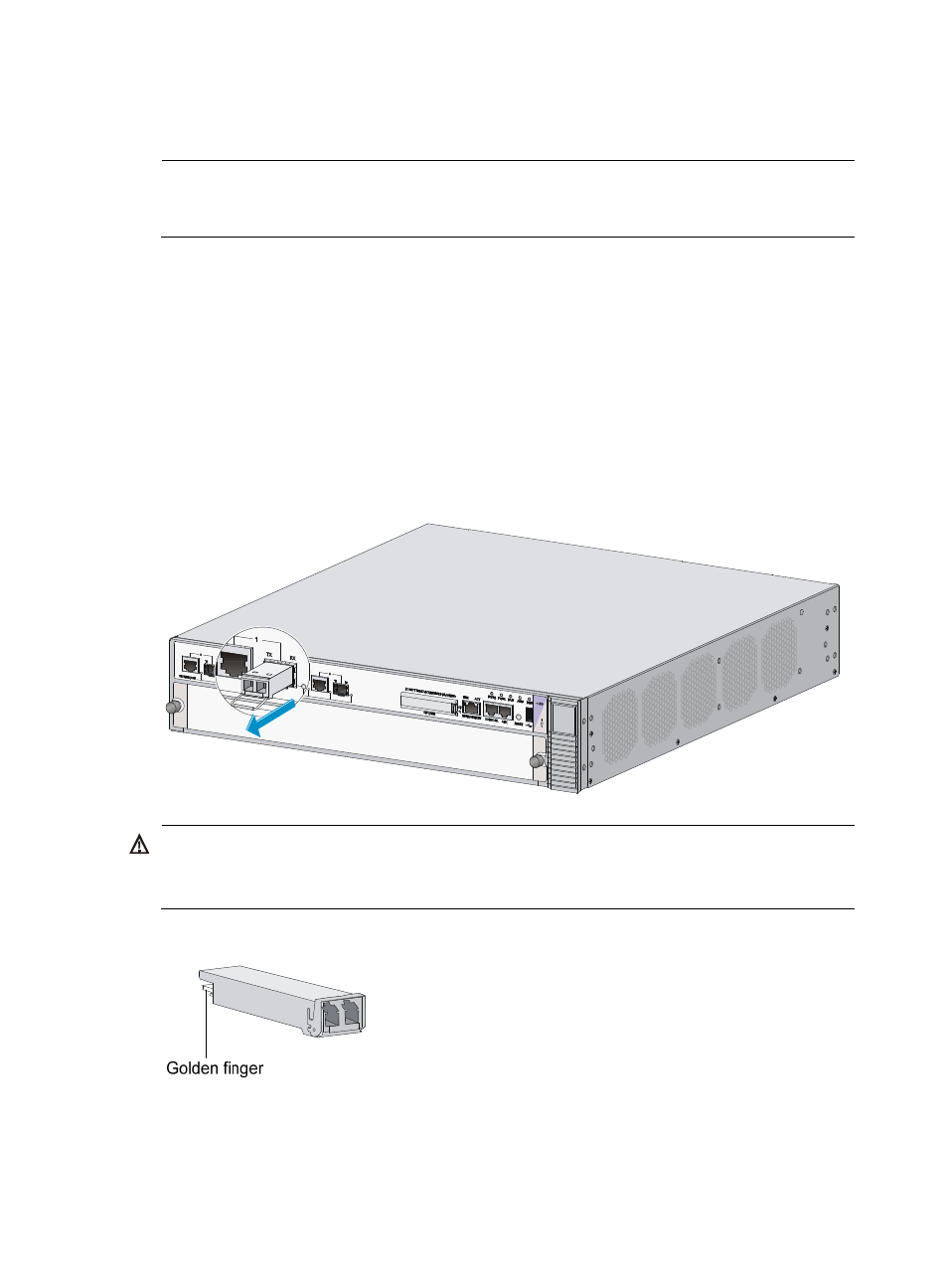

Figure 58 Removing a transceiver module
WARNING!
•
Do not stare into the optical fibers.
• When removing a transceiver module, do not touch the golden finger of the transceiver module.
Figure 59 Transceiver module golden finger
