HIM/MIM LEDs
For description of HIM/MIM LEDs, see H3C SR6600 Routers Interface Module Guide.
Power module LEDs

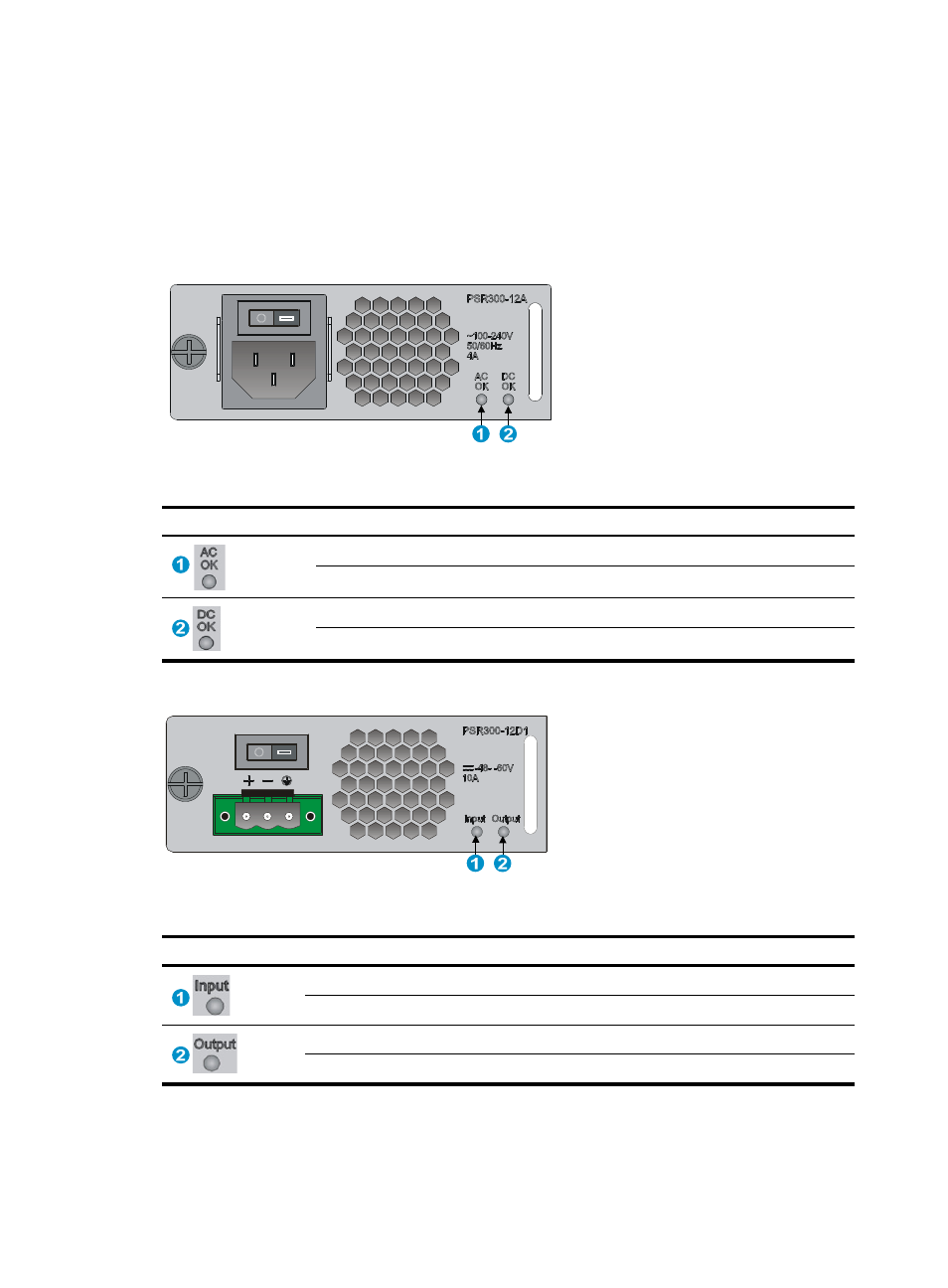

Figure 78 AC power module LED
Table 44 AC power module LED description
LED Status
Description
(green)
Off
No power is input or the power module has an input problem.
Steady green
The power input is normal.
(green)
Off
No power is output or the power module has an output problem.
Steady green
The power output is normal.
Figure 79 DC power module LED
Table 45 DC power module LED description
LED Status
Description
(green)
Off
No power is input or the power module has an input problem.
Steady green
The power input is normal.
(green)
Off
No power is output or the power module has an output problem.
Steady green
The power output is normal.
