1.0
GENERAL DESCRIPTION

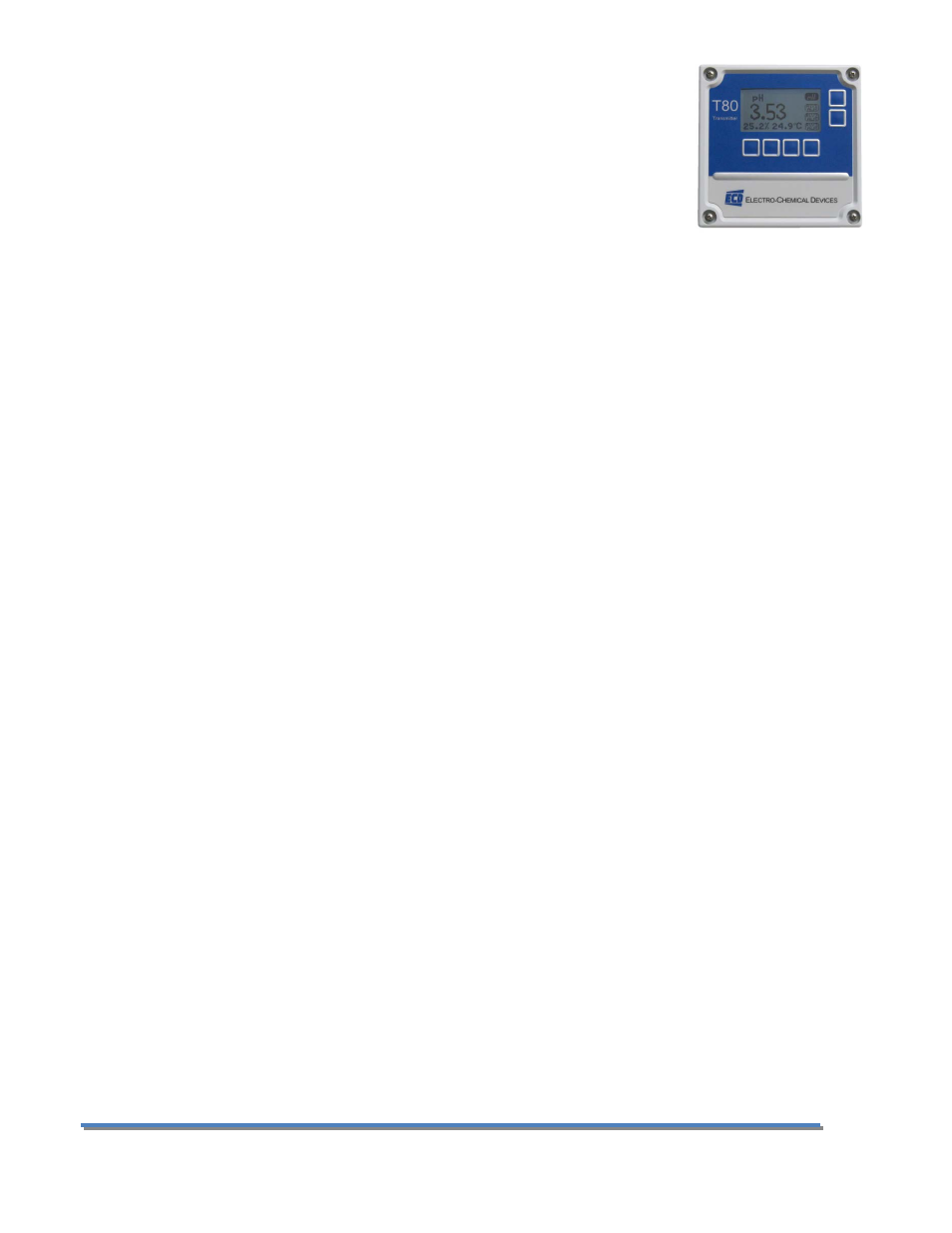

The ECD Model T80 transmitter is a single or dual channel, intelligent, multi-
parameter transmitter designed for the online continuous measurement of pH, ORP,
pION, dissolved oxygen, conductivity, resistivity and turbidity in a general purpose
industrial environment. The Model T80 transmitter digitally communicates with any
ECD S80 digital sensor, automatically configuring the transmitter’s menus and
display screens to the measured parameter.
The Model T80 transmitter can be loop powered, 24 VDC powered or 100-240 VAC line powered. The standard
configuration has a 4-20 mA output and a RS485 serial communication port with MODBUS®RTU output. A HART®
communication version (single channel version only) is also available. Alarm relays are optionally available on
either line powered transmitter.
1.1 FEATURES
• Multi-Parameter, pH, ORP, Specific Ion, Dissolved Oxygen, Conductivity, Resistivity
• Simple, user friendly menu structure
• Noise free digital communication with sensors
• Reads and writes calibration data to sensor
• Dual Channel option has interactive channels, pH compensated readings, interfering ion corrections…
• Isolated 4-20 mA output and MODBUS® RTU standard, optional HART®
1.2 SPECIFICATIONS
1.2.1 I
NPUT SPECIFICATION
Digital protocol, all ECD S80 sensors
Optional analog to digital converter, 5 inputs [mV+, mV-, solution ground, temp + temp - (100 K-ohm)]
1.2.2 I
NPUT
R
ANGES
pH -1.00 - 15.00 pH
ORP -1500 - +1500 mV
pION 000.1 - 999.9, Auto Ranging: ppb ↔ ppm ↔ ppT (thousand)
Dissolved Oxygen 000.1 - 999.9, Auto Ranging: ppb ↔ 20.00 ppm, % SAT, mg/L
Conductivity 0.000 - 2.000, Auto Ranging: µS ↔ mS ↔ S
TDS 0.00 - 9999 ppm
Resistivity 0.00 - 50.00 MΩ
Turbidity 0 - 4000 NTU/FNU, 0 – 9999 ppm, mg/l, 0 - 100% % solids
Temperature 100 K-ohm TC, -30°C - 140°C
1.2.3 A
CCURACY
pH 0.02 pH
ORP ± 1 mV
pION Specific to electrode type
Dissolved Oxygen 2% of range
Conductivity 2% of range
