Any two solutions can be used for AUTO calibration however if solutions other than those listed above
are used for calibration then the calibration values must be entered manually.
 STAND is standardization, a single point calibration. Standardizations are typically used to adjust the
process reading to agree with a laboratory determined “grab sample” reading.
 MANUAL is a data entry screen. Manual calibration allows the user to enter a concentration with the
corresponding mV value and a slope for an electrode. Laboratory generated calibration data for an
electrode can be input to a remote analyzer where calibration is difficult or impractical.
 TEMP allows the displayed temperature to be trimmed to agree with actual
process temperature.

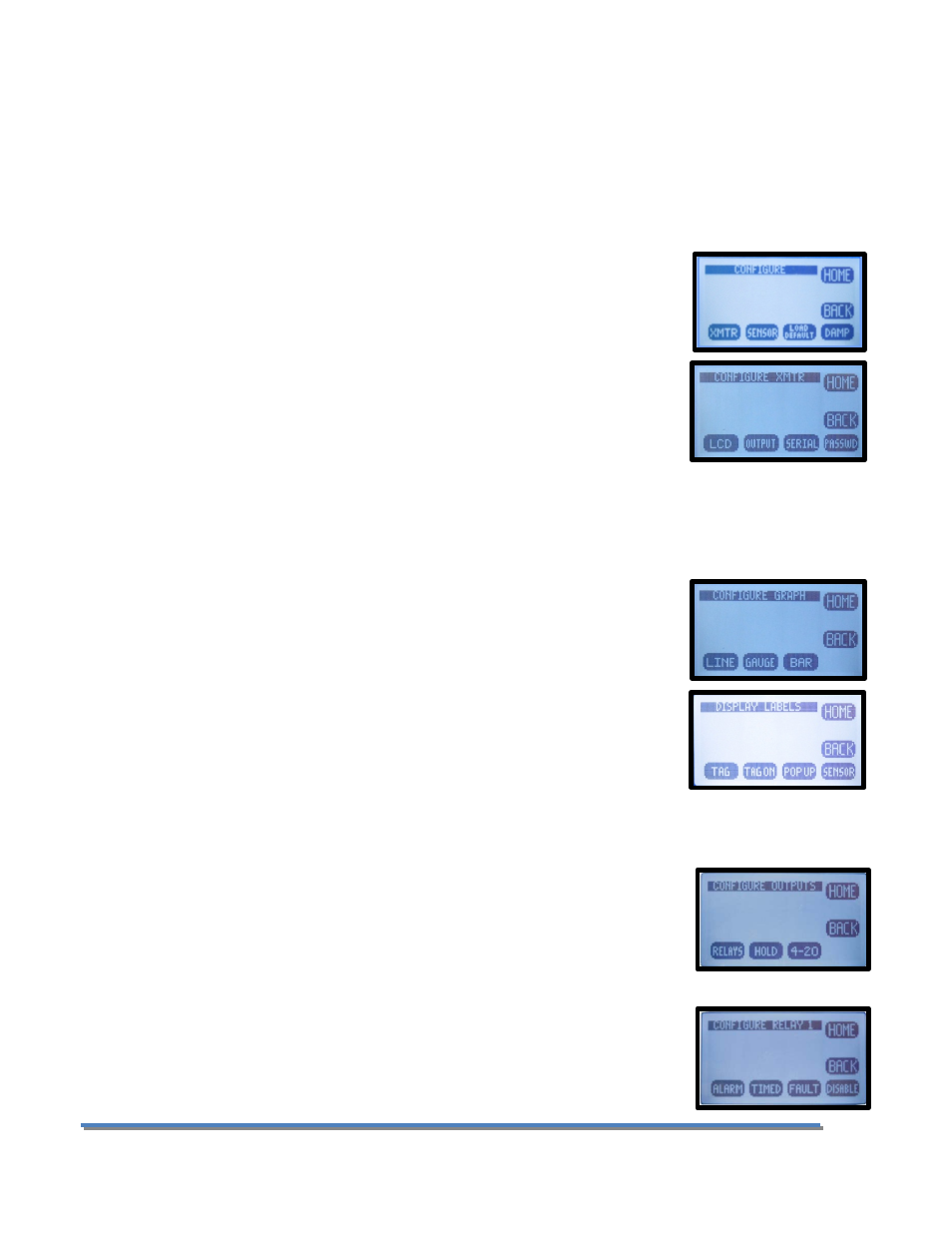

3.2.3 CONFIG (C
ONFIGURATION
M
ENU
)
Four options are available in the Configure Menu, XMTR, SENSOR, LOAD DEFAULT
and Dampen.
 XMTR enters the Transmitter Configuration menu.
o
LCD access the Display Configuration Menu
 SETUP adjust screen lighting characteristics
• Temp. Choose °C or °F
• CONT adjust Contrast
• BACK LIGHT adjust Backlight Timeout, from always ON to OFF after 10 minutes
 GRAPH provides the choice of which Graph style is displayed on the Home screen.
• LINE , Moving average, vertical scale set to 0-100%
of the 4-20 mA output and user defined time scale
• GAUGE, Current reading 0-100% of 4-20 mA range
• BAR, Current reading 0-100% of 4-20 mA range
 LABELS
• TAG, Enter up to 2 lines x 16 characters, example,
Name, tag #... Displayed in INFO screen
• TAG ON, Turn TAG ON/OFF, adds TAG to Main
Display Sequence, DATA → mV → GRAF → TAG →
DATA
• POP UP, Turns ON/OFF, the double tap HOME Screen pop up memo
• SENSOR, Enter up to 2 lines x 16 characters
o
OUTPUT access the Output Configuration Menu
 4-20 mA configure 4-20 mA output (PV or Temp or More)
• RANGE Enter 4 mA value and 20 mA value
• CAL Trim 4.00 mA output and 20.00 mA output
• FAULT Choose fault condition 3.5 mA, 22 mA, None
 Optional 2 nd 4-20 mA, same as above
 RELAY
• RLY1,2,3 Choose relay type:
o
Alarm, enter the Set point ON, Set Point OFF,
Expiration time, Delay ON and Delay OFF
Page 23 Model T80
