Fronius Agilo 75.0 - Manual (Page 21)

19
EN

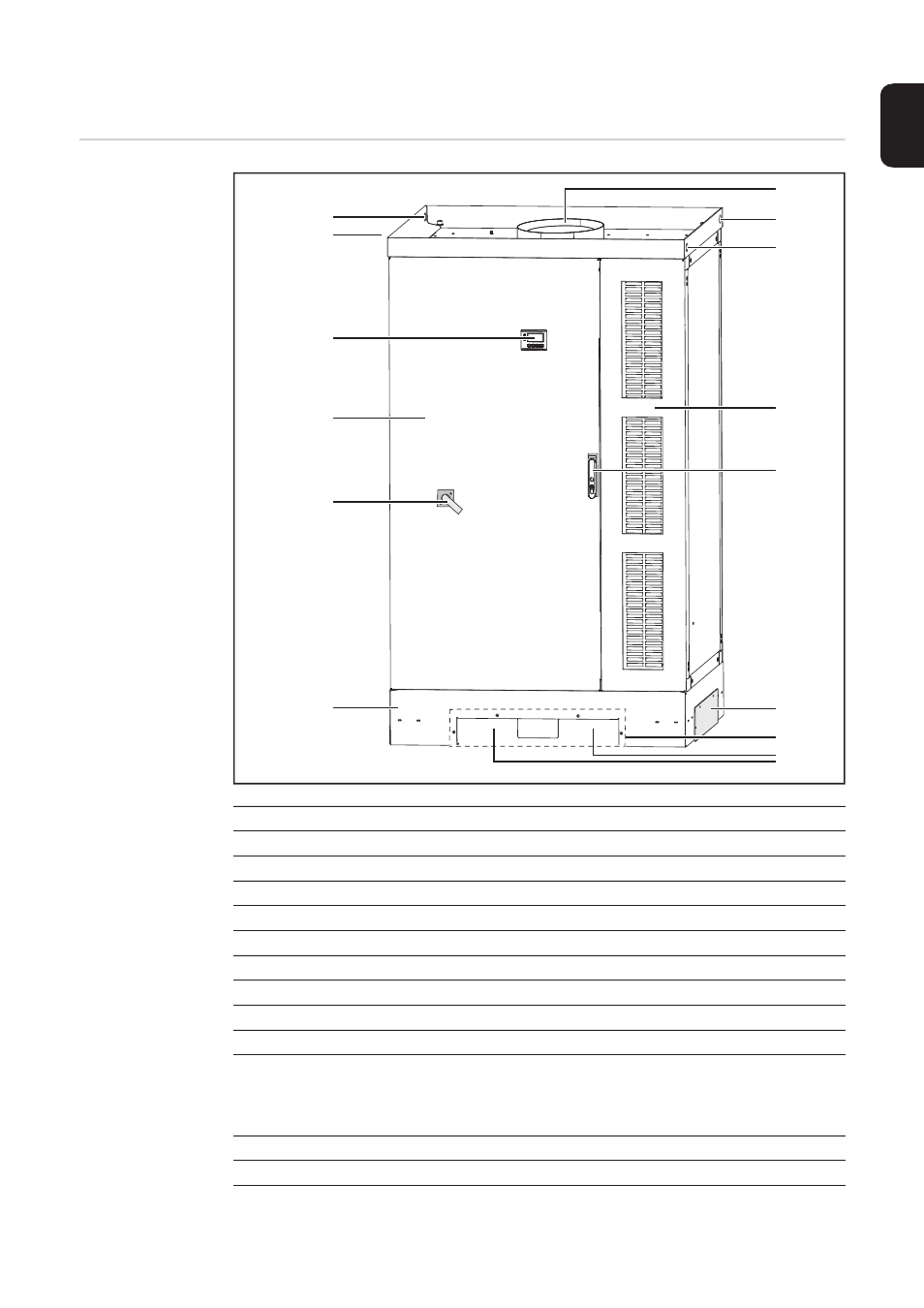

Description of the device
Outside of invert-
er
Item Description
(1) Outlet air opening, diameter 315 mm
(2) Lifting eye for crane transport
(3) Lifting eye for crane transport
(4) Air inlet grille
(5) Door handle (lockable)
(6) Right side panel (opposite: left side panel)
(7) Front cover (opposite: rear cover)
(8) Forklift truck receptacle
(9) Base
(10) DC main switch, lockable when switched off
IMPORTANT! The door cannot be opened when the DC main switch is switched
on.
(11) Door
(12) Control elements (display, buttons, monitoring and status LEDs)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(14)
(13)
(12)
(11)
(10)
(8)
(9)
