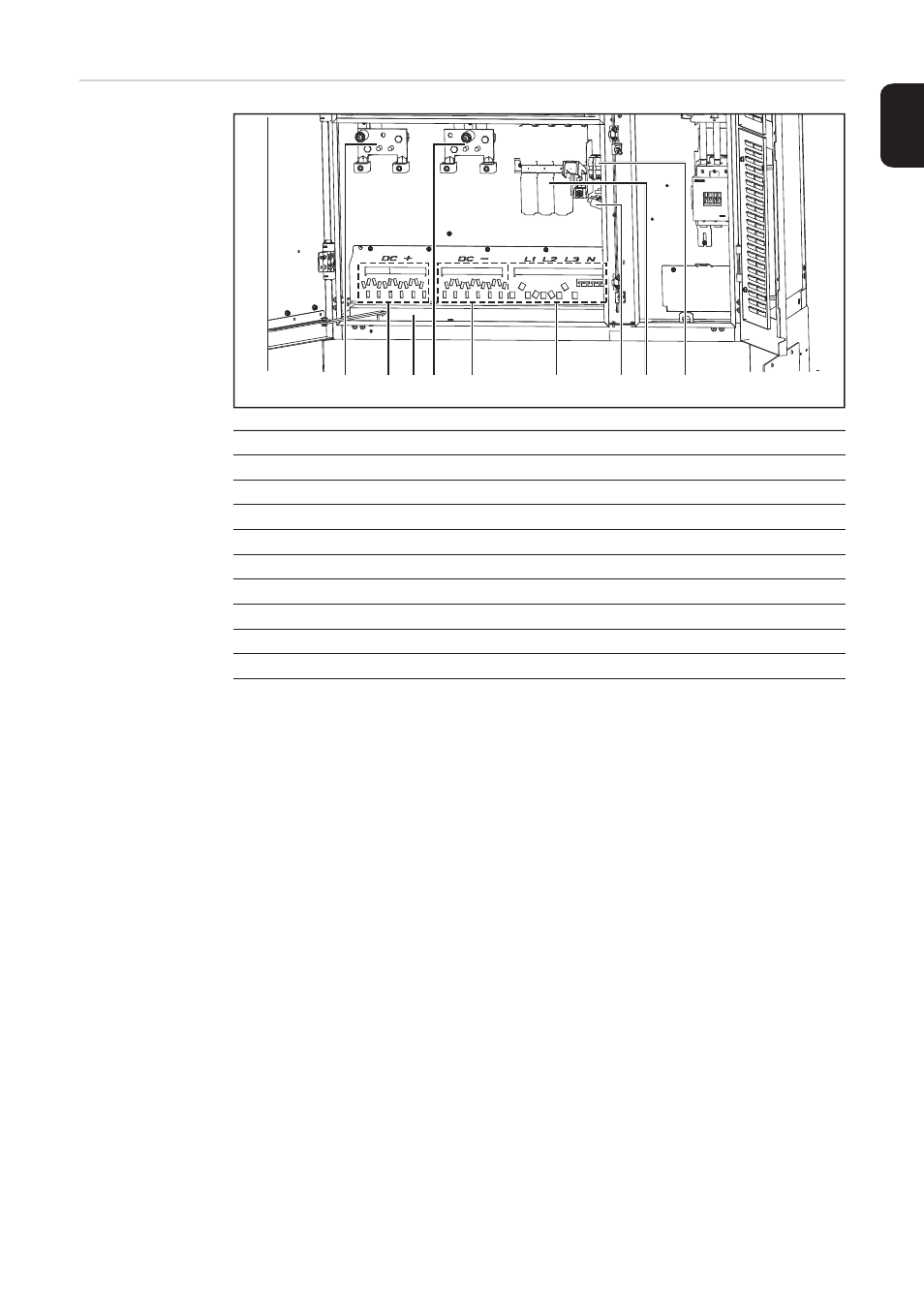

Connection com-
partment
Item Description
(1) DC+ connections
(2) Openings for attaching the strain-relief clamps* for the DC+ cable
(3) Cable input opening with sliding cover and seal
(4) DC- connections
(5) Openings for attaching the strain-relief clamps* for the DC- cable
(6) Openings for attaching the strain-relief clamps* for the AC cable
(7) Grounding terminal for AC cable
(8) Mains connections L1, L2, L3 and N with connection cover
(9) AC power supply
* The strain-relief clamps and other installation and connection accessories are
part of the scope of supply of the inverter.
(1) (2) (3)(4) (5) (6) (7) (8) (9)
