Reference - Model IG (8:1 Staged)
Large
Manifold
Small
Manifold
Gas Pressure
Test Port
Gas Pressure
Test Port
3
⁄
4
inch Gas Supply
Connection
Staged Gas
Valves
Reference
1.

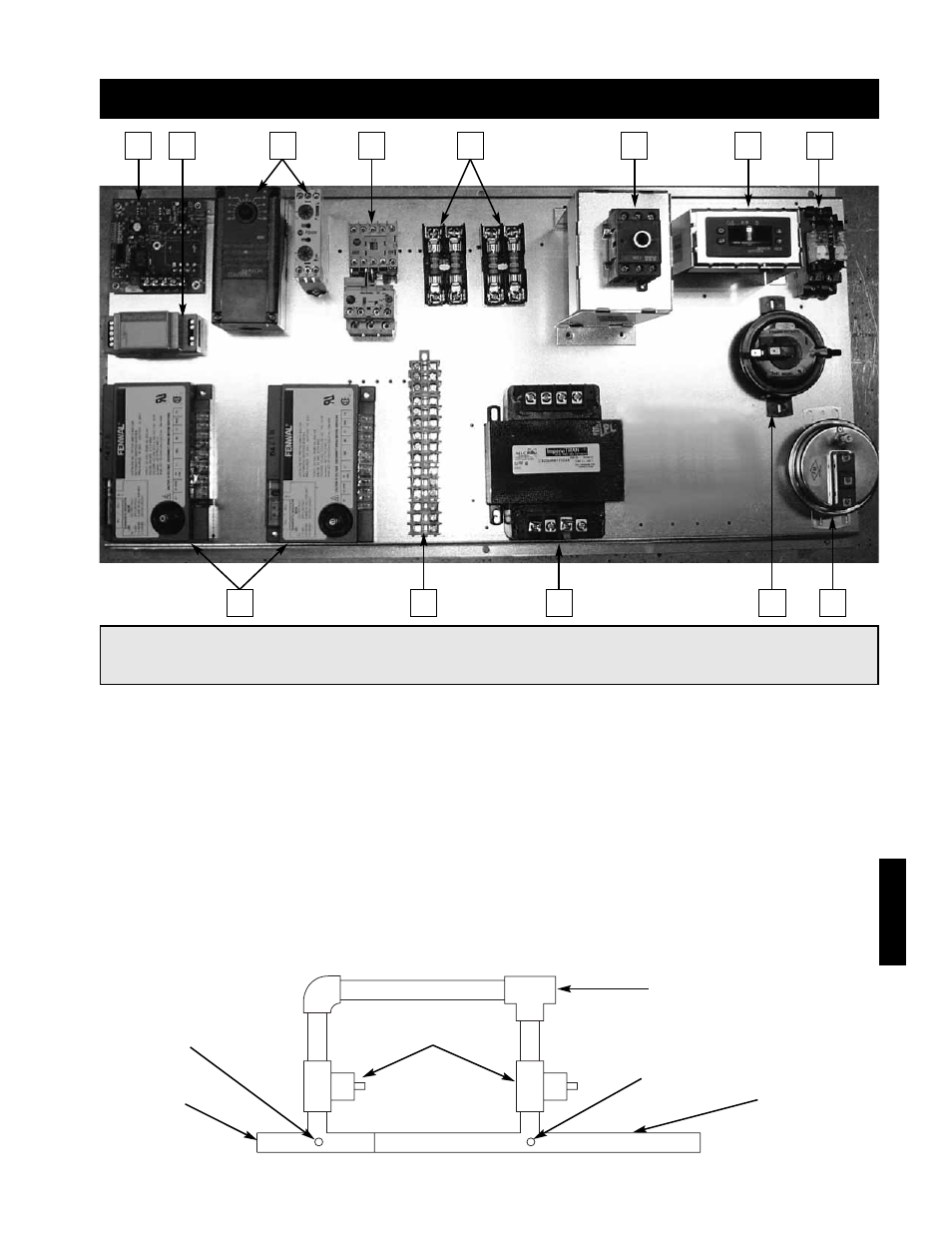

Building Freeze Protection - Prevents the discharge of cold air into the building.
2.
Input Converter - Receives and converts signal from building management system.
3.
Evaporative Cooling Controls (Optional) - Controls the evaporative cooler.
4.
Motor Starter(s) - Magnetic contact(s) for starting motor(s). Comes standard with electronic overload,
auxiliary contact(s) optional.
5.
Fusing - Provides 24 VAC fusing for controls and fusing for the combustion blower.
6.
Main Disconnect - Provides single point power connection to the unit.
7.
Stage Controller - Provides 8-stage control of the furnace.
8.
Relays - Call for heat and airflow switch relays.
9.
Ignition Controllers - Controls the ignition of the furnace. Maintains safe operation of the furnace.
10. Terminal Strip - Provides easy, number coded wiring of the control.
11. Main Transformer - Provides 24 VAC for controls.
12. Airflow Switch - Monitors the airflow inside the heat exchanger.
13. Dirty Filter Switch - Switch trips when filters are dirty and pressure loss is higher than set point.
14. Grounding Lugs (not shown) - Completes electrical circuit.
1
9
2
11
12
13
4
10
3
5
6
7
8
NOTE!
This is a typical blower control center, the control center in your unit may be different. Reference the
ladder diagram on the inside of the control center door for a unit specific wiring diagram.
