2.14 MACHINE CONTROL
The Machine Control panel of the DD35 supports up to 4 VTRs or Disk Recorders,
Laser Disk Players which supports a standard VTR control interface.
To select a VTR choose one of the four MPx buttons (MP1 ... MP4).
The selected button will lit. All motion command buttons and the display in top of
the Machine Control section are delegated to the selected MPx device.
For installation of an VTR driver refer to section INSTALL menu.

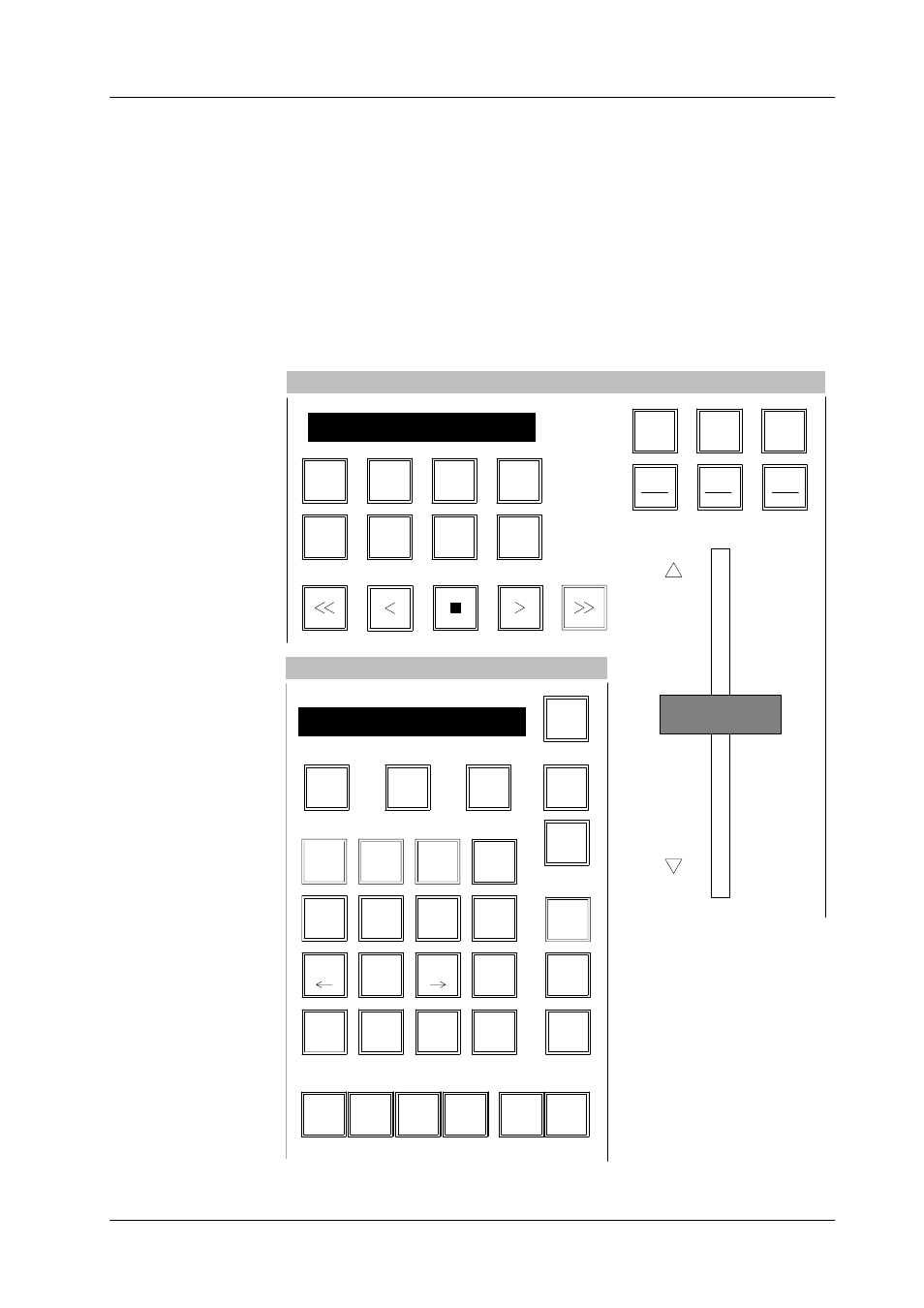

Machine Control
