Grass Valley DD35 Family v.3.1.5 - Manual (Page 331)

3. Menu Operation DD35 Production Switcher
3 – 179 Operating Instructions – Rev. 16 / 10.2001
Autophasing
ME4
> 0.5 line
Min delay
Aux outputs

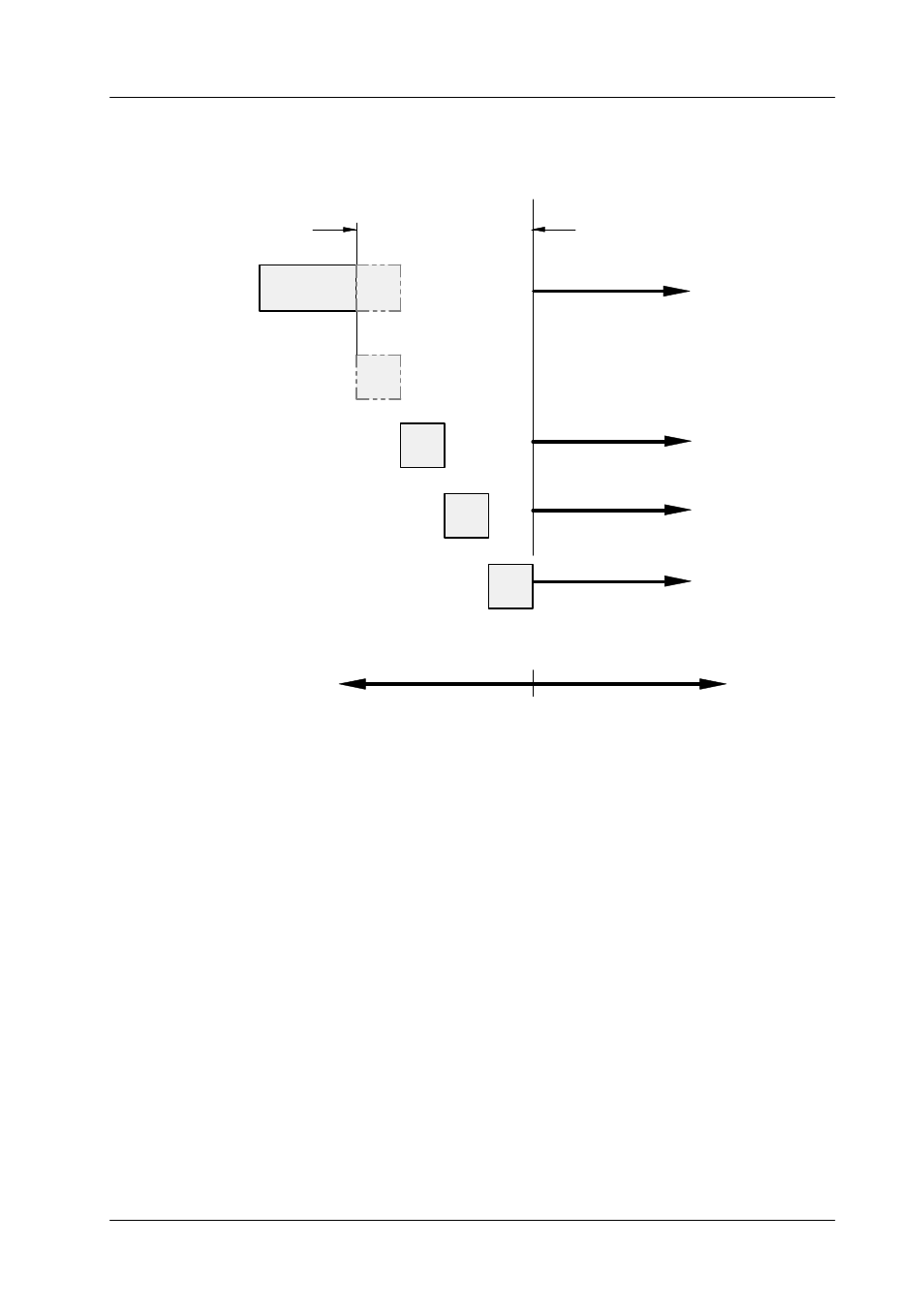

Timing reference diagram HD35-3
ME1
ME2
ME2 output, PVW
PP / ME3 outputs, PVW
< 0.5 line
Total timing position of HD35 in respect to the reference blackburst
approx minus 12 lines approx plus 12 lines
PP
ME1 outputs, PVW
range input
approx. 3.1 us
approx. 3.1 us
approx. 3.1 us
