2.7.7 KEY MEMORY
Stored adjustments
The key memory can store a complete key adjustment for any input of the switcher
in an automatically or a manual way.
For details see also in section 3.7.1 and 3.17.2.2 .
*
* *
* *
* *
*
*
*
*
1
Keyers
Bord
on
Cursor Auto
FGD Chr
Sel
Key
over
Key
inv
Mask
on
Mask
Key
Key
PVW
Matte
Key
Bus
Split
Memo
Key
Bus
Coupl
Split
Key Fill
Add
Lin–
Lum
–Lin
Chr
Key
Pattn
1
Pattn
2
Source Type
Cut
Auto
BGD B
Key 3
BGD A
Key
1
Key
2
Fade
D E N S
C L E A
O P A C
OnAir
*

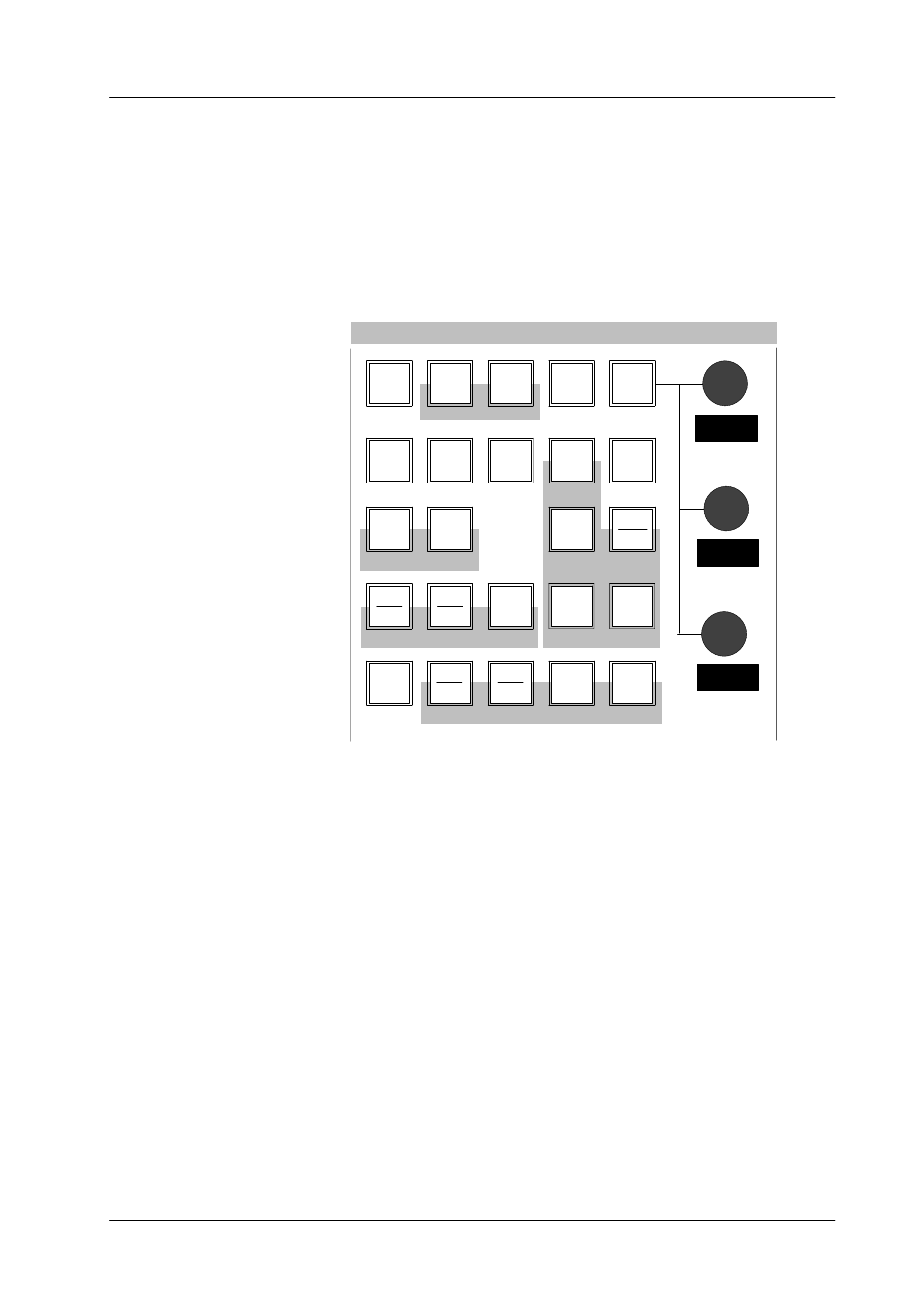

The following parameters (marked in the figure with * ) are stored:
D
Key Type (Lin, Lum, Chr, Chr with FGD Fade)
D
Border (Shadow, Drop, Outline, ... )
D
Border Position, Border Opacity
D
Key Invert
D
Mask on, Mask Source (Box, Pattern, ...), Box Mask (right/left/top/bottom),
Mask Bus Clip/Gain
D
Fill Matte/Bus
D
Opacity
D
Clip, Gain
D
Chroma Key Color and Selectivity
D
Adjustments of Fill Matte and Border Matte
D
Synthetic Key Sources (Mask Key, Pattern Key)
