2. Panel Operation DD35 Production Switcher
2 – 113 Operating Instructions – Rev. 16 / 10.2001
2.18 FLOPPY DISK DRIVES
2.18.1 FLOPPY DISK DRIVE FOR RPS35-4, RPS35-3 AND RPS35-2

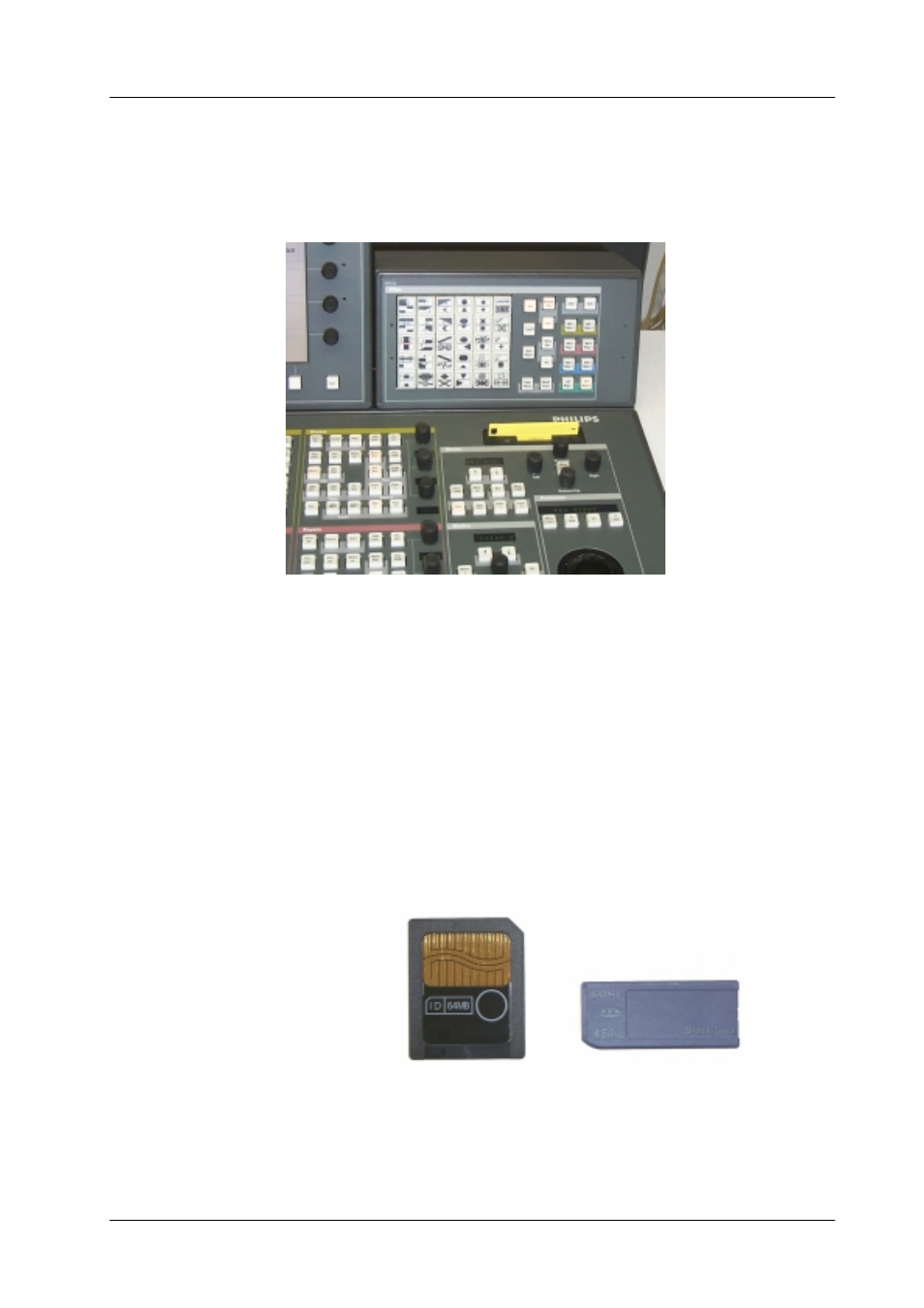

Fig. 203: Floppy disk drive in the RPS35-4 panel
The panels RPS35-4, RPS35-3 and RPS35-2 are provided with a 3.5” floppy disk
drive having a storage capacity of 1.44 MB. If a larger amount of data has to be
stored, we recommend to use the so-called “Smart Media Cards” or “Memory
Sticks”. These stores are located in 3.5” disk adapters and have a storage capacity
of 64 MB. The adapters are exclusively suited for the operating systems Windows
’95 / ’98 / 98SE / NT 4.0 / 2000 Professional and Mac OC Version 7.6.1 and higher.
The following disk types and 3.5” disk adapters have been tested by Philips and
are released for being used with the above panels.
D
3.5” disk adapter MAFP-2NE from Olympus for use of the Smart Media Card
from the manufacturer Viking
D
3.5” disk adapter MSAC-FD2M from Sony for use of the Sony Memory Stick,
type MSA-64A
Smart Media Card Sony Memory Stick
Fig. 204: Disks
It is not required to install the supplied program software of the adapters since it is
already pre-installed on the switcher PCs.
