3. Menu Operation
DD35 Production Switcher
3 – 25
Operating Instructions – Rev. 16 / 10.2001

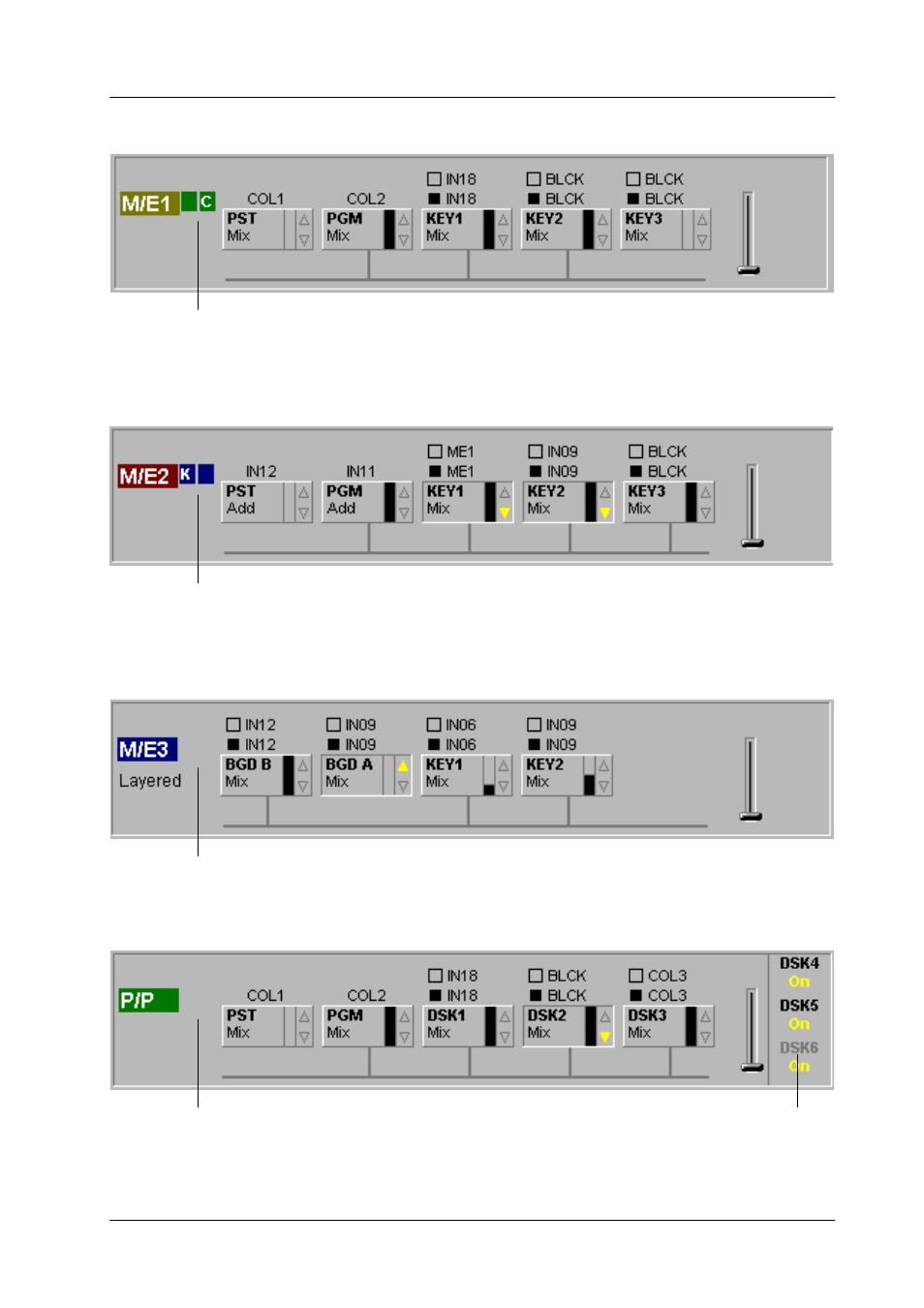

Example 1
Status display of the mixing level M/E1 in “non-layered / key3 mode”.
Status M/E Coupled:
Selected is:
M/E1 is coupled with P/P (green backround)
Component Coupled (C) extension enabled.
Example 2
Status display of the mixing level M/E2 in “non-layered / key3 mode” .
Status M/E Coupled:
Selected is:
M/E2 is coupled with M/E3 (blue backround)
Key Coupled (K) extension enabled
Example 3
Status display of the mixing level M/E3 in “layered” mode.
Status M/E Coupled:
No coupling is selected in Config / EBox / M/E Couple menu for M/E3
Example 4
Status display of the mixing level P/P, always “non-layered / key3 mode” .
Status M/E Coupled:
No coupling is selected in
Config / EBox / M/E Couple menu for P/P
Status Ext. DSK:
If an external DSK is not installed,
the corresponding icons are greyed
