1. General DD35 Production Switcher
1 – 9 Operating Instructions – Rev. 16 / 10.2001
1.2 CONTROL PANEL MODELS
1.2.1 DD 35 SERIES CONTROL PANELS (GENERAL)
D
Panel is dark grey.
D
6 x GP Input, 6 x GP Output
D
4 x RS485 or RS422 (UMD, Aux ...)
D
2 x RS232C at panel
D
Modem port RS232C (not yet implemented)
D
Built-in PC for new, intuitively usable Graphical User Interface and additional
operational features. Floppy Disk, SCSI HardDisk and TFT Color LCD Display
incl. one software license belong to the delivery extent.
Connectors: 2x RS232C, PC Keyboard, Parallel port, LCD Digital port, VGA
port, separate LAN port.
PS/2 Mouse included.

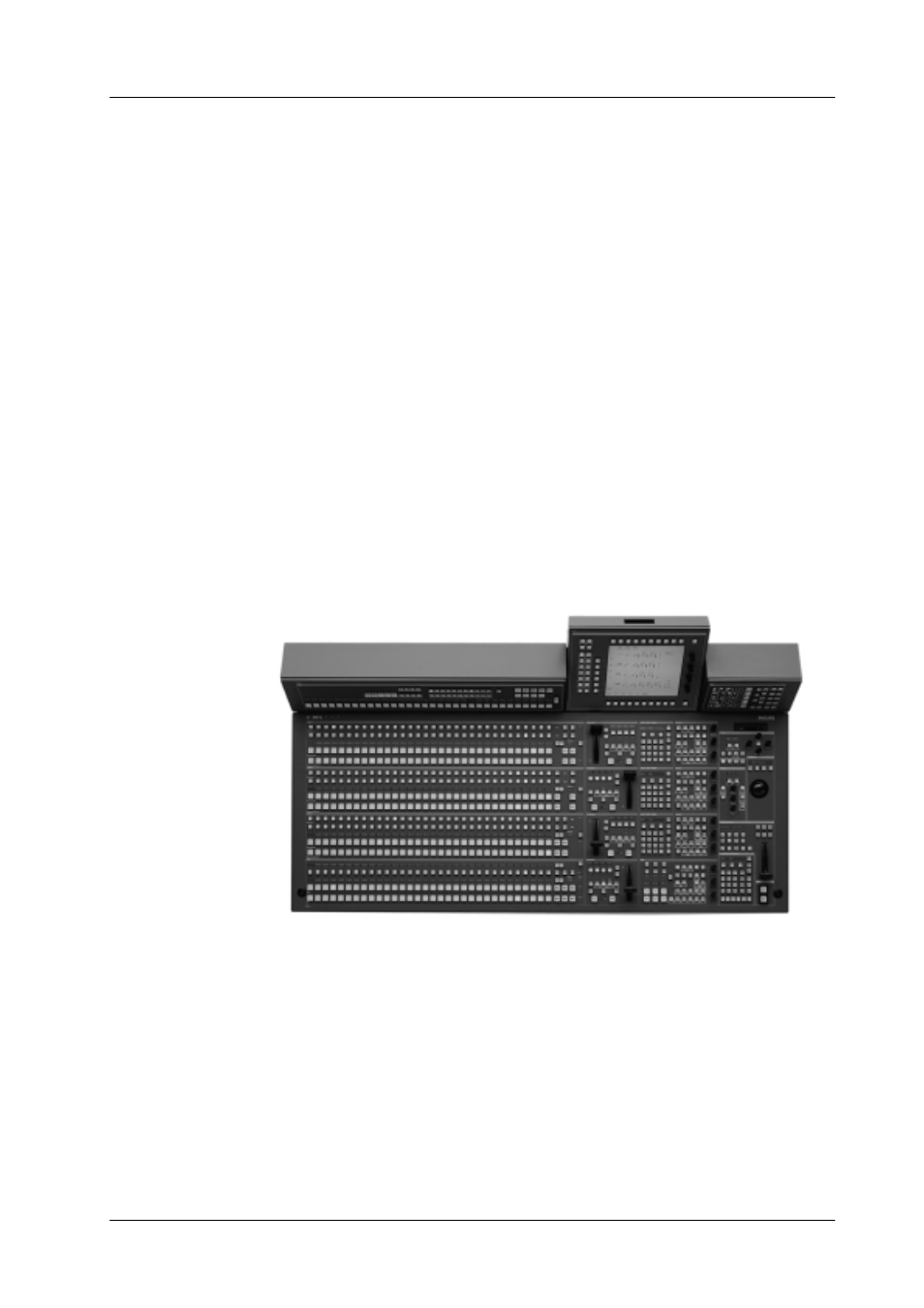

1.2.2 3 M/E PLUS P/P CONTROL PANELS RPS 35-4LX
D
Control panel set with 32 input source buttons (”LX”)
D
4 separate modules
