4. Setup and Maintenance DD35 Production Switcher
4 – 4 Operating Instructions – Rev. 16 / 10.2001
4.3 RUNNING PANEL TESTS
0 1 2 3 4 5 6 7
Box
Top/gain
Bottom/clip
Left Right
Masks
Mask
reset
Forc
FGND
Mask
Inv
Store
Bus
Mask
PVW
Pattn
2
Pattn
1
Mattes
Hue/
Softness
Chroma/
Position
Luminance/
Angle
Matte
1
Matte
2
flat
wash
Wiper
Text
Illegal
0 1 2 3 4 5 6 7
Mode
H
lock
Ctr
V
lock
Positioner
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
Menu
Deleg
4.3.1 LAMP AND DISPLAY TEST

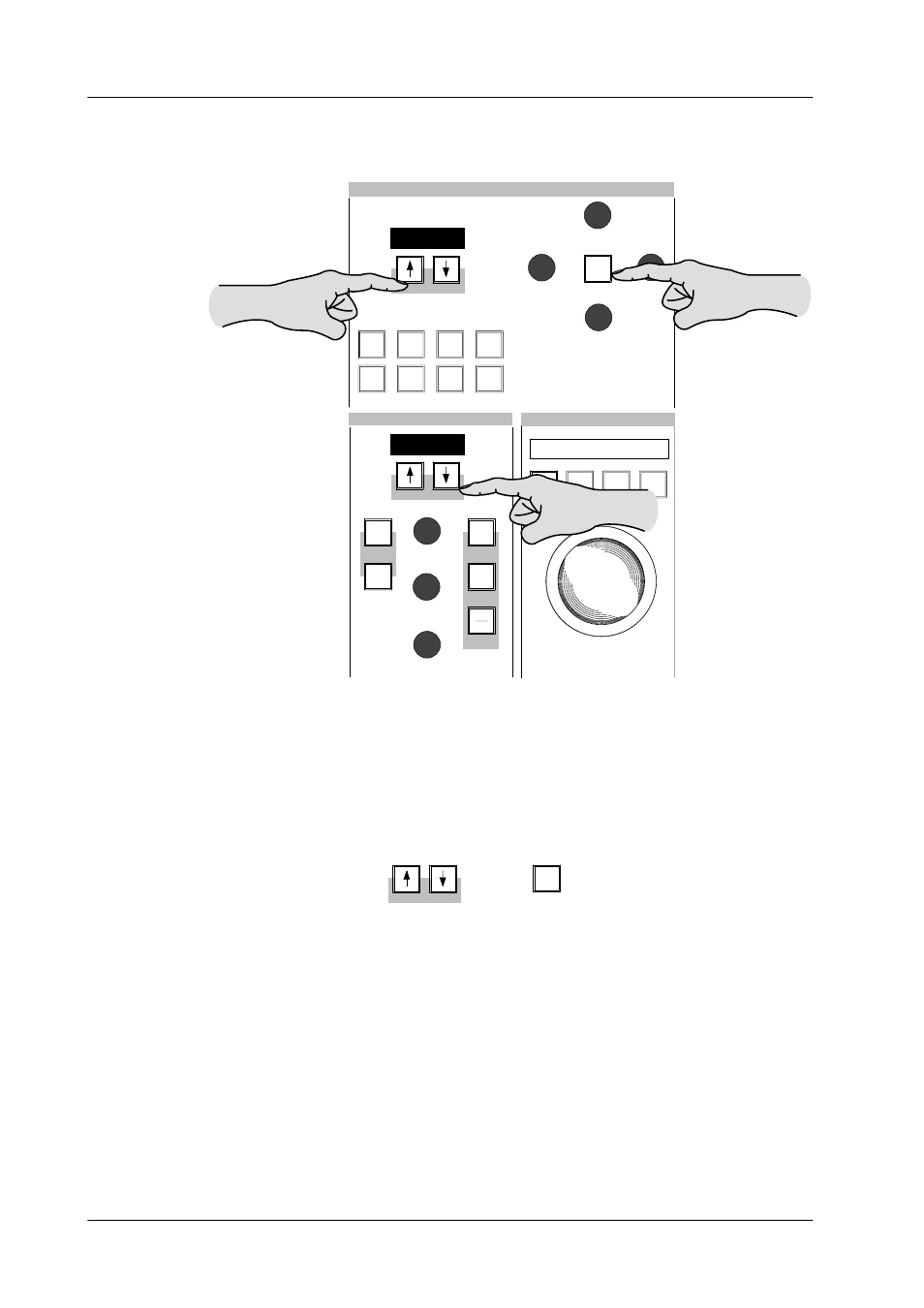

For starting and canceling the panel lamp and display test please press and hold
down the up/down buttons and then press the Mask Reset button.
Mattes panel
+ Mask
reset
The following test are selectable:
D
Test of the underlying display (OnAir, Uncal, ...)
Press the marked button near the display position to check the respective lamp
D
Special tests selectable in the P/P Program row:
Beep: Check the beeper
RedL: All red displays lights up
YelL: All yellow displays lights up
GrnL: All green displays lights up
