2.6 TRANSITION PANEL
The DD35 Production Switchers include a universal mixing level with a background
transition stage and two independent keyers.
With both keyers, Luminance and Linear Key mode can be enabled. The DynaCh-
rome keyer is an option per M/E including P/P.
The transition panels for the M/E1, M/E2 and M/E3 levels are set up identically. For
an ergonomic layout, the fader for the M/E2 and P/P level are arranged on the right-
hand side of the panel.

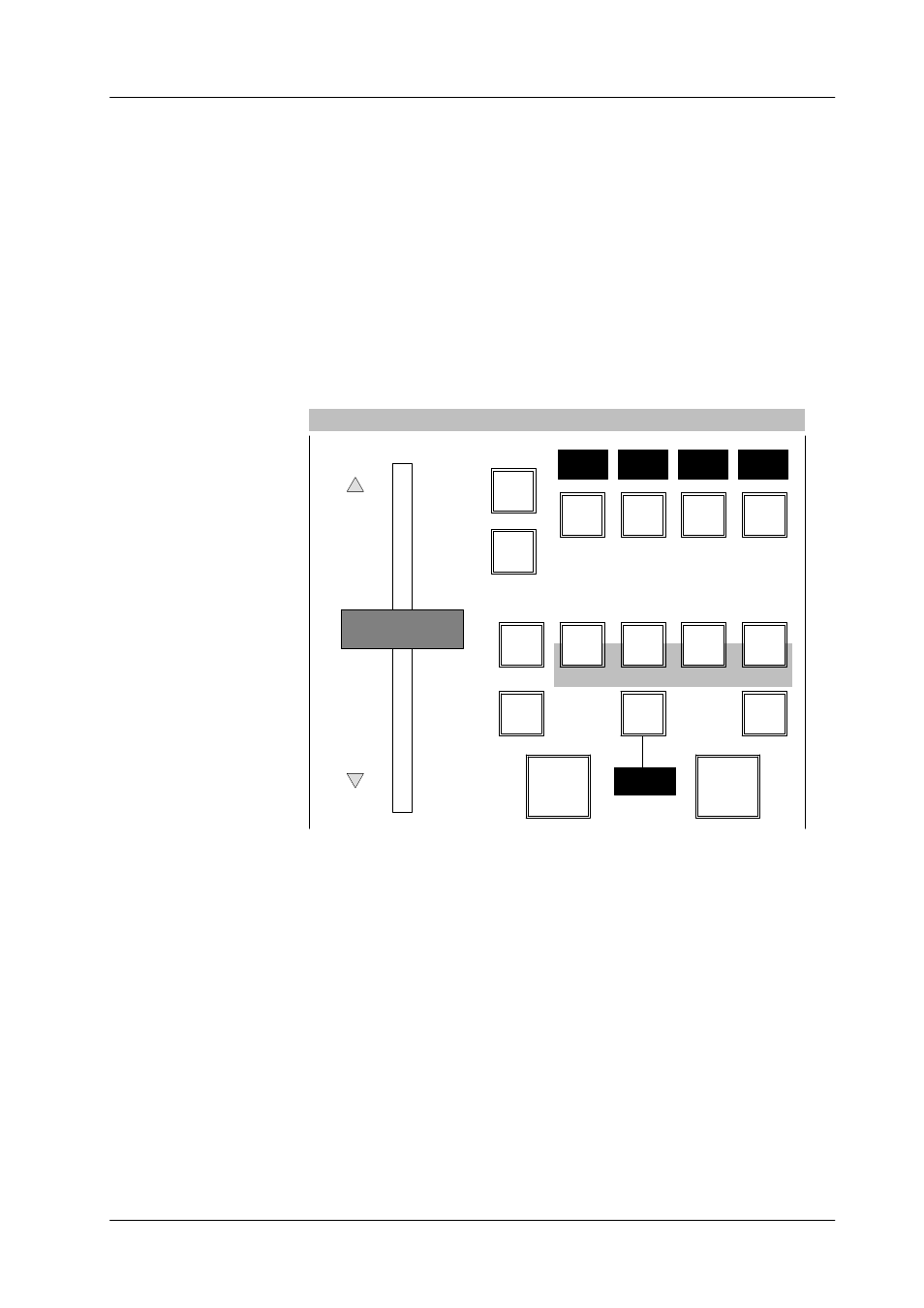

Example 1: RPD 35-4 Transition panel
Transition
Limit
set
Limit
on
BGD BGD Key
1
Key
2
On On On On
Fx
Layer Over Over
Wipe
2
Wipe
1
Loop DVE Mix
BLK
Pst
Trans
dur
Transition types
Trans
PVW
Auto
1 2 3 4
Cut
WP 1 WP 2 MIX WP 2
Fx Fx Fx
B B
B A
