3. Menu Operation
DD35 Production Switcher
3 – 225
Operating Instructions – Rev. 16 / 10.2001
At least one function other than –––, 2
nd
or 3
rd
must be programmed. Otherwise
the AUX-CP performs no action at all.
Since the CP-3020 Aux control panel module has only two delegation buttons,
Deleg 1 and Deleg 2 may be programmed with 2
nd
and 3
rd
. In this case, Deleg 3
defines the function of the AUX-CP. Deleg 4..6 can be ignored.
There are three modes:
D
when the Aux Control Panel is used for crosspoint selection of internal busses,
the sources can be assigned freely to the source selection buttons of the
AUX-CP. To do this, Assign changes the contents of the index card. See below.
D
using for crosspoint selection of external AUX busses
D
does not apply to the TiME Memo n and Make Memo functions. I.e., the left-
most source button selects register 0. Make Memo macro of Make Memo but-
ton 1 and so on.

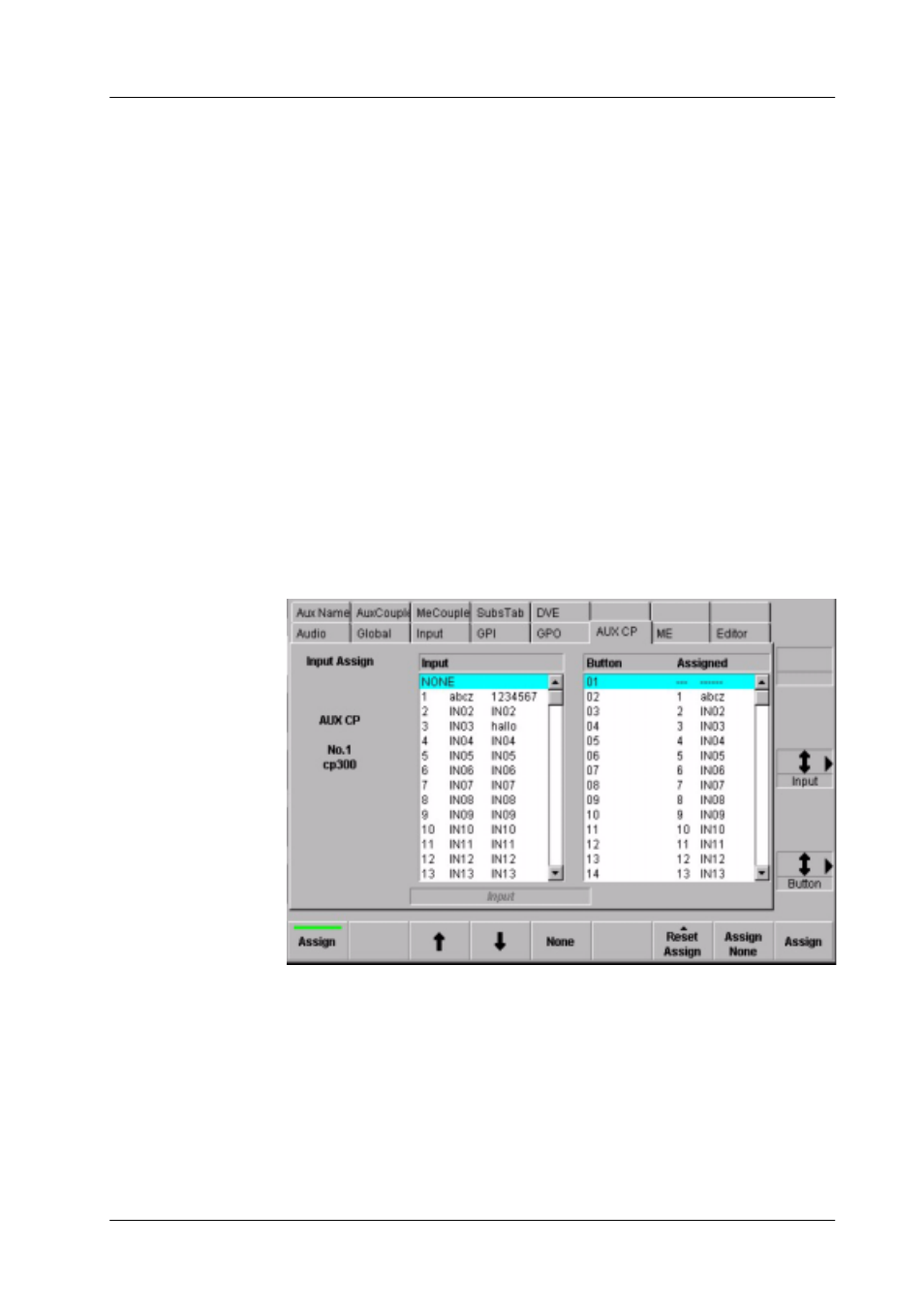

Input Assign (internal sources):
The procedure for input assignment is very similar to the input assignment for the
control panel.
Assign
