107
6
Measuring

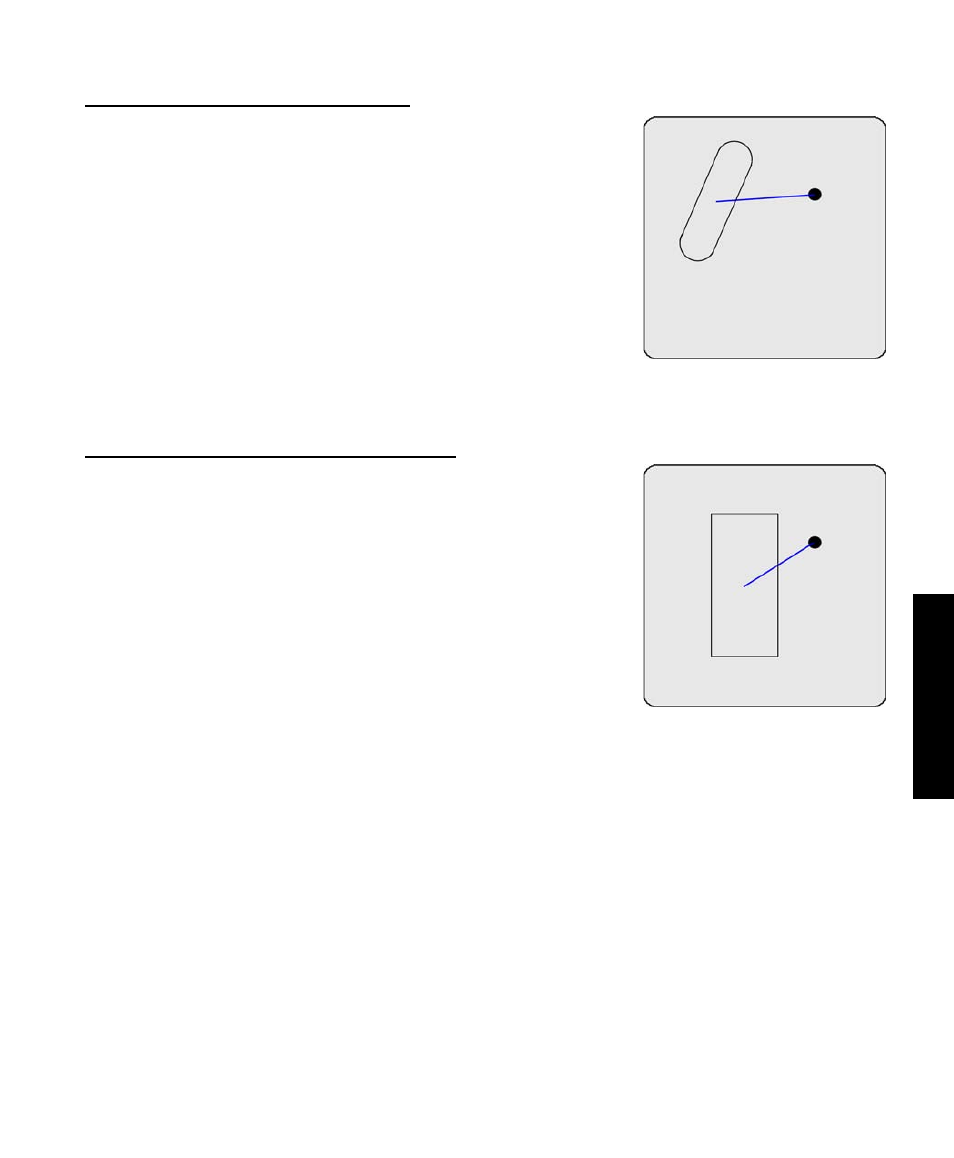

Line constructed from a point and a slot
The line will be constructed from the point to the center of the slot.
To construct a line from a point and a slot:
1 Touch the Measure line icon
2 Touch the point feature
3 Press the Enter key
4 Touch the slot feature
5 Press the Enter key
6 Press the Finish key
The line will be constructed to the center of the slot.
Line constructed from a point and a rectangle
The line will be constructed from the point to the center of the rect-
angle.
To construct a line from a point and a rectangle:
1 Touch the Measure line icon
2 Touch the point feature
3 Press the Enter key
4 Touch the rectangle feature
5 Press the Enter key
6 Press the Finish key
The line will be constructed to the center of the rectangle.
Constructing Features
