Creating a skew and datum (including a message)
Skew and datum operations are described in Chapter 6: Measuring. In this example, the bottom edge is
measured for skew compensation, the left edge is measured and the intersection point of the bottom and left
edge lines is zeroed in the X, Y and Z axes and used as a datum for subsequent measurements.
First, you may optionally create a message that prompts the user to perform the operations described above.
Press the Finish key to complete the message.
The details of skew and datum measurements are described in Chapter 6: Measuring. Measure the skew
and left side and then construct a zero datum point at the intersection of the two lines. Press the Video key
to return to the Video measure screen.

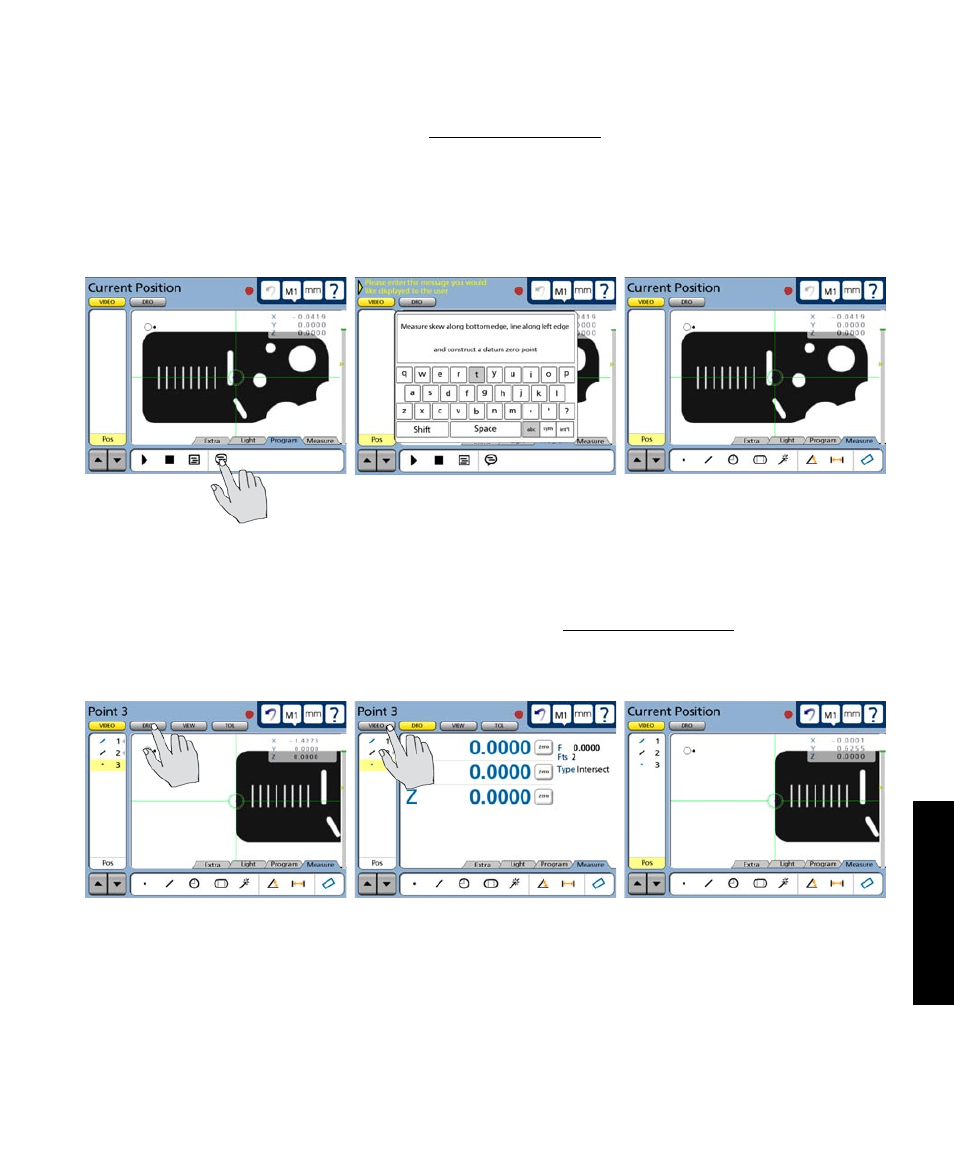

Touch the message icon... to include a user prompt message... then press the Finsh key to return
to a measurement screen
The skew and left edge are measured, then the datum is constructed. Then the Video screen is displayed
Creating a Skew and Datum
