50 QC-300 Series User’s Guide
When ring lights are selected,
touch the ring light icon again to
display individual ring right seg-
ments.
Any of the individual ring light segments can be turned on or off by touching them.
Touch the ring light icon again to display the adjustment slider.

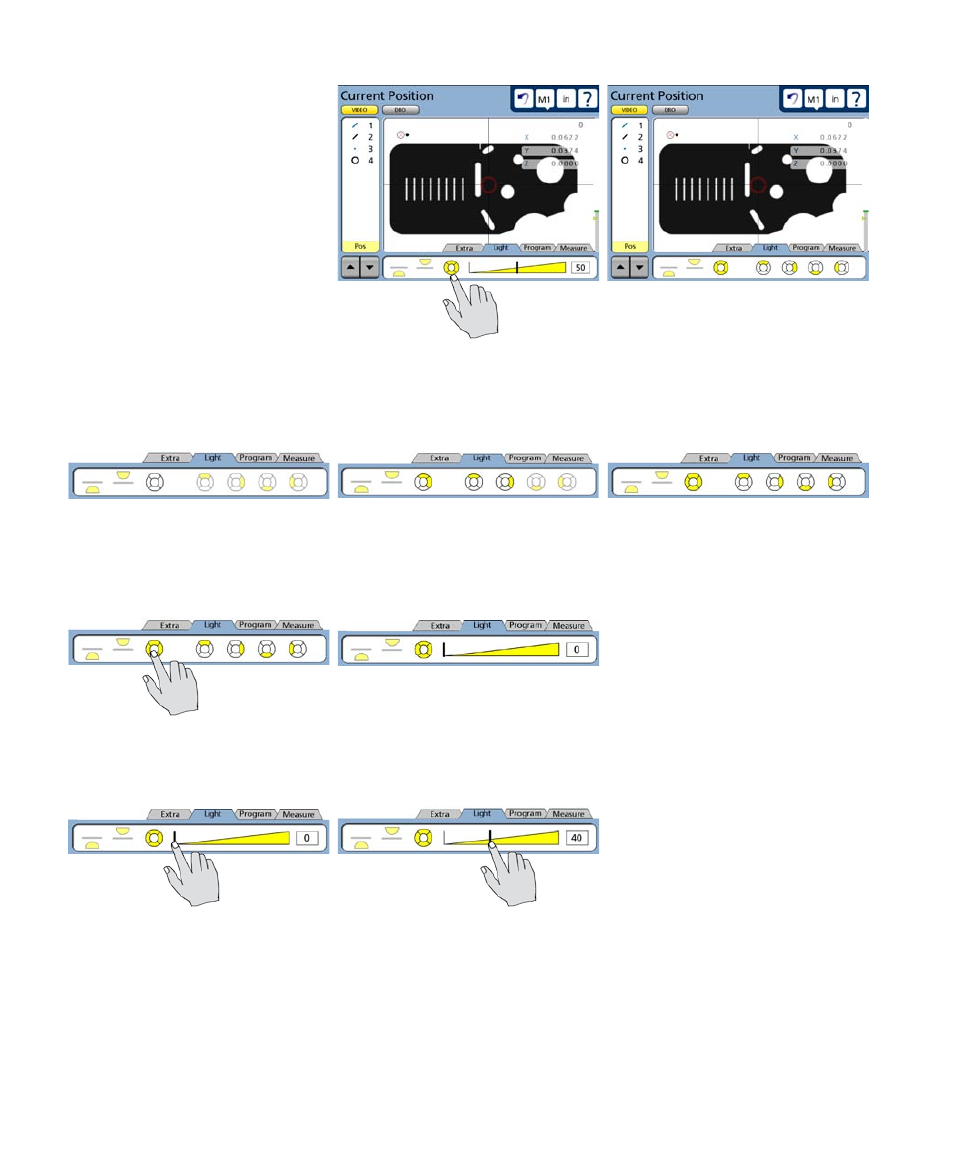

3 Touch and drag an adjustment slider to adjust the illumination of any light source. All light sources
are adjusted in this manner using its own slider.
Touch the ring light icon again... to show individual segments
All ring light segments are off Two ring light segments are on All ring light segments are on
Touch and drag the slider... to make light adjustments
