214 QC-300 Series User’s Guide
Size
Shapes, lines, text, text boxes and data boxes can be edited to change size.
Shapes, lines, text boxes and data boxes
The method used for changing the size of shapes, lines, text boxes and data boxes is identical. In this
example the size of a circle is changed. When the size of lines that include arrowheads are changed, the
size of the arrowhead changes in proportion to the change in line size. To edit size:

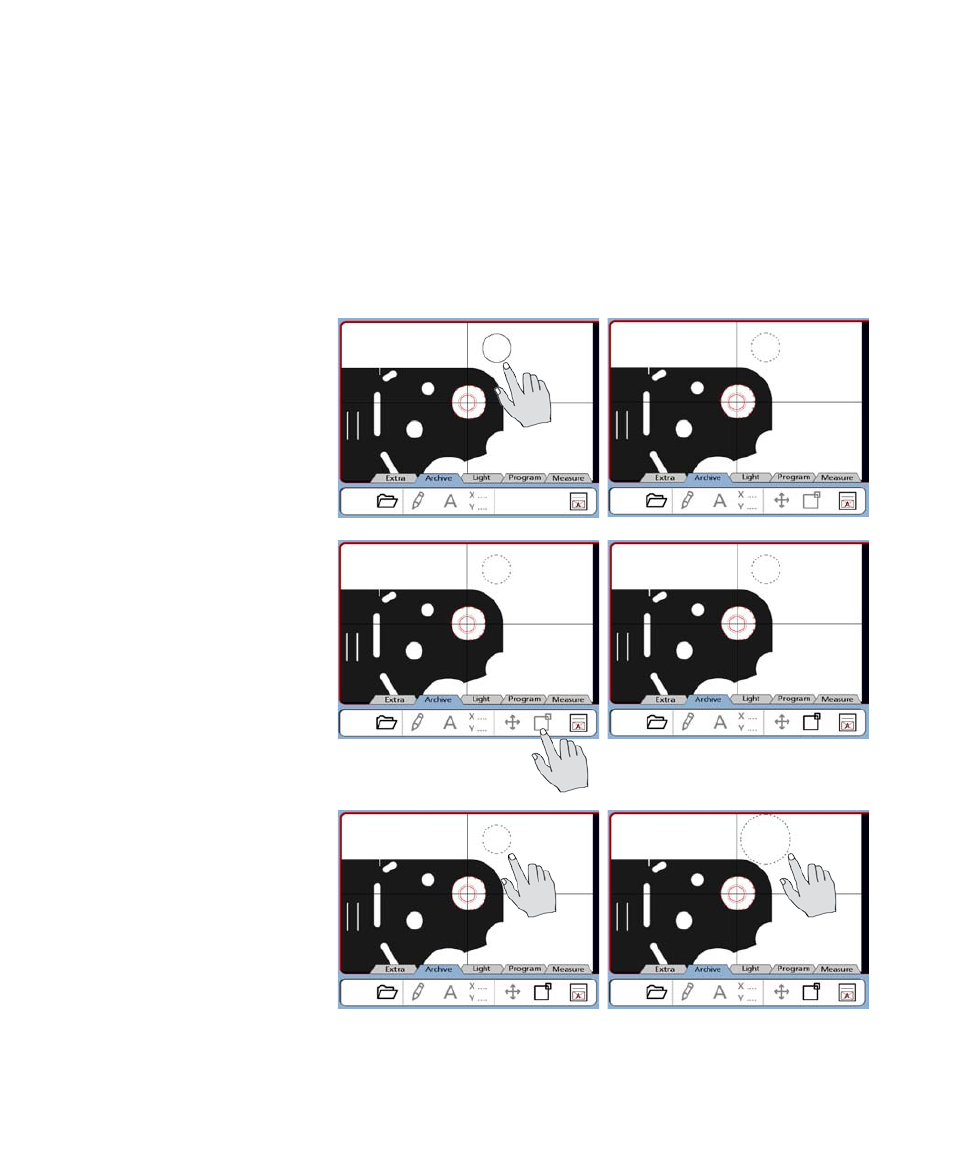

1 Select the desired item. In
this example a circle is selected.
2 Touch the size tool to enable
it. It will be displayed in bold
3 Touch the selected item and
drag your finger on the screen to
change its size.
