266 QC-300 Series User’s Guide
Enabling magnification change messages
Magnification levels are always changed manually by the user by:
• Selecting a new magnification by touching a value in the magnification drop-down list
• Manually bringing the new lens into the field of view

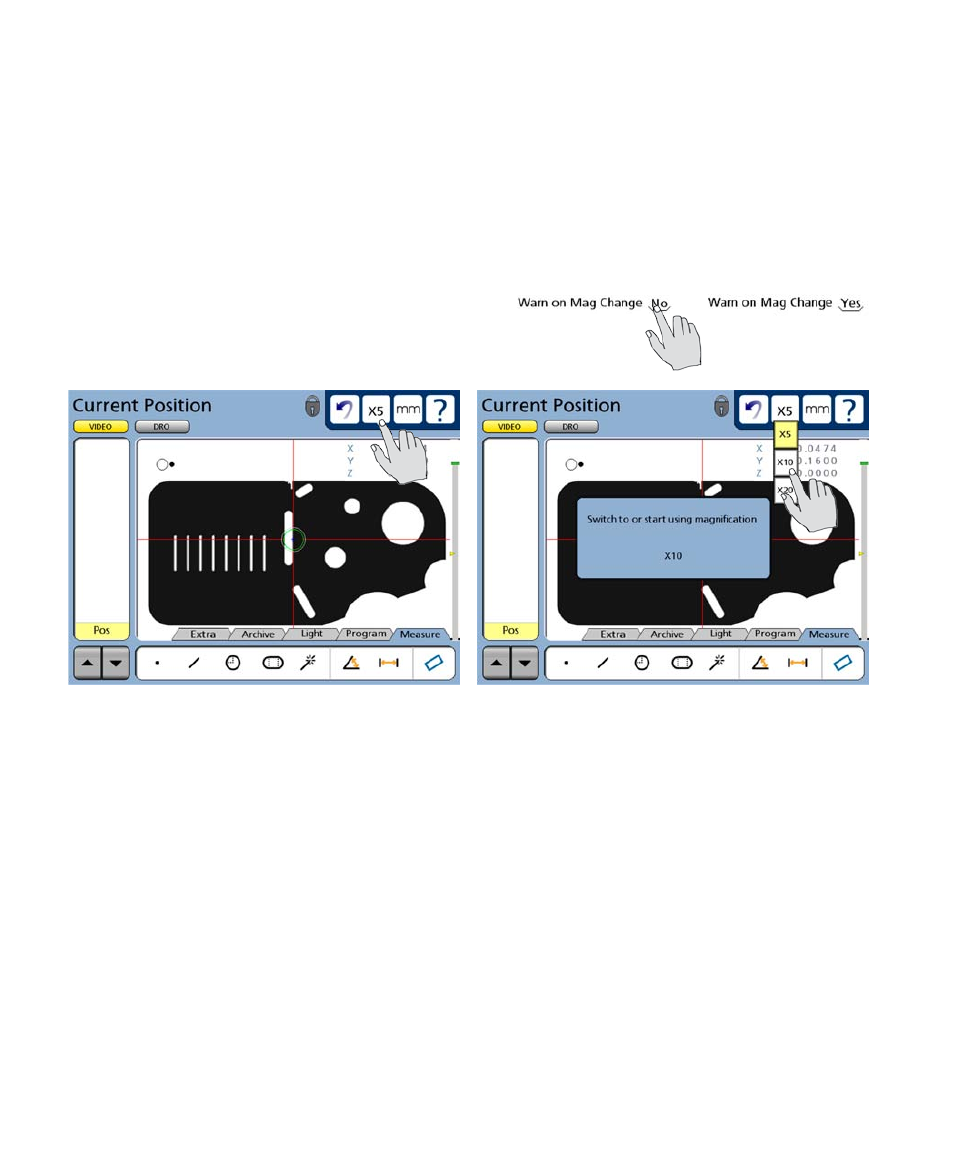

A reminder can be displayed on the QC-300 screen when a new magnification is selected if desired. En-
able the reminder message by touching the Warn on Mag Change choice field and toggling the choice to
Yes.
When magnification change messages are enabled... the user is reminded to change lenses when a new
magnification is selected
