User interface
Page 42

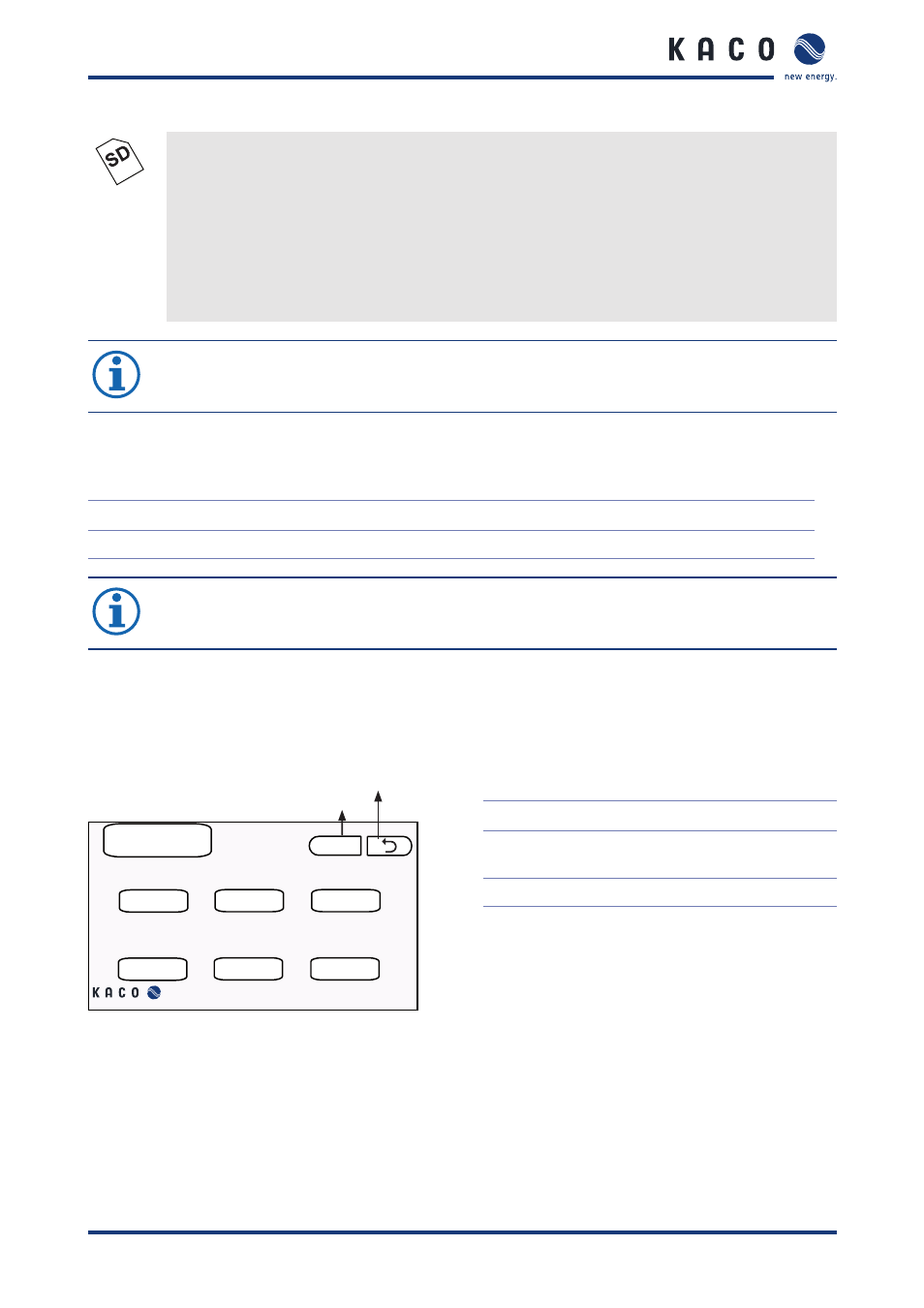

Operating Instructions Powador XP200-HV TL, XP250-HV TL, XP350-HV TL_EN
SAFE
Remove the SD card
“Data was saved to the SD card” icon
You can remove the SD card. The icon is displayed for one minute.
1. Shut down the inverter.
2. Open the inverter.
3. Remove the SD card by gently pressing and then releasing it. The SD card will pop out slightly.
You can now remove it.
4. Close the inverter and start it up.
NOTE
Do not remove the SD card until the SAFE icon is displayed so that it will be detected by the MMI
when you reinsert it.
8.3.2 Status display for speaker
ON
Audible signal when you press the LCD screen
OFF
No signal
NOTE
This setting does not affect the alarm tone that sounds when faults occur (see section 12 on
page 83).
8.4 MMI submenus
8.4.1 PV generator
String monitoring is activated
PV generator
Strings
70.8
701.0
101.0
Power (kW)
Voltage (V)
Current (A)
Cell Temp.
(°C)
Irr.
(W/m2)
Isolation R
(kΩ)
41.0
381.0
519.0
Return to next higher level
Buttons
Display
Meaning
Measured values
Current measured values for the
PV generator
Strings
String monitoring is activated
Figure 41: “PV generator” screen
