ACUS Quick Start Guide
Uncontrolled when printed © RISCO Group 23
12. Select AND or OR to
consider this criteria
along or separate with
the earlier criteria.

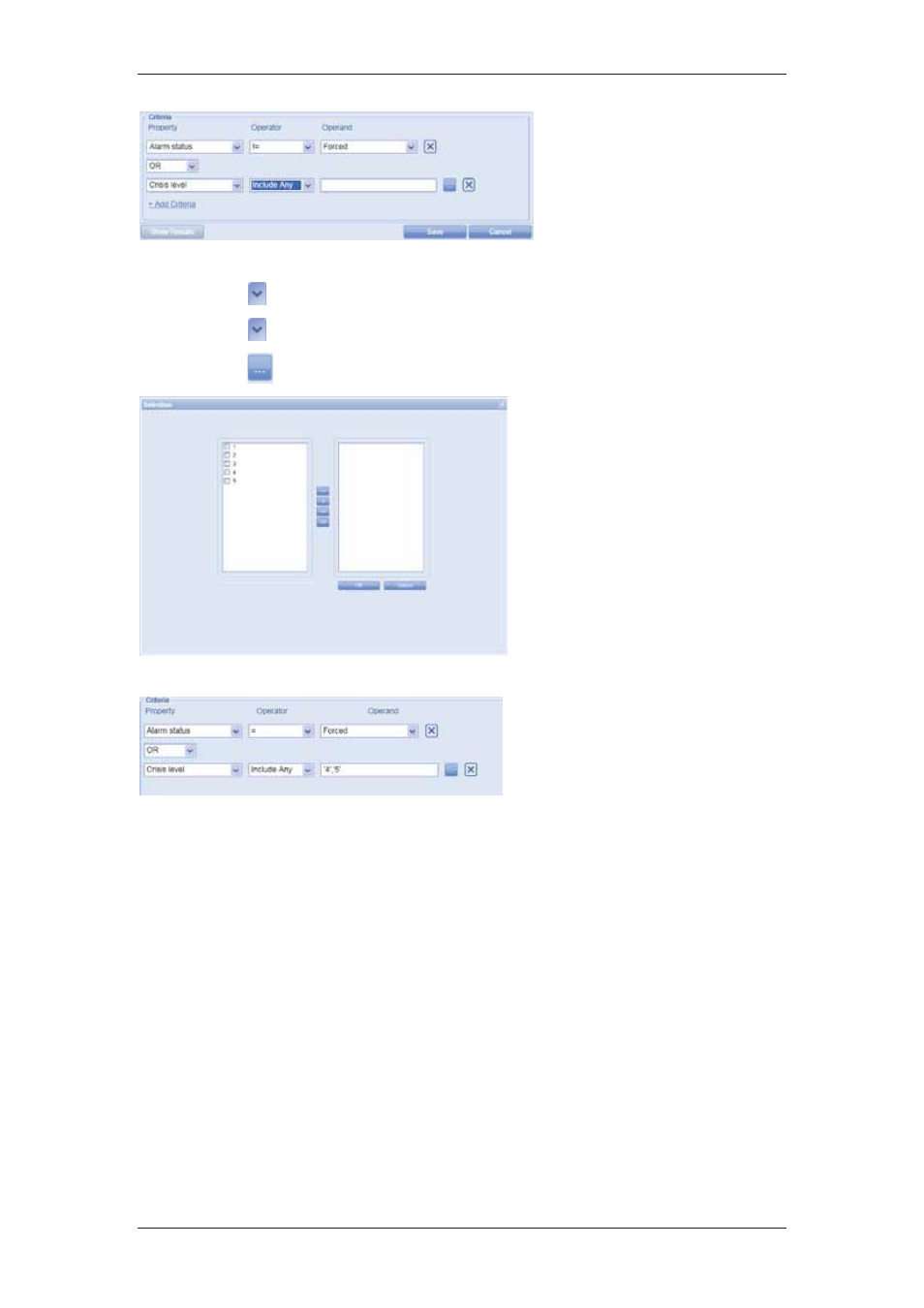

Figure 14: Add another Criteria
13. Click to select new property. Select Crisis Level.
14. Click to select new operator. Select Include Any.
15. Click The Selection dialog box appears.
16. Select the check boxes
against the crisis levels that
you require and move it to
the adjacent box.
17. Click OK. The selected
options are added to the
field.
18. Click Save. The message
appears, “Door Filter created
successfully”.
Figure 15: Crisis Level Selection
Figure 16: New Criteria Added
19. Once the filter is created,
click Show Results. The
results matching the
criteria’s added above to the
filter appear. For example, if
you have added the criteria
as Alarm Status = Forced or
Crisis Level as 4 and 5, then
the dialog box displays the
door names of the doors
which were forcibly opened
or were in Crisis Level 4 or
5.
