Steps

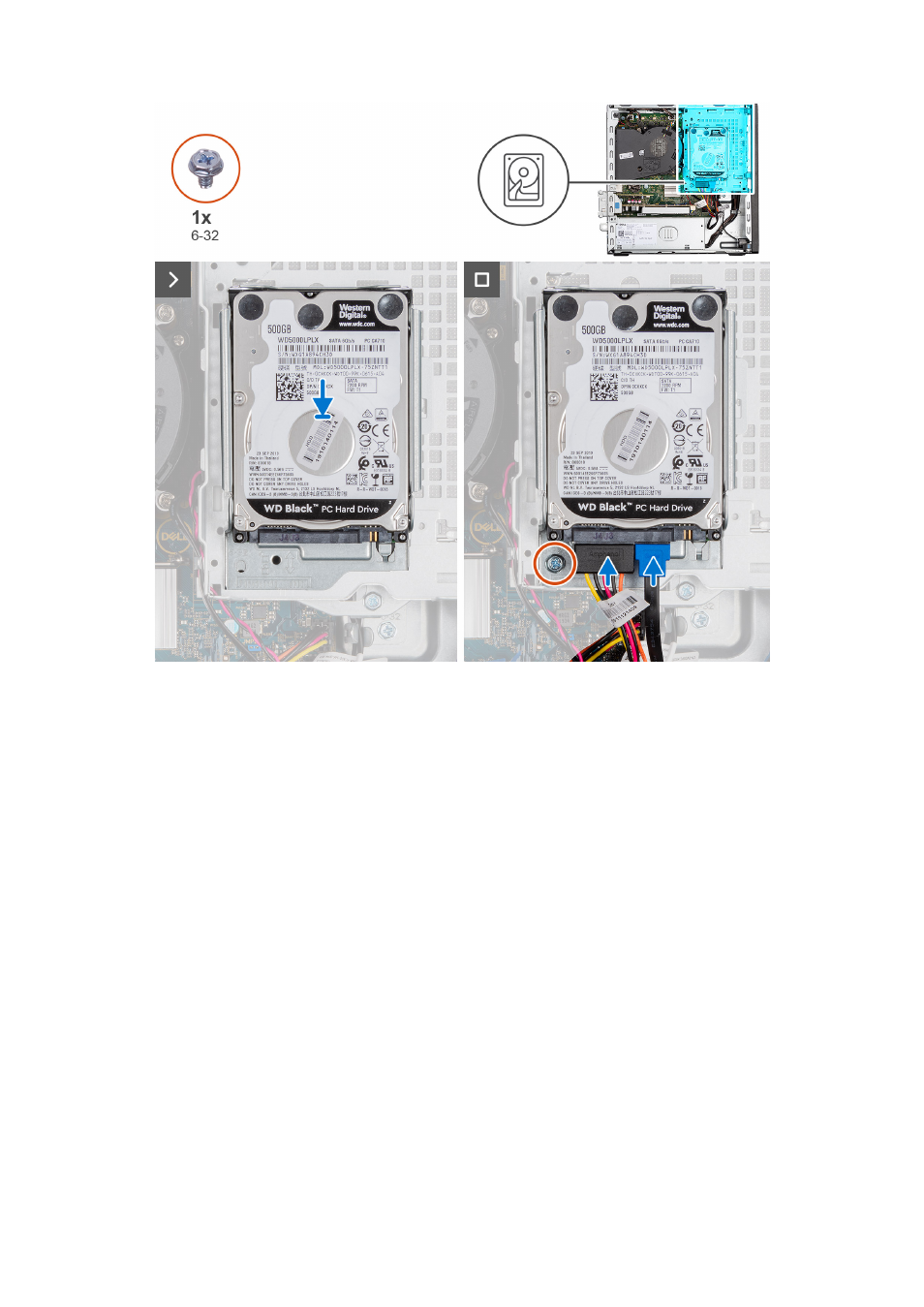

1. Insert and align the hard drive into the hard-drive carrier.
2. Replace the four screws (M3x3) that secure the hard drive to the hard-drive carrier.
3. Align the tabs on the hard-drive carrier with the slots on the chassis and snap the hard-drive carrier into place.
4. Replace the screw (#6-32) to secure the hard-drive carrier to the chassis.
5. Connect the data and power cables to the connectors on the hard drive.
Next steps
1. Install the side cover .
2. Follow the procedure in After working inside your computer .
3.5-inch hard drive
Removing the 3.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer .
2. Remove the side cover .
About this task
The following image indicates the location of the 3.5-inch hard-drive assembly and provide a visual representation of the
removal procedure.
