Installing the power-supply unit
CAUTION:
The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

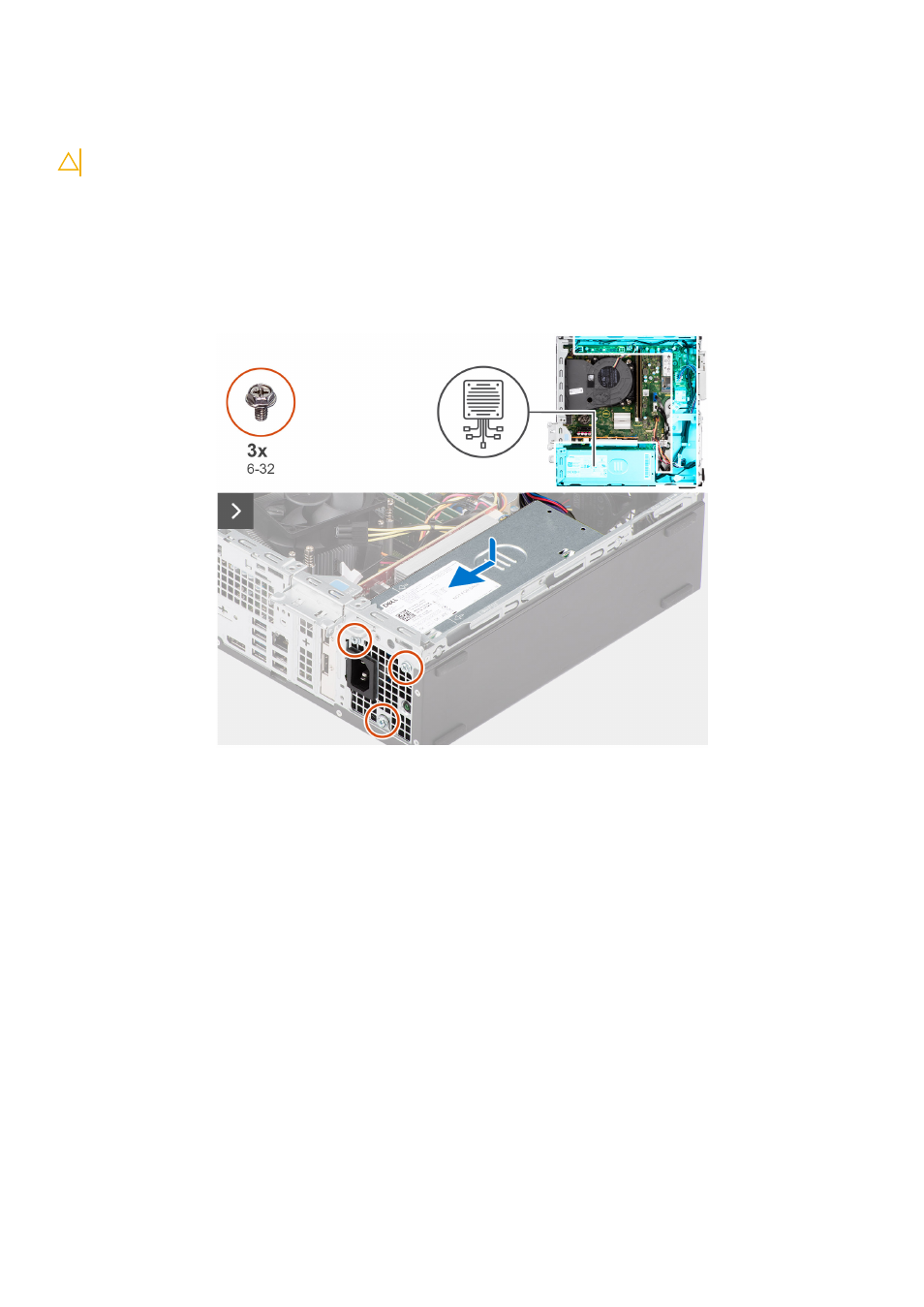

The following image indicates the location of the power-supply unit and provides a visual representation of the installation
procedure.
76
Removing and installing Field Replaceable Units (FRUs)
