2. Push and hold the securing tab on the graphics-card slot and lift the graphics card from the graphics-card slot
Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

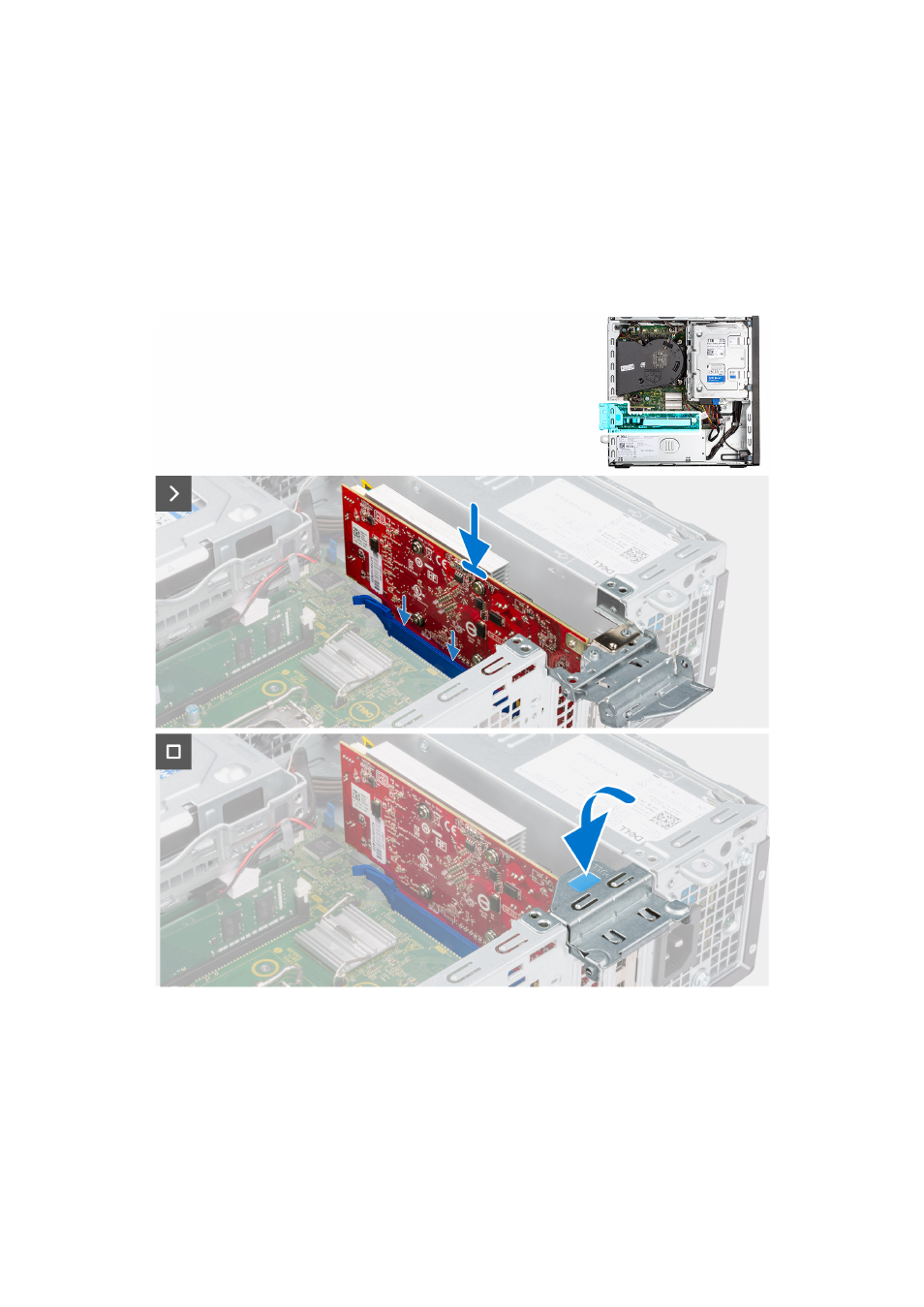

The following image indicates the location of the graphics card and provides a visual representation of the installation procedure.
Steps
1. Align the graphics card with the connector on the system board.
2. Using the alignment post, connect the card in the connector and press down firmly. Ensure that the card is firmly seated.
3. Close the PCIe latch to secure the graphics card in the slot.
Next steps
1. Install the
.
2. Install the
if applicable.
Removing and installing Customer Replaceable Units (CRUs)
